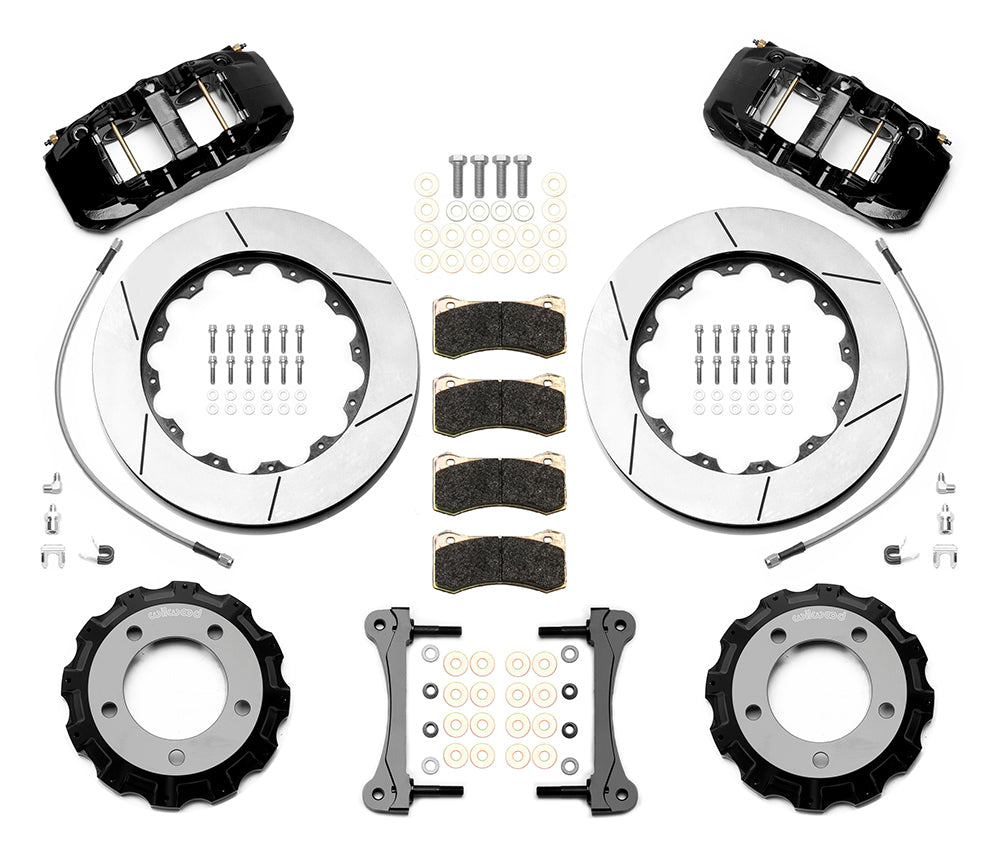

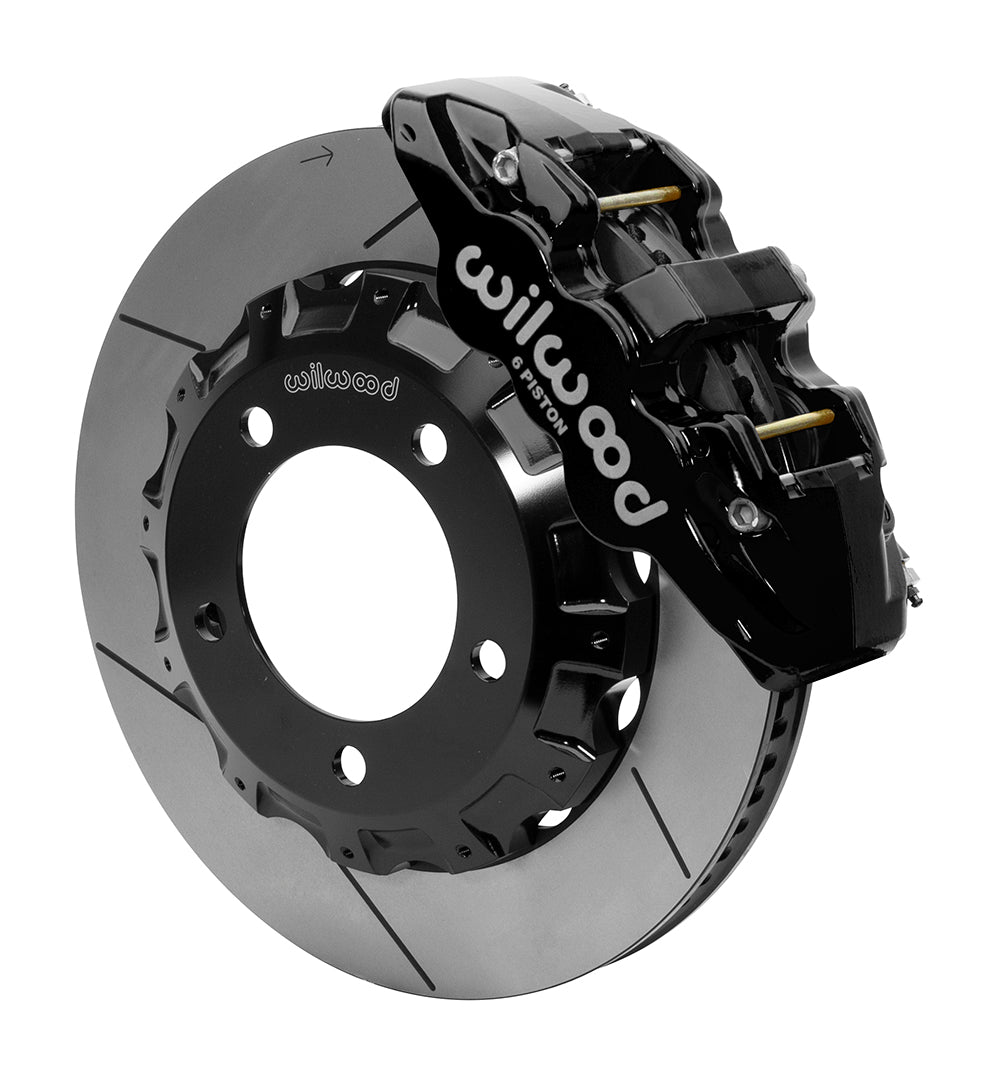

Wilwood Black AERO6 Front Brake Kit with 14.25-Inch Spec37 GT Rotors for Listed Toyota/Lexus Truck and SUV Applications

Black AERO6 calipers and GT rotors suit listed Toyota/Lexus front axles. Year ranges differ; 2012 Land Cruiser/LX 570 is not listed. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15473
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 14.25 in; 361.95 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 5.91 in; 5 x 150.11 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.240 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: AERO6-DS
• Pad compound: BP-20
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No

Fitment & Compatibility

The front table specifies Tundra for 2007–2015; Land Cruiser J200 and Lexus LX 570 for 2008–2011 and 2013–2015; and Sequoia for 2008–2022. The 2012 Land Cruiser/LX 570 gap is retained; do not fill it by inference. Six-piston dust-sealed AERO6 calipers use BP-20 pads and 14.25 × 1.25-inch Spec37 GT rotors with separate aluminum hats. The listed wheel pattern is 5 × 5.91 inches. Front hose kit 220-15888 is included. Check the exact hub/upright and wheel template, using 18 inches only as minimum wheel-diameter guidance.

Listed models: Tundra; LX570; Land Cruiser; Sequoia. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
