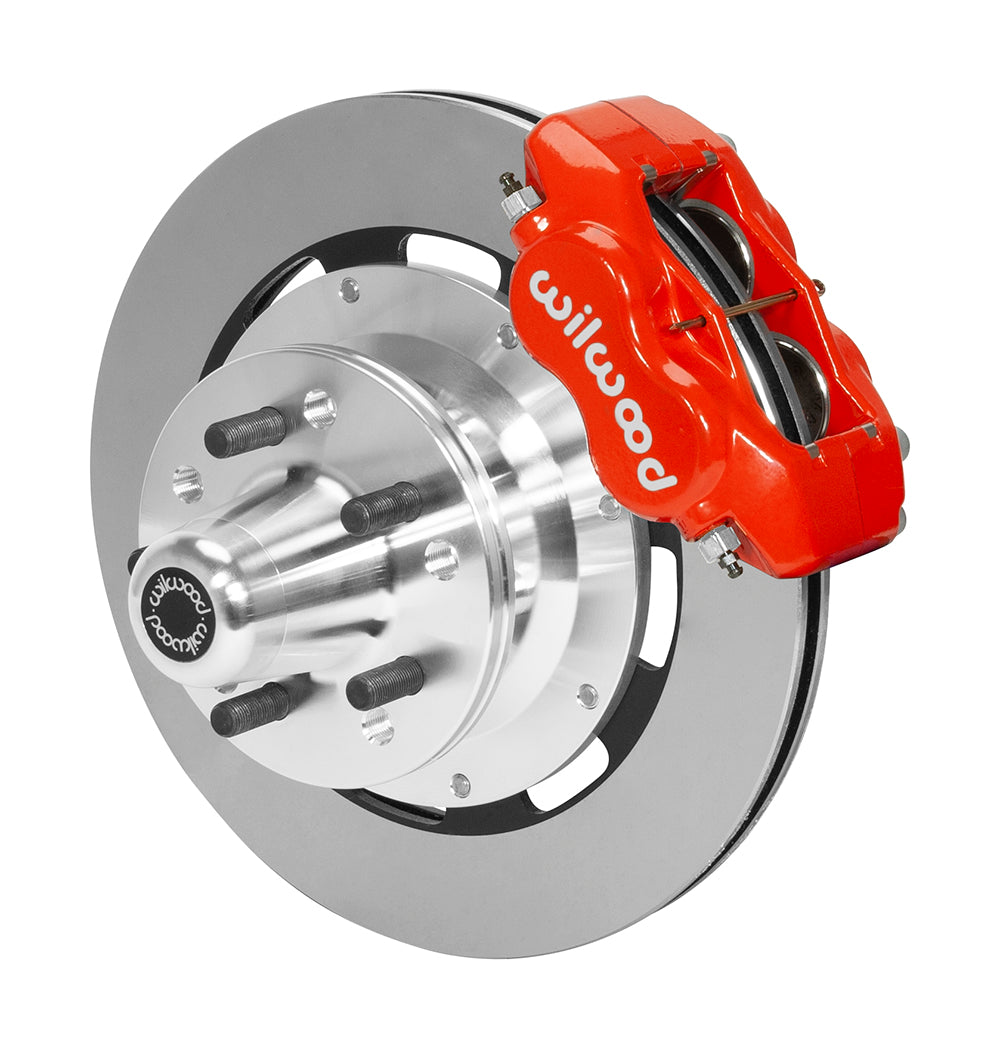

Wilwood 12.19-Inch Plain Front Rotor and Hub Kit with Red Dynalite Calipers for Selected 1973–1989 Mopars

Red four-piston calipers and plain rotors suit listed Mopar front spindles. Hubs retain the stock wheel-face position; hoses are separate. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15468-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V

Fitment & Compatibility

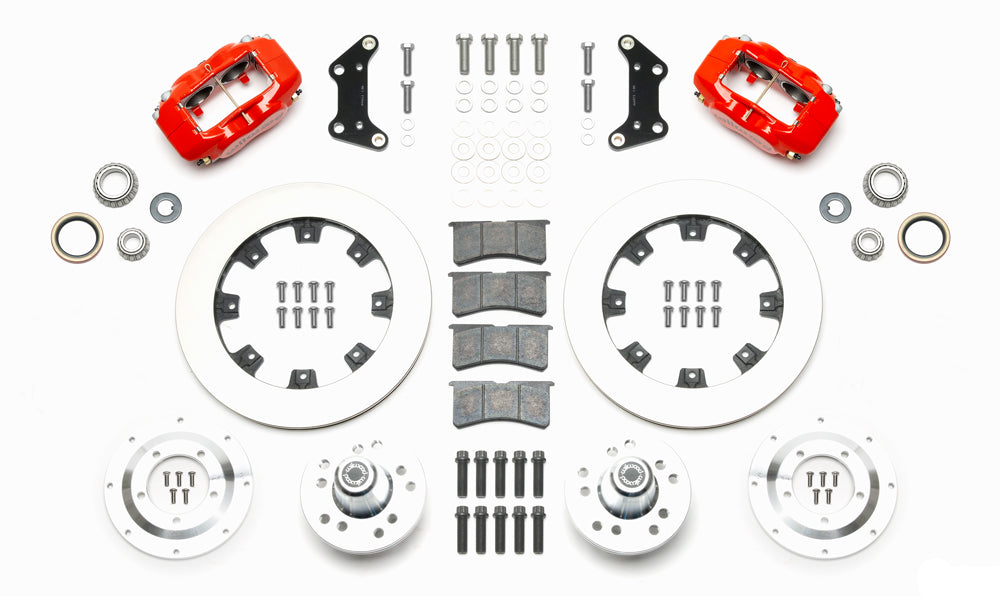

Use the exact listed Mopar disc-spindle configuration, with each model's 1973–1989 year limits and exceptions. The table distinguishes Charger production timing, excludes Gran Fury or Royal Monaco where stated, and limits the 1985 Caravelle to rear-wheel drive. Broad model/year labels cannot replace that spindle check. This version has 12.19 × 0.81-inch vented rotors, four-piston Dynalite calipers and aluminum hubs with bearings, seals and 1/2-20 studs. Wheel patterns are 5 × 4.50 and 5 × 4.75 inches, with the original wheel-face location retained. Hydraulic flexlines are separate; verify the 220-8307 reference and actual route. Any master-cylinder mounting conversion is a separate operation needing the appropriate adapter. Check the 15-inch guidance against the wheel-clearance drawing.

Listed models: Challenger; Charger; Coronet; Dart; Barracuda; Cuda; Duster; Roadrunner; Satellite; Scamp; Valiant; Cordoba; Fury; Aspen; Volare; Lebaron; Diplomat; Monaco; Magnum; New Yorker; Newport; St. Regis; Mirada; Imperial; Caravelle; Fifth Avenue. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
