Wilwood Red Dynalite Front Package for Listed Later Mopar Disc Spindles with 12.19-Inch Drilled Rotors

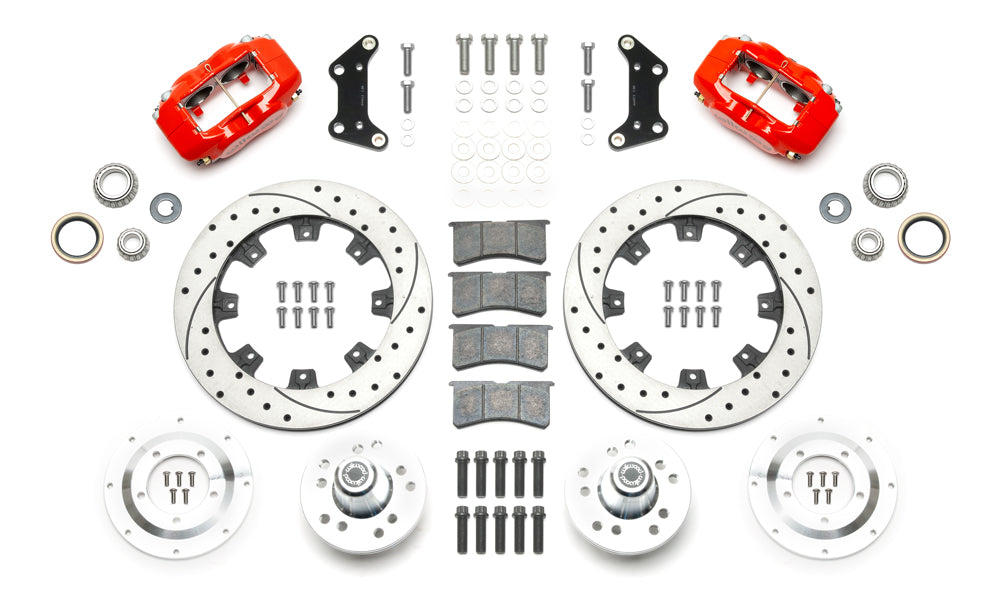

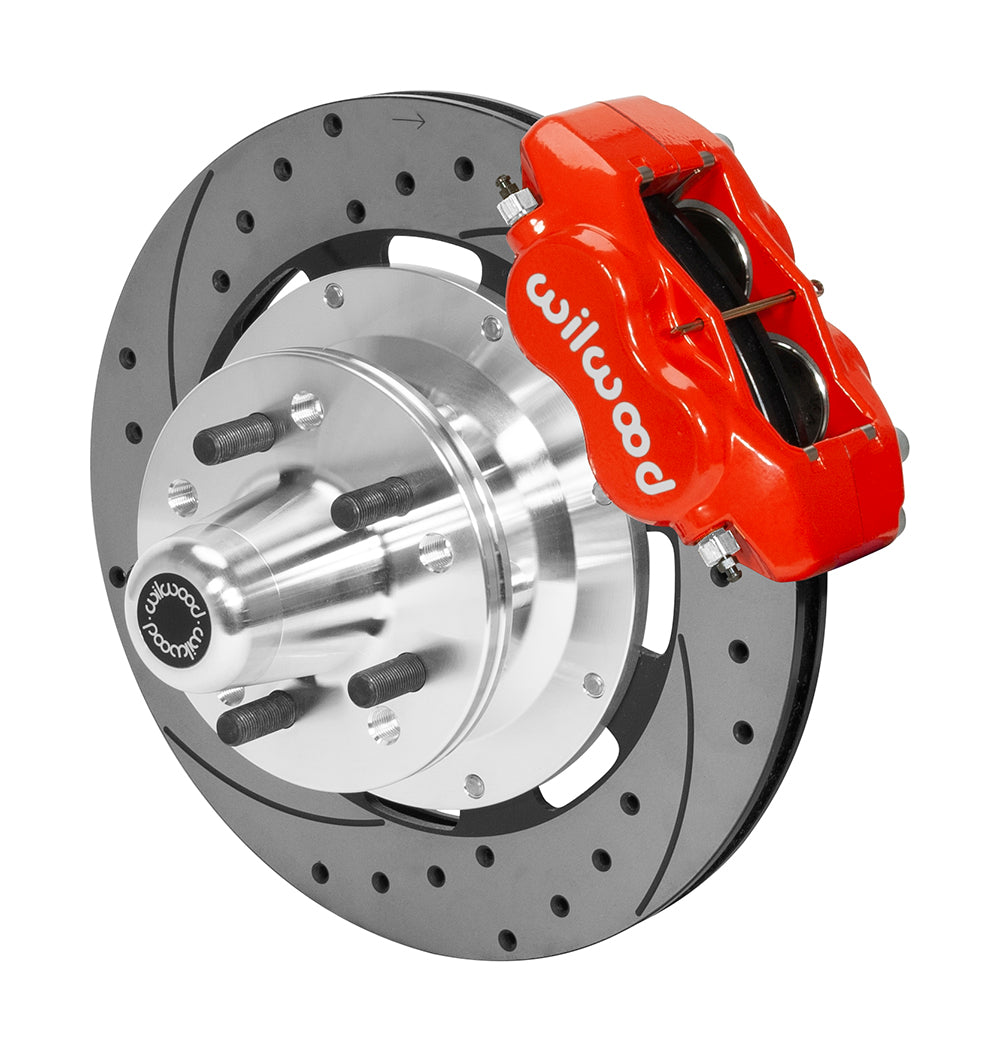

Red Dynalite calipers, drilled 12.19-inch rotors and hubs form this front kit. Verify Mopar production-date limits and the correct disc spindle. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15468-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10

Fitment & Compatibility

Use the exact listed Mopar disc-spindle configuration, with each model's 1973–1989 year limits and exceptions. The table distinguishes Charger production timing, excludes Gran Fury or Royal Monaco where stated, and limits the 1985 Caravelle to rear-wheel drive. Broad model/year labels cannot replace that spindle check. This version has 12.19 × 0.81-inch vented rotors, four-piston Dynalite calipers and aluminum hubs with bearings, seals and 1/2-20 studs. Wheel patterns are 5 × 4.50 and 5 × 4.75 inches, with the original wheel-face location retained. Hydraulic flexlines are separate; verify the 220-8307 reference and actual route. Any master-cylinder mounting conversion is a separate operation needing the appropriate adapter. Check the 15-inch guidance against the wheel-clearance drawing.

Listed models: Challenger; Charger; Coronet; Dart; Barracuda; Cuda; Duster; Roadrunner; Satellite; Scamp; Valiant; Cordoba; Fury; Aspen; Volare; Lebaron; Diplomat; Monaco; Magnum; New Yorker; Newport; St. Regis; Mirada; Imperial; Caravelle; Fifth Avenue. See the supplied table below for each year, submodel and equipment condition.
