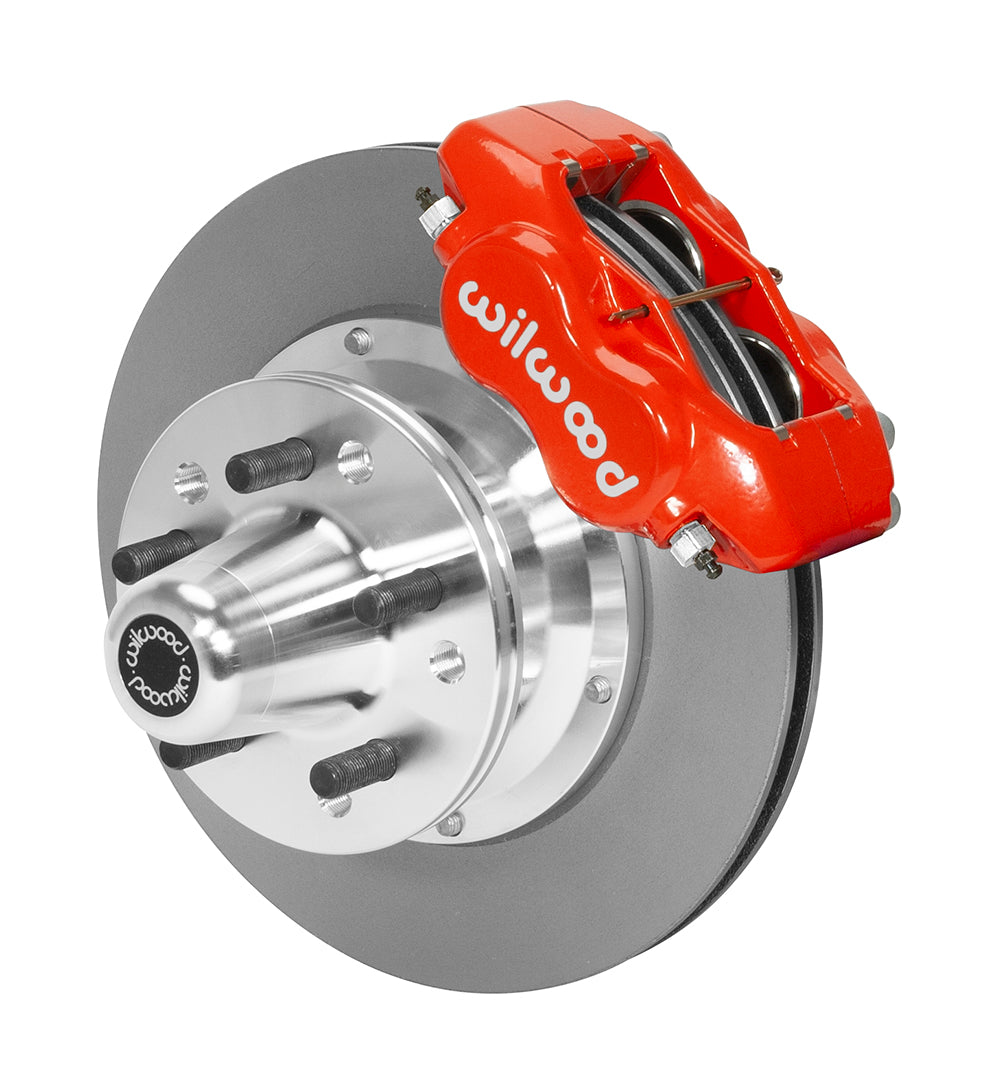

Wilwood Plain 11-Inch Front Brake Package for Later Mopar Spindles with Red Dynalite Calipers and Hubs

Red calipers and plain vented rotors suit the listed later Mopar spindles. Review Charger production dates and model-specific exclusions. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15465-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 30 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No

Fitment & Compatibility

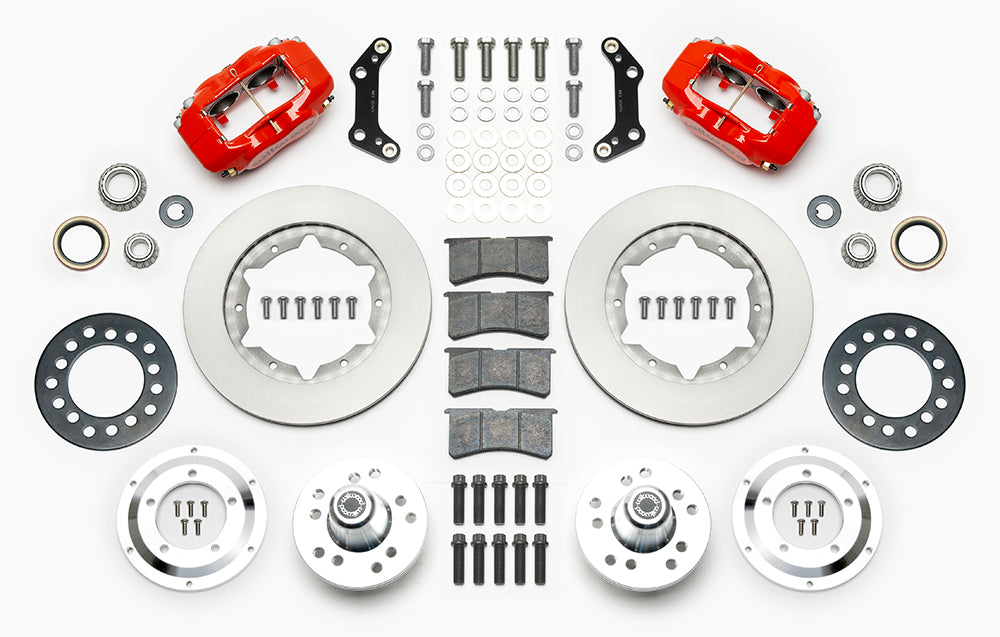

The listed applications require specific later Mopar factory disc spindles across selected 1973–1989 models. Preserve Charger production-date distinctions, Fury versus Gran Fury and Monaco versus Royal Monaco exclusions. The 1985 Caravelle entry is rear-wheel drive only. Verify the actual A/B/E/F/J-type spindle rather than selecting by year alone. Dynalite four-piston calipers and 11.00 × 0.81-inch rotors mount with included aluminum hubs, bearings, seals and 1/2-20 studs. Dual 5 × 4.50/4.75-inch hubs retain the original wheel-face position. Flexlines are separate, including the listed 220-8307 reference where appropriate. A separate master-cylinder change may require the unsupplied mounting adapter. Use the template with nominal 14-inch wheel guidance.

Listed models: Challenger; Charger; Coronet; Dart; Barracuda; Cuda; Duster; Roadrunner; Satellite; Scamp; Valiant; Cordoba; Fury; Aspen; Volare; Lebaron; Diplomat; Monaco; Magnum; New Yorker; Newport; St. Regis; Mirada; Imperial; Caravelle; Fifth Avenue. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
