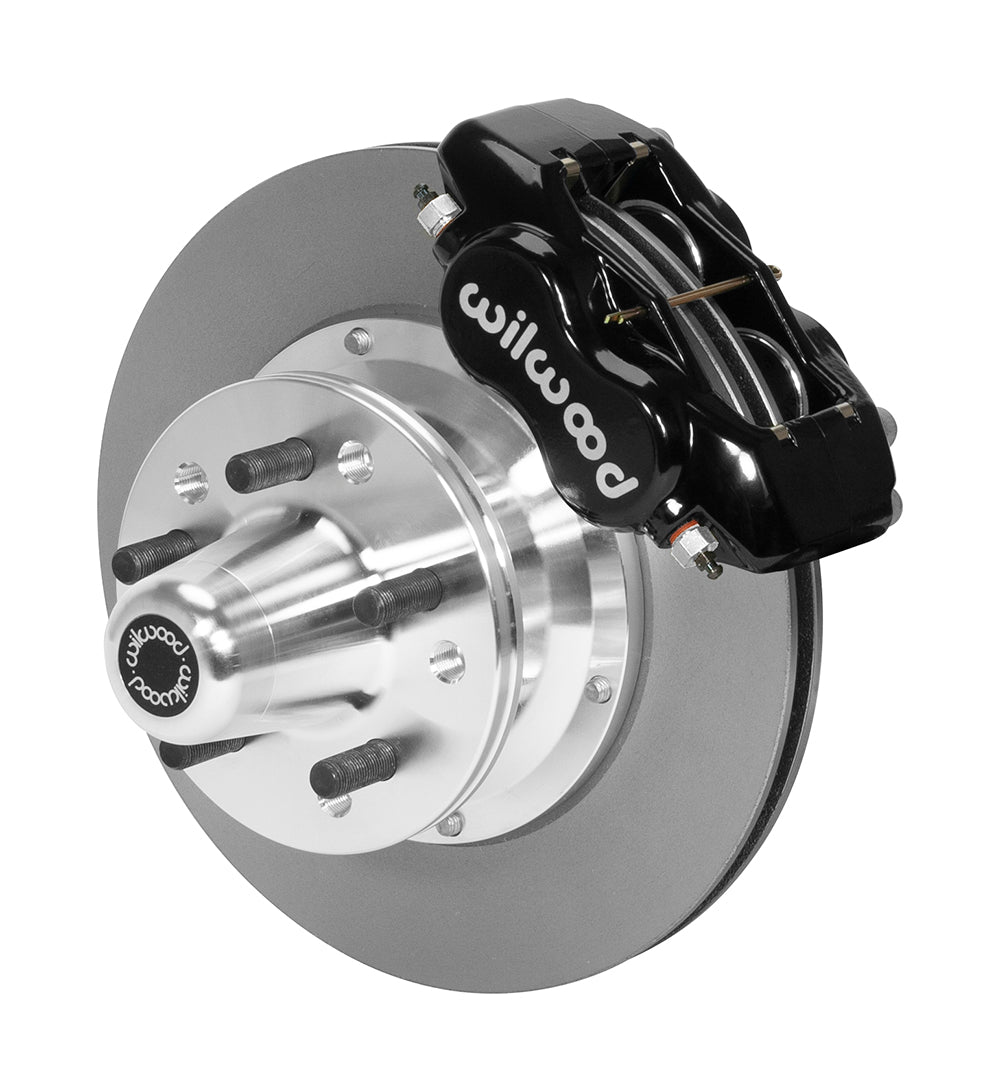

Wilwood Black Dynalite Front Brake Kit for Listed 1973–1989 Mopar Disc Spindles, 11-Inch Plain Rotors

Black Dynalite calipers, plain rotors and hubs suit listed later Mopar spindles. Verify the model, production-date and rear-wheel-drive limits. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15465
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 30 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes

Fitment & Compatibility

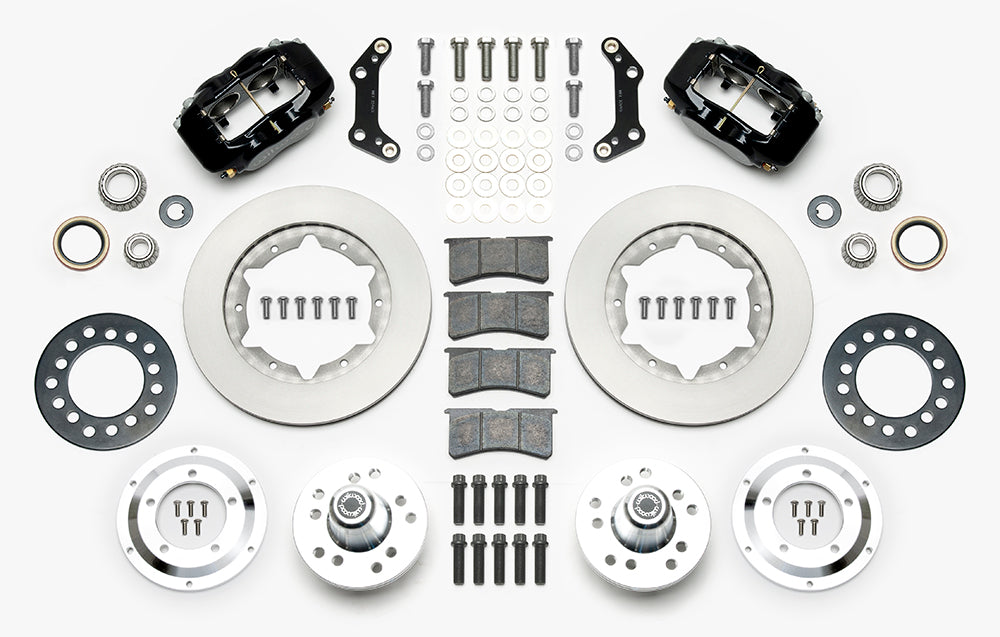

The listed applications require specific later Mopar factory disc spindles across selected 1973–1989 models. Preserve Charger production-date distinctions, Fury versus Gran Fury and Monaco versus Royal Monaco exclusions. The 1985 Caravelle entry is rear-wheel drive only. Verify the actual A/B/E/F/J-type spindle rather than selecting by year alone. Dynalite four-piston calipers and 11.00 × 0.81-inch rotors mount with included aluminum hubs, bearings, seals and 1/2-20 studs. Dual 5 × 4.50/4.75-inch hubs retain the original wheel-face position. Flexlines are separate, including the listed 220-8307 reference where appropriate. A separate master-cylinder change may require the unsupplied mounting adapter. Use the template with nominal 14-inch wheel guidance.

Listed models: Challenger; Charger; Coronet; Dart; Barracuda; Cuda; Duster; Roadrunner; Satellite; Scamp; Valiant; Cordoba; Fury; Aspen; Volare; Lebaron; Diplomat; Monaco; Magnum; New Yorker; Newport; St. Regis; Mirada; Imperial; Caravelle; Fifth Avenue. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
