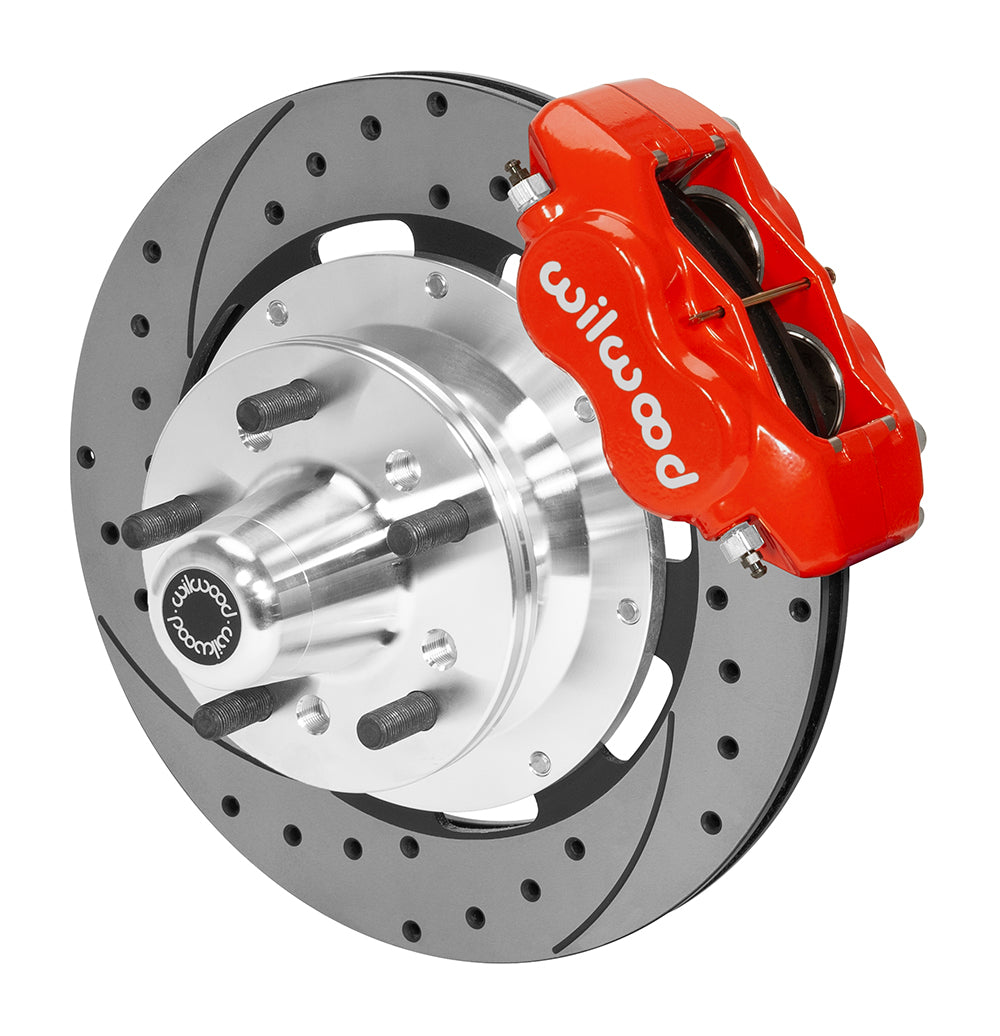

Wilwood Red Dynalite 12.19-Inch Drilled Front Brakes for Selected 1965–1972 Mopar A-Body Models

Red Dynalite calipers pair with drilled 12.19-inch rotors on specified factory disc spindles. Check the original 5-on-4.50 lug-pattern condition. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15461-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified hydraulic components: 220-7056; 220-8307
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10

Fitment & Compatibility

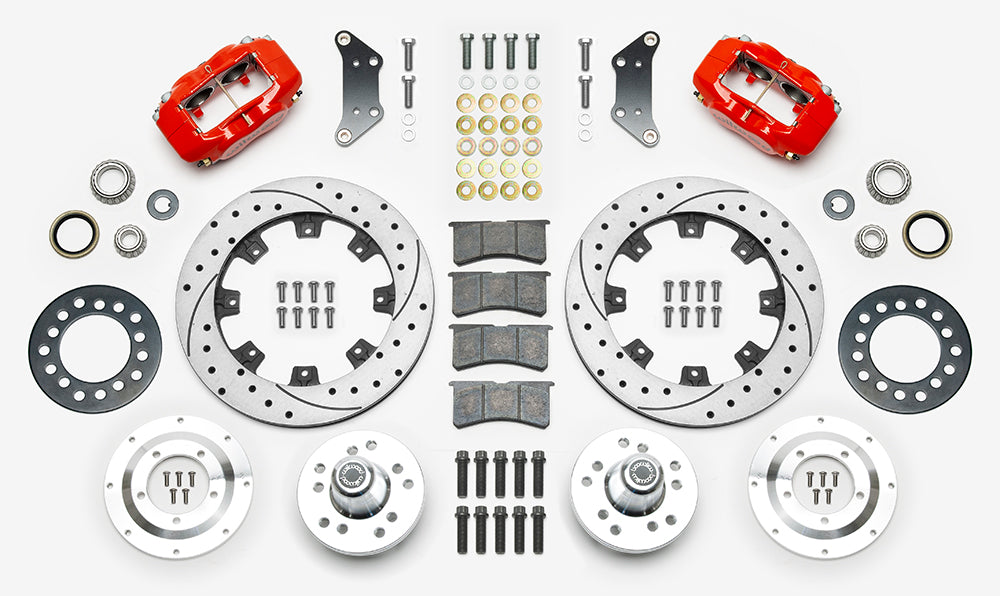

These 12.19 × 0.81-inch front brakes require the documented early Mopar A-body factory disc spindle. The selected years differ by model: Barracuda coverage ends in 1969, while Duster and Scamp start later than Dart/Valiant. DS-1300 states the original five-on-4.50-inch lug-pattern condition; inspect the actual spindle/hub arrangement before ordering. Aluminum hubs, bearings, seals and 1/2-20 studs are included and provide dual 5 × 4.50/4.75-inch wheel patterns. Hoses are separate; select the documented line option for the actual fittings and routing. Any separately installed two-bolt master cylinder may need the required four-bolt mounting adapter, which Wilwood does not supply. Check the wheel drawing even where a 15-inch wheel is nominally allowed.

Listed models: Dart; Barracuda; Valiant; Duster; Scamp. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
