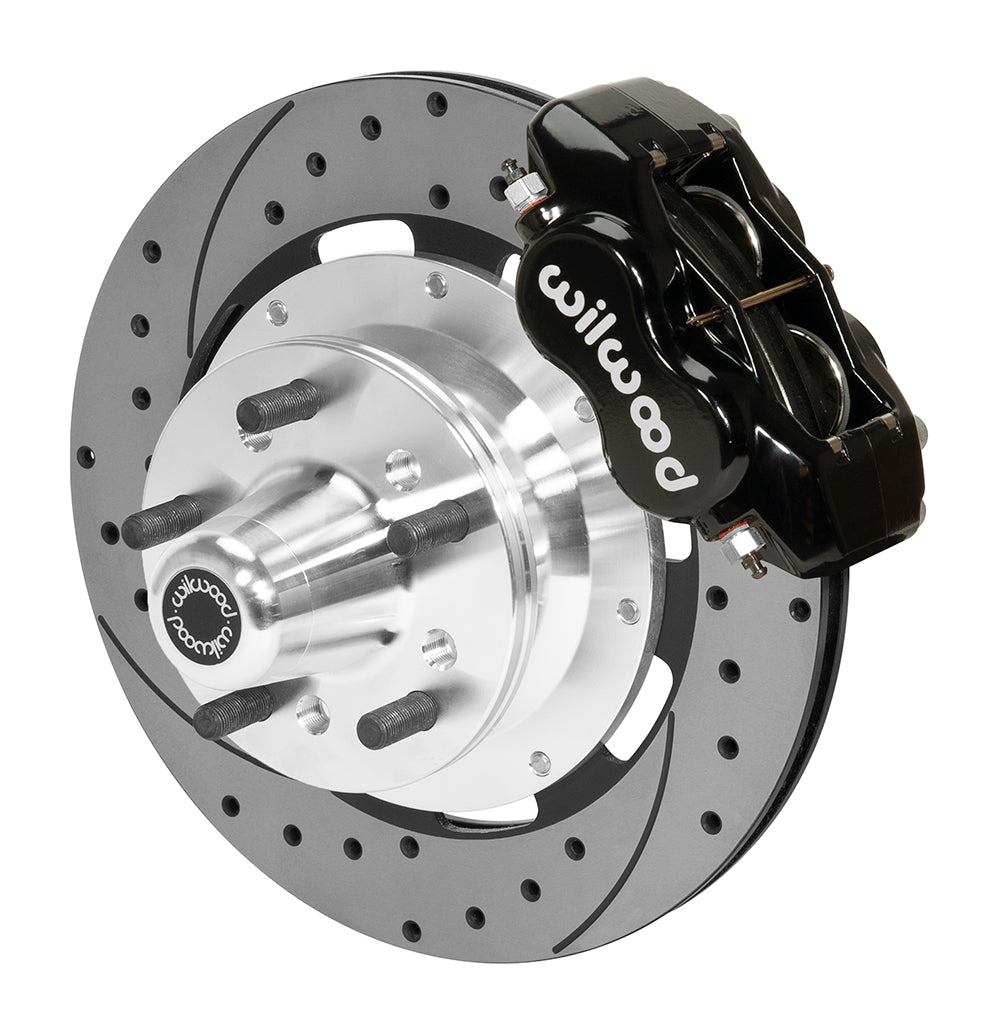

Wilwood 12.19-Inch Drilled Front Rotor and Hub Package for Early A-Body Mopars with Black Dynalite Calipers

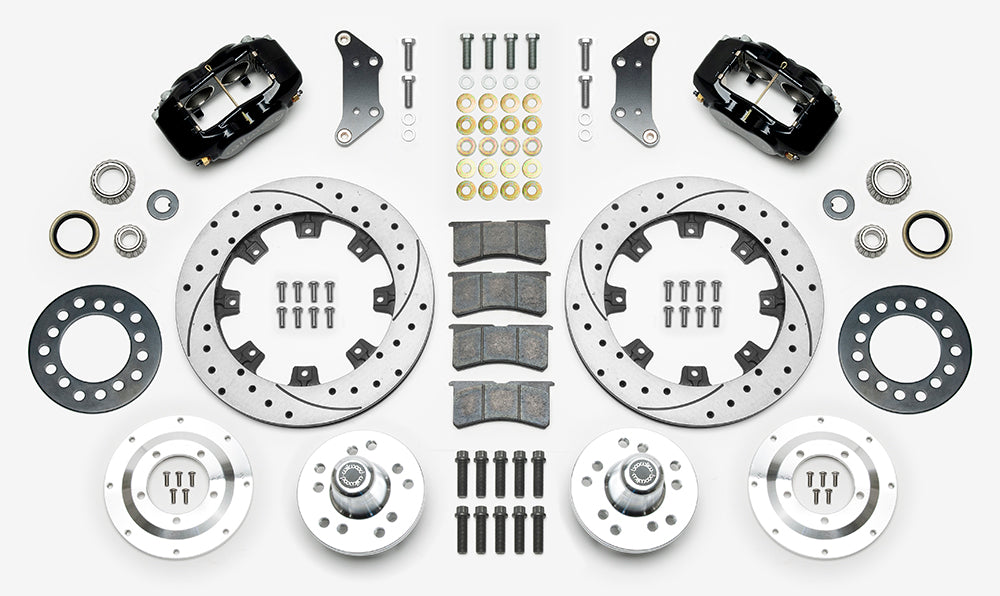

Black Dynalite calipers, drilled rotors and dual-pattern hubs suit listed early A-body spindles. Check wheel clearance and separate hose selection. Wilwood Engineering designs and builds disc brake systems in Camarillo, California. Bill Wood established the company in 1977; it supplies brake rotors, calipers, master cylinders, valves, fittings and lines for specialized applications, street performance and motorsport. The complete brake system determines which individual components are appropriate.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15461-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 32 V
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified hydraulic components: 220-7056; 220-8307

Fitment & Compatibility

These 12.19 × 0.81-inch front brakes require the documented early Mopar A-body factory disc spindle. The selected years differ by model: Barracuda coverage ends in 1969, while Duster and Scamp start later than Dart/Valiant. DS-1300 states the original five-on-4.50-inch lug-pattern condition; inspect the actual spindle/hub arrangement before ordering. Aluminum hubs, bearings, seals and 1/2-20 studs are included and provide dual 5 × 4.50/4.75-inch wheel patterns. Hoses are separate; select the documented line option for the actual fittings and routing. Any separately installed two-bolt master cylinder may need the required four-bolt mounting adapter, which Wilwood does not supply. Check the wheel drawing even where a 15-inch wheel is nominally allowed.

Listed models: Dart; Barracuda; Valiant; Duster; Scamp. See the supplied table below for each year, submodel and equipment condition.
