Wilwood Black Dynalite Front Brake Kit with 12.19-Inch Plain Rotors for 1965–1972 Mopar A-Body Disc Spindles

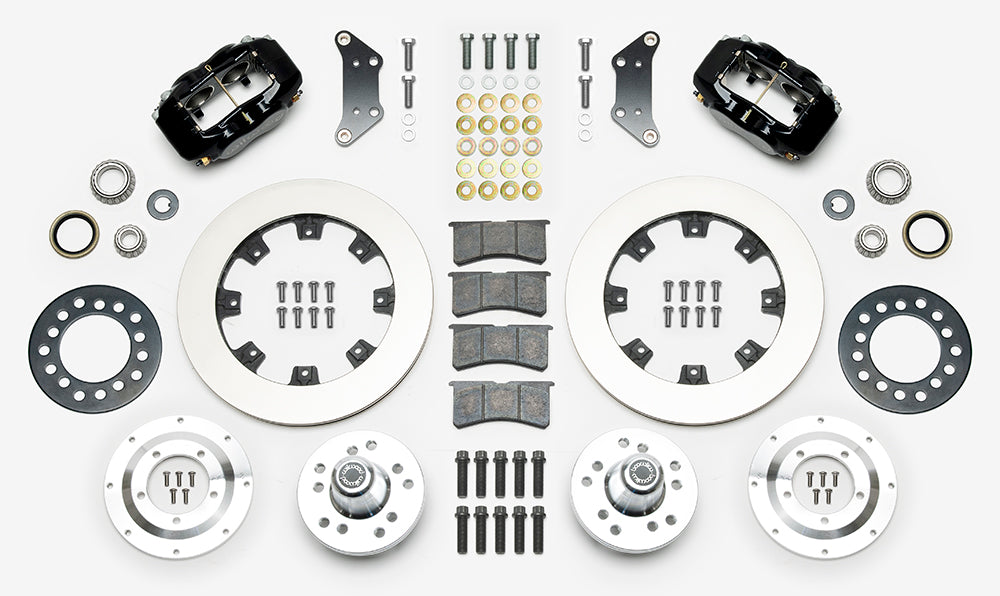

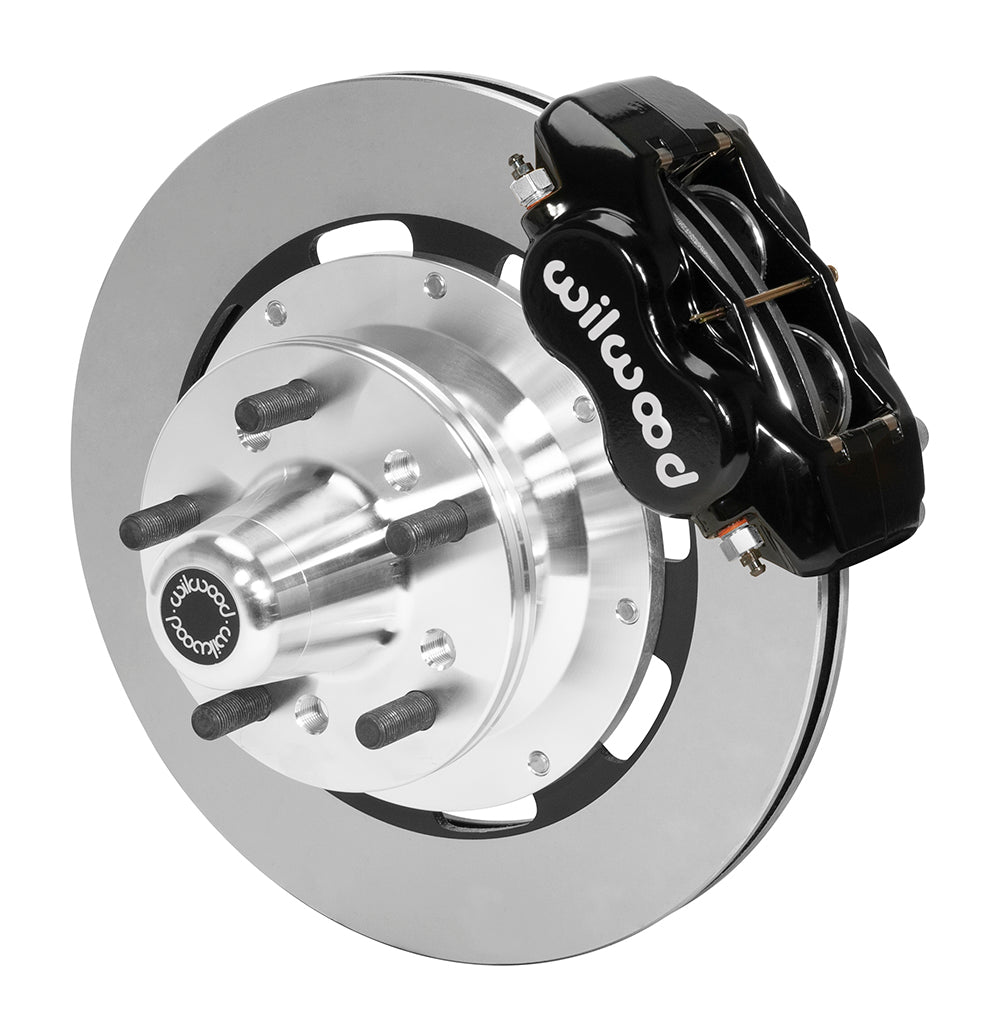

Black four-piston calipers, 12.19-inch rotors and hubs form this early A-body front kit. Verify original disc-spindle and lug-pattern conditions. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15461
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified hydraulic components: 220-7056; 220-8307
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10

Fitment & Compatibility

These 12.19 × 0.81-inch front brakes require the documented early Mopar A-body factory disc spindle. The selected years differ by model: Barracuda coverage ends in 1969, while Duster and Scamp start later than Dart/Valiant. DS-1300 states the original five-on-4.50-inch lug-pattern condition; inspect the actual spindle/hub arrangement before ordering. Aluminum hubs, bearings, seals and 1/2-20 studs are included and provide dual 5 × 4.50/4.75-inch wheel patterns. Hoses are separate; select the documented line option for the actual fittings and routing. Any separately installed two-bolt master cylinder may need the required four-bolt mounting adapter, which Wilwood does not supply. Check the wheel drawing even where a 15-inch wheel is nominally allowed.

Listed models: Dart; Barracuda; Valiant; Duster; Scamp. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
