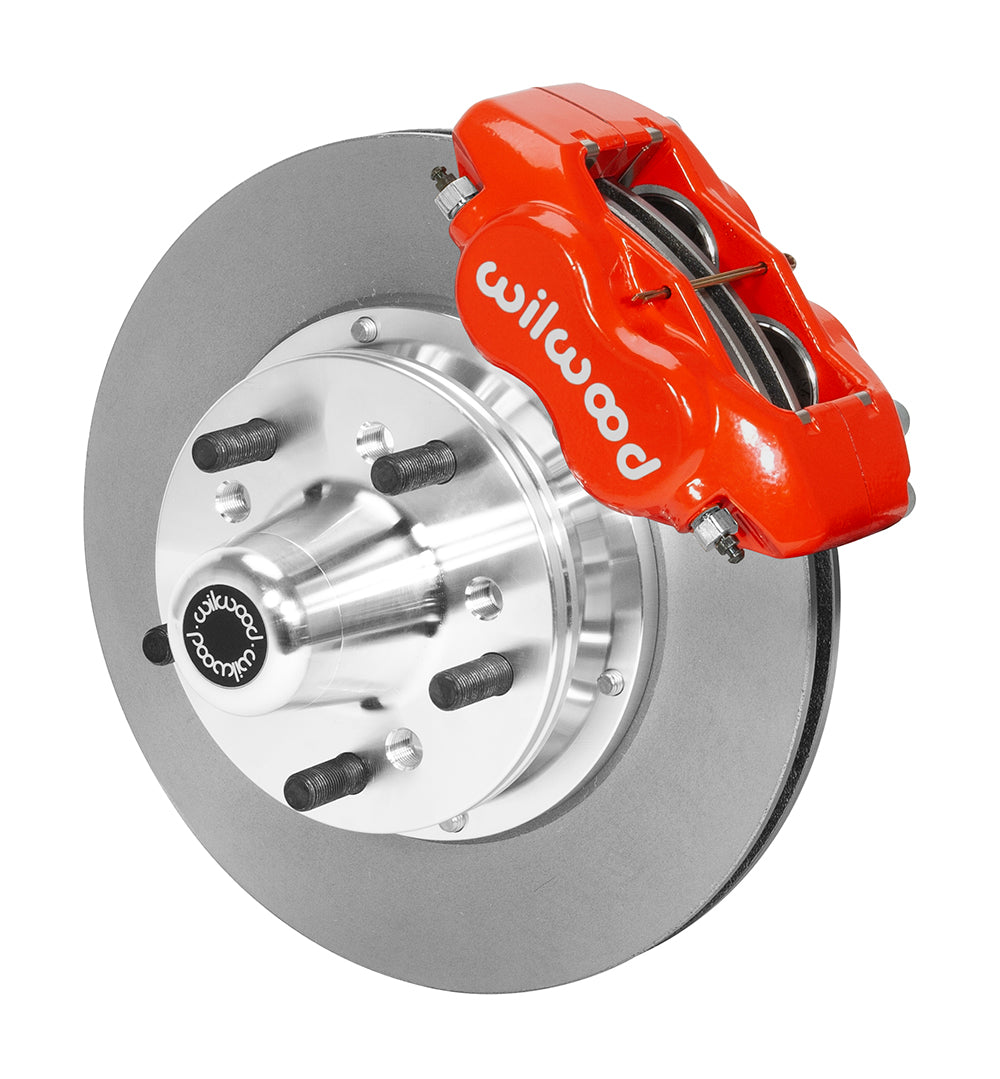

Wilwood Plain 11-Inch Front Brake Kit with Red Calipers and Hubs for Early A-Body Factory Disc Spindles

Red Dynalite calipers and plain vented rotors suit the specified early A-body disc spindle. Confirm the original lug-pattern requirement. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15459-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 30 V
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified hydraulic components: 220-7056; 220-8307

Fitment & Compatibility

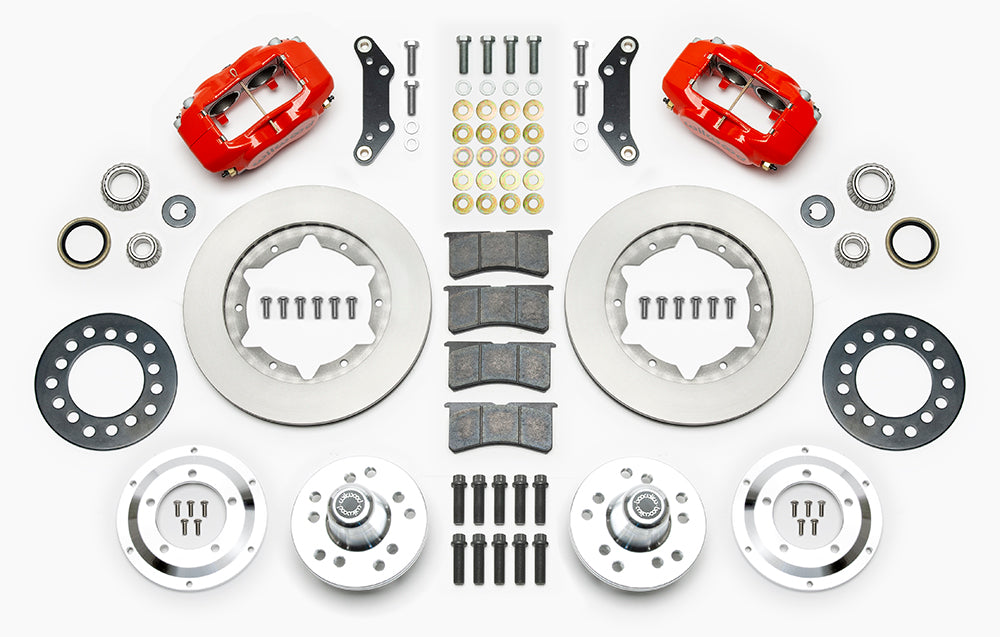

For the listed 1965–1972 Mopar A-body configurations with factory disc-brake spindles, including the stated Dart, Barracuda, Valiant, Duster and Scamp years. DS-1299 explicitly limits its installation to the original five-on-4.50-inch lug-pattern disc-spindle arrangement; confirm that condition rather than assuming any small-pattern A-body disc spindle qualifies. The kit includes four-piston Dynalite calipers, 11.00 × 0.81-inch vented rotors, aluminum hubs, bearings, seals and 1/2-20 studs. New hubs have 5 × 4.50 and 5 × 4.75-inch wheel patterns. Flexlines are separate; verify the listed 220-7056/220-8307 options against the required route. A two- to four-bolt master-cylinder adapter is relevant only if making that separate master-cylinder conversion; it is not supplied by Wilwood. Some wheels need more clearance than nominal 14-inch guidance suggests, so use the template.

Listed models: Dart; Barracuda; Valiant; Duster; Scamp. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
