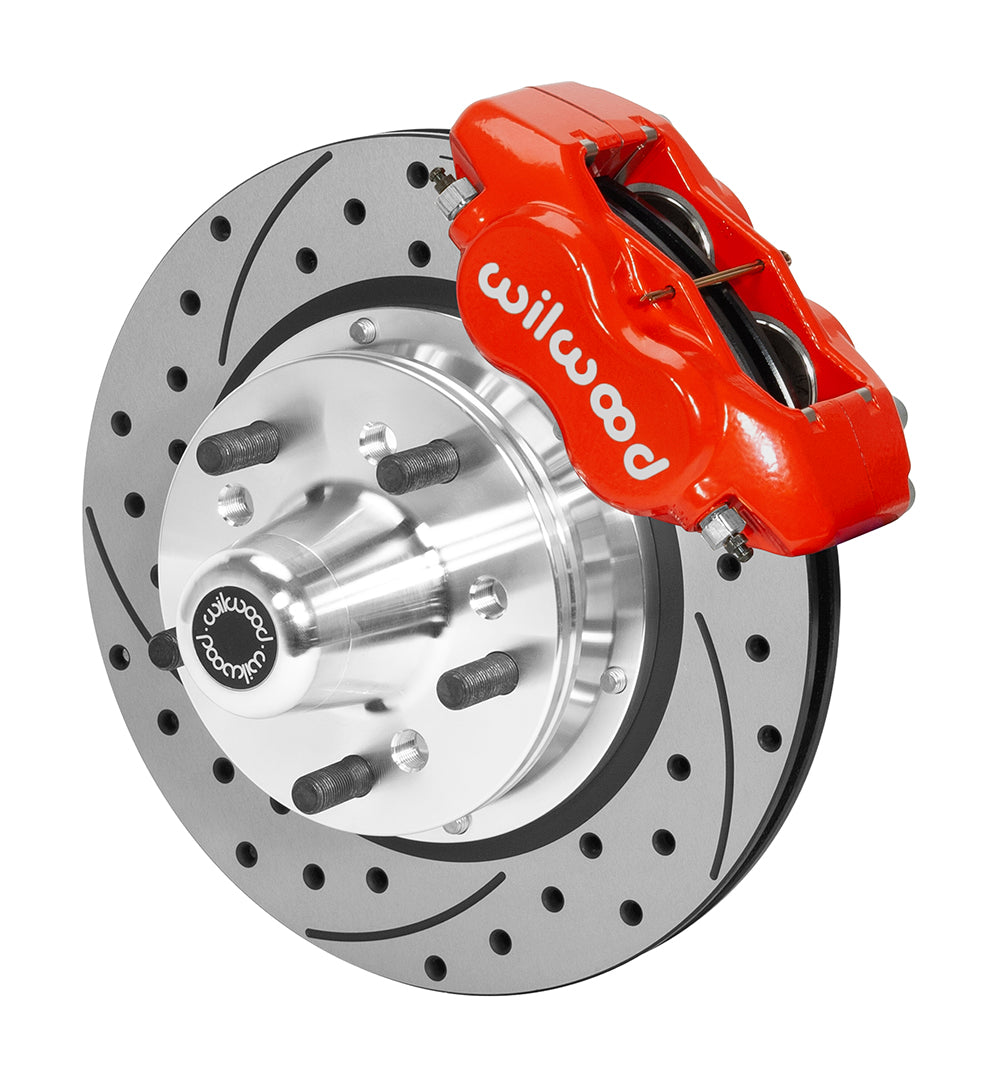

Wilwood Red Dynalite Front Brakes with 11-Inch Drilled Rotors for Listed 1965–1972 Mopar A-Body Applications

Red calipers, drilled 11-inch rotors and hubs suit the specified Mopar A-body spindle. Hoses and any separate master-cylinder adaptation are extra. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15459-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynalite
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Separately specified hydraulic components: 220-7056; 220-8307
• Minimum wheel diameter guidance; verify clearance drawing: 14 in; 355.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 30 V

Fitment & Compatibility

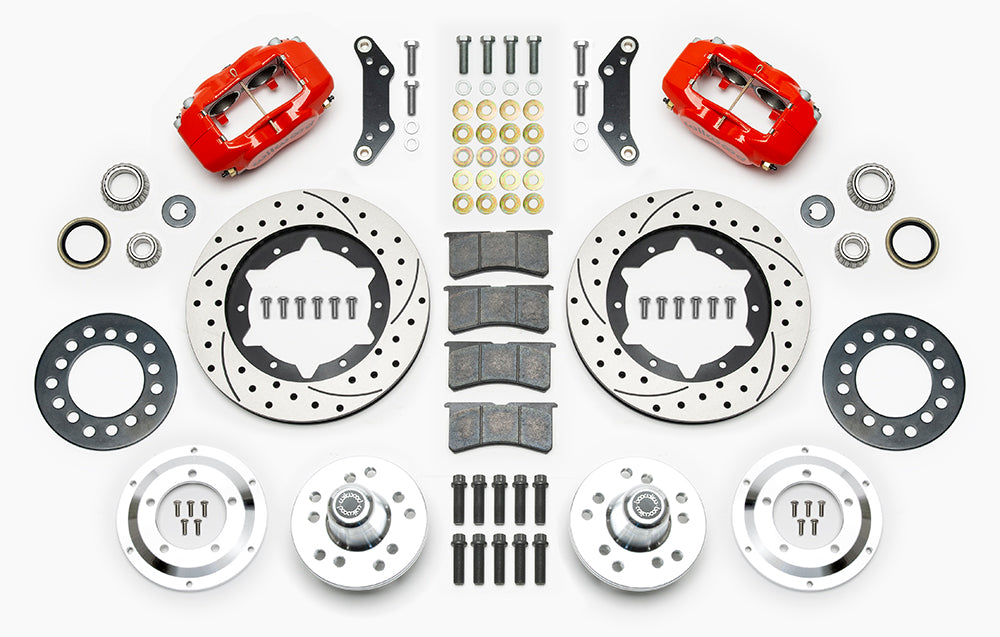

For the listed 1965–1972 Mopar A-body configurations with factory disc-brake spindles, including the stated Dart, Barracuda, Valiant, Duster and Scamp years. DS-1299 explicitly limits its installation to the original five-on-4.50-inch lug-pattern disc-spindle arrangement; confirm that condition rather than assuming any small-pattern A-body disc spindle qualifies. The kit includes four-piston Dynalite calipers, 11.00 × 0.81-inch vented rotors, aluminum hubs, bearings, seals and 1/2-20 studs. New hubs have 5 × 4.50 and 5 × 4.75-inch wheel patterns. Flexlines are separate; verify the listed 220-7056/220-8307 options against the required route. A two- to four-bolt master-cylinder adapter is relevant only if making that separate master-cylinder conversion; it is not supplied by Wilwood. Some wheels need more clearance than nominal 14-inch guidance suggests, so use the template.

Listed models: Dart; Barracuda; Valiant; Duster; Scamp. See the supplied table below for each year, submodel and equipment condition.
