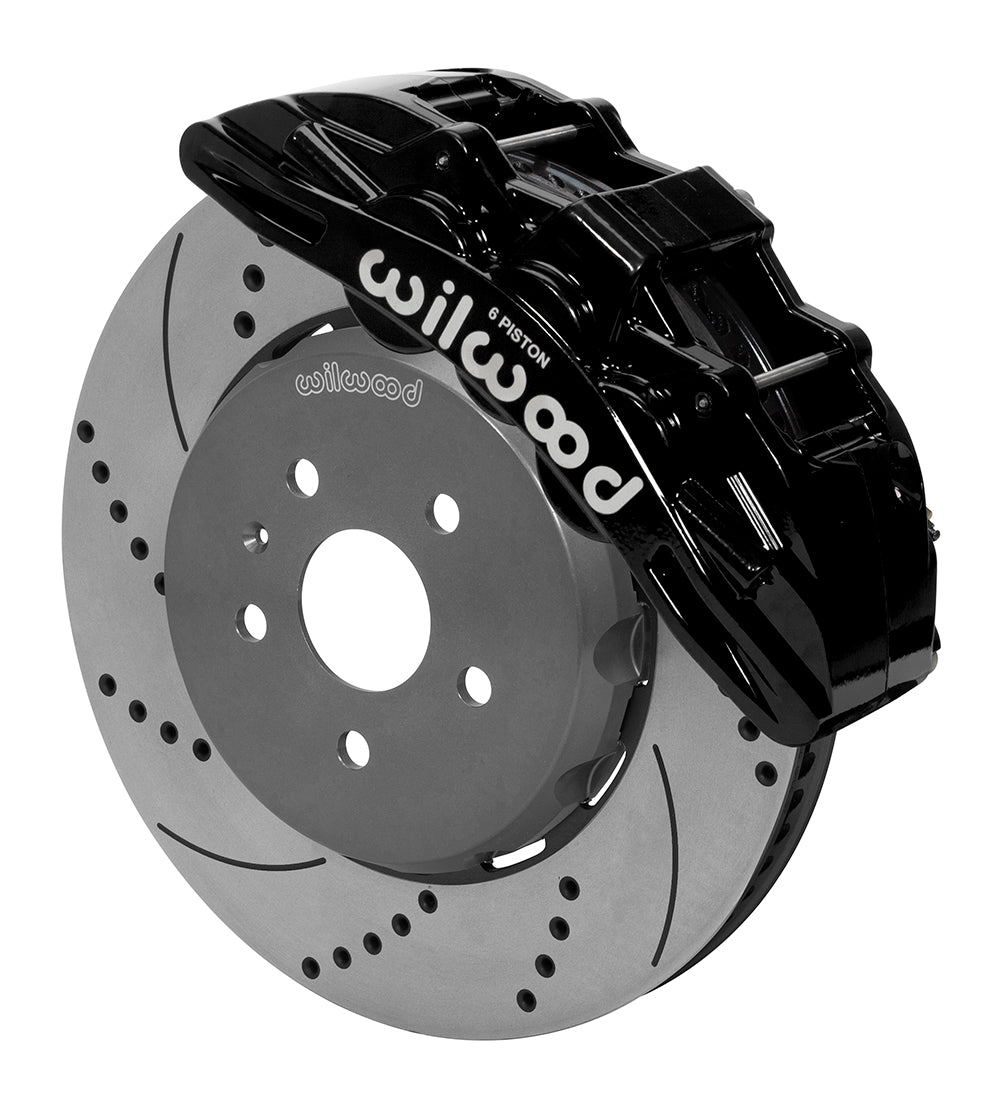

Wilwood 15-Inch Drilled Dynamic Lug-Drive Front Brake Conversion for Sixth-Gen Camaro with Black Calipers

Choose this black SX6R configuration for drilled-and-slotted 15-inch front rotors on listed sixth-gen Camaros. Braided hoses and BP-10 pads are supplied. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15441-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Minimum wheel diameter guidance; verify clearance drawing: 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

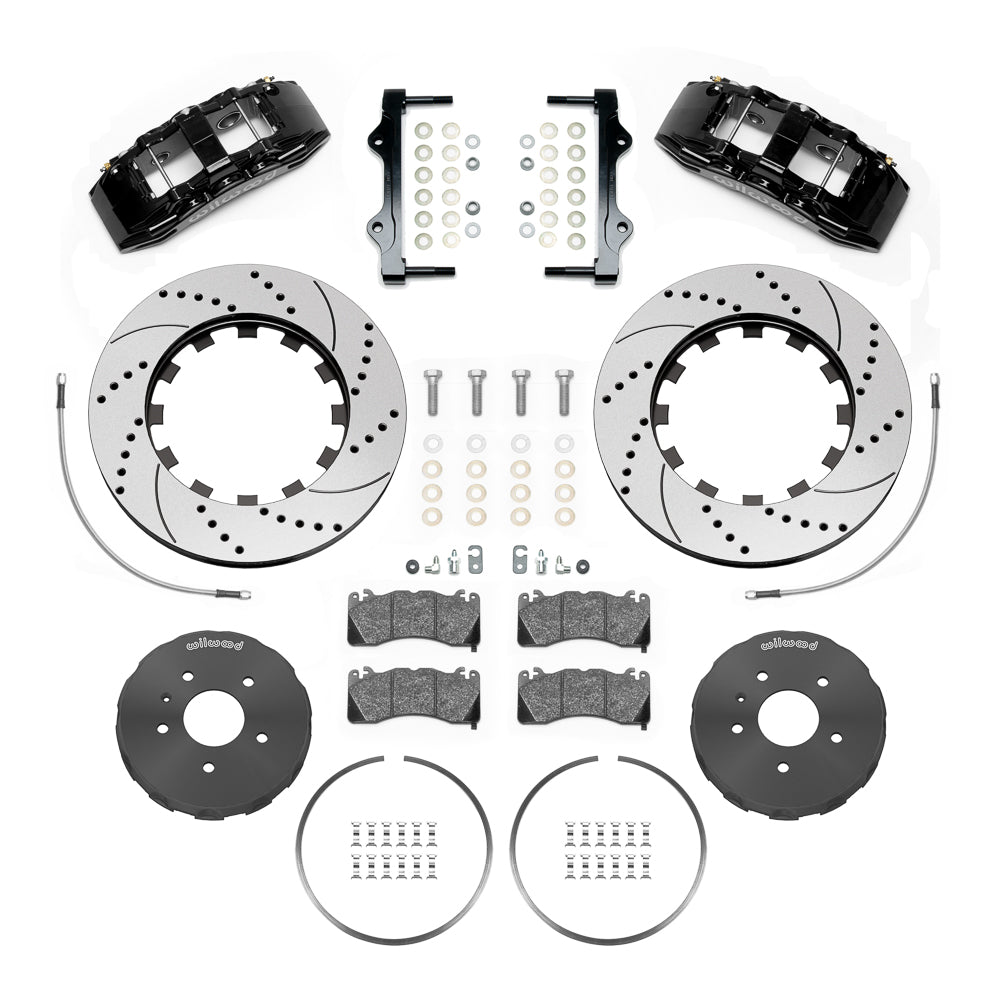

The supplied sixth-generation Camaro rows specify the eligible year, trim and factory brakes, including restricted early LT options and the later LS/LT1 entries. A broad 2016–2024 description does not make every trim eligible throughout that span. This front package has six-piston SX6R calipers and 15.00 × 1.25-inch dynamic lug-drive rotor rings with separate Type III hats. Slotted versions include ProMatrix pads; drilled-and-slotted versions use BP-10. Braided hose kit 220-11382 is included and uses the supplied bracket/grommet in the original location. Follow DS-1303 and the current application rows, and check the actual wheel against the 19-inch minimum guidance and drawing.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.
