Wilwood Black SX6R 15-Inch Front Brake Kit for Selected 2016–2024 Chevrolet Camaro Brake Packages

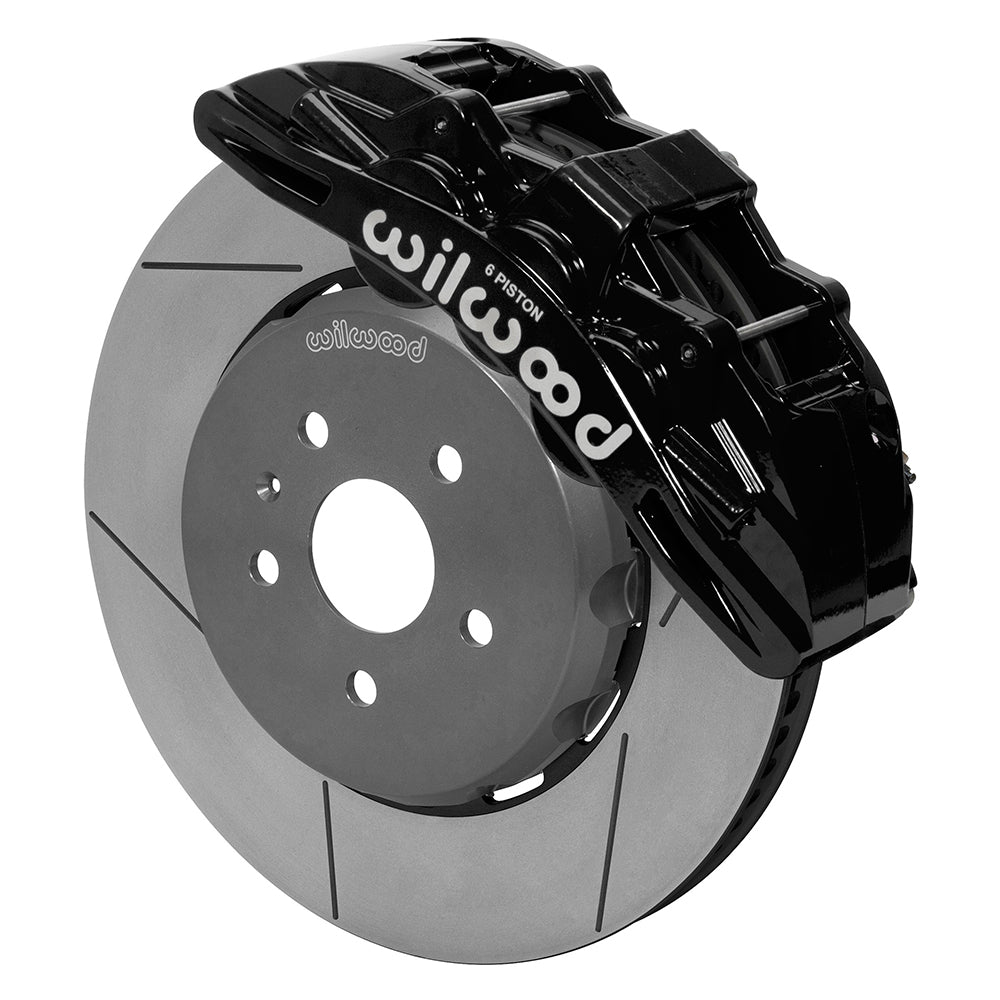

Black SX6R calipers work with slotted 15-inch lug-drive rotors and ProMatrix pads. Confirm the listed sixth-gen Camaro configuration and wheel clearance. Bill Wood founded Wilwood Engineering in 1977, and the manufacturer is based in Camarillo, California. Wilwood designs and manufactures disc brake systems alongside calipers, master cylinders, rotors, fittings, brake lines and valves. The motorsport, street-performance and specialized ranges depend on components selected to work within a complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15441
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: PM - ProMatrix

Fitment & Compatibility

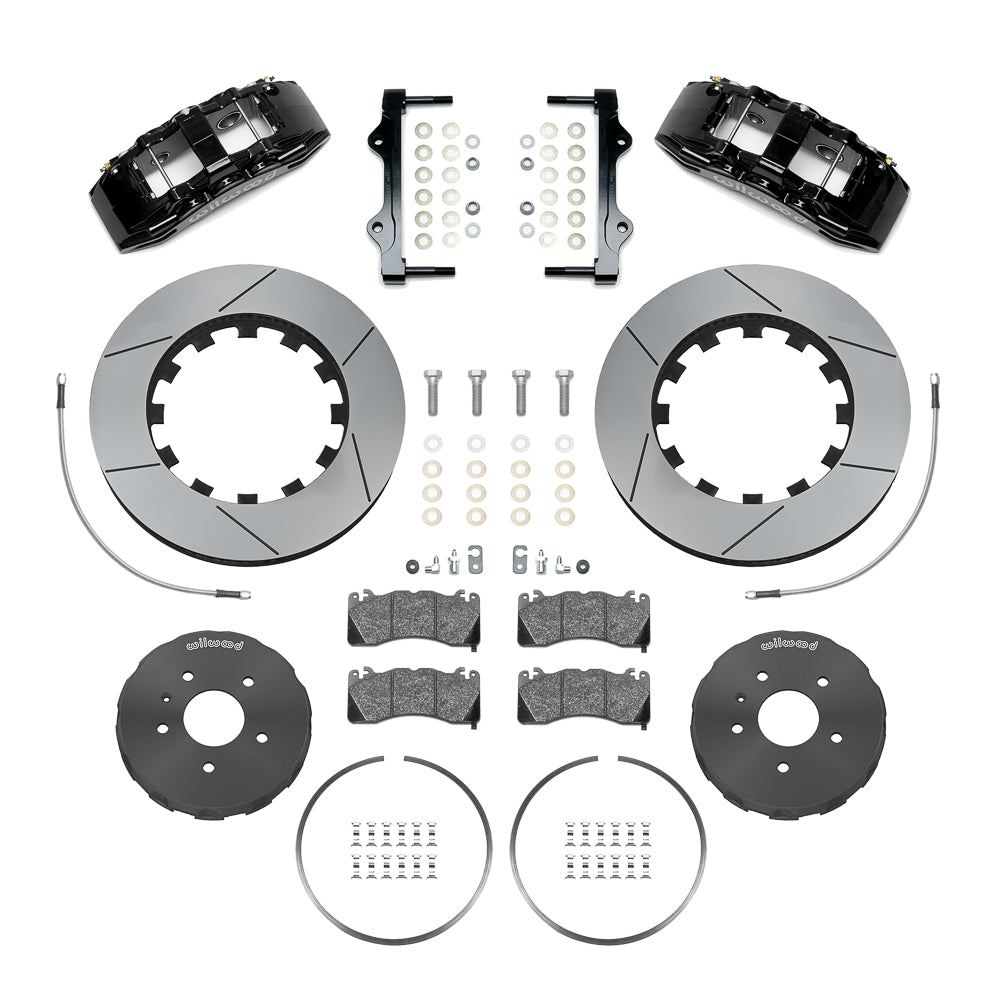

The supplied sixth-generation Camaro rows specify the eligible year, trim and factory brakes, including restricted early LT options and the later LS/LT1 entries. A broad 2016–2024 description does not make every trim eligible throughout that span. This front package has six-piston SX6R calipers and 15.00 × 1.25-inch dynamic lug-drive rotor rings with separate Type III hats. Slotted versions include ProMatrix pads; drilled-and-slotted versions use BP-10. Braided hose kit 220-11382 is included and uses the supplied bracket/grommet in the original location. Follow DS-1303 and the current application rows, and check the actual wheel against the 19-inch minimum guidance and drawing.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
