Wilwood Red Six-Piston Front Brake Package for 2016–2024 Camaro with 14-Inch Drilled Rotors

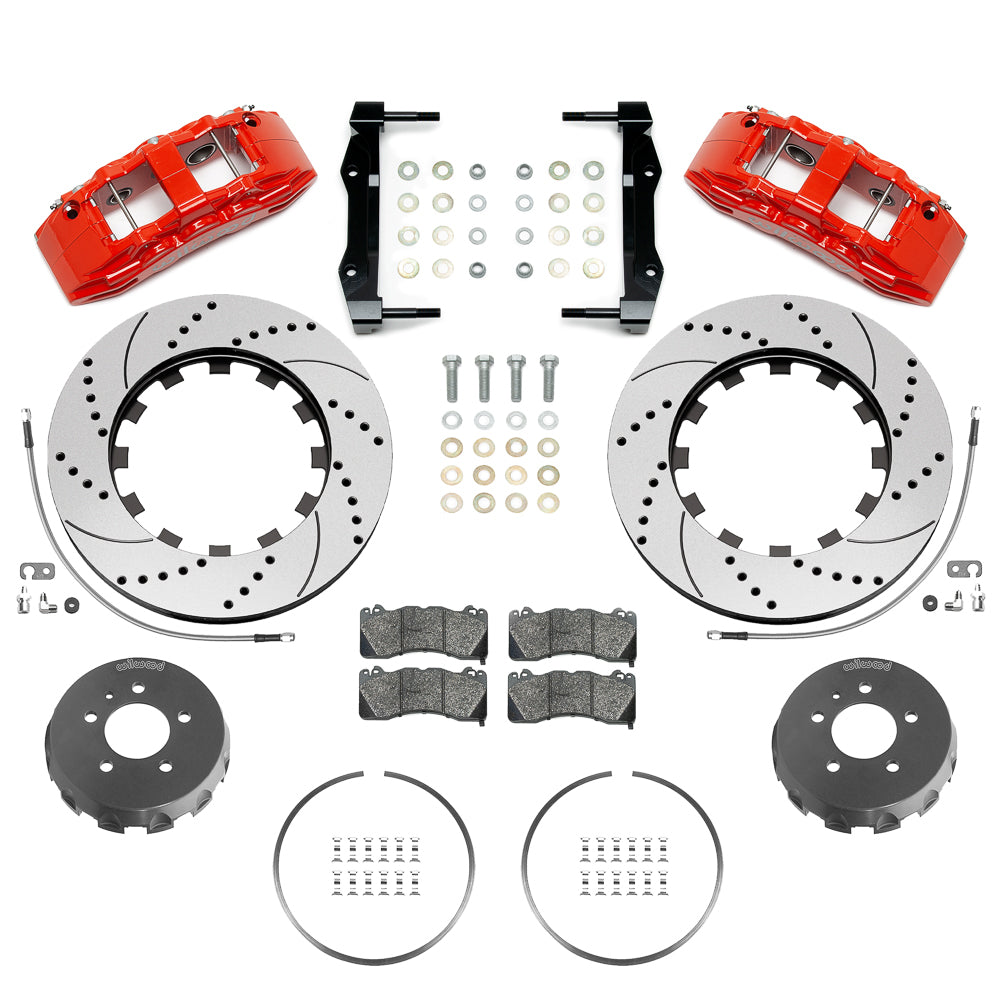

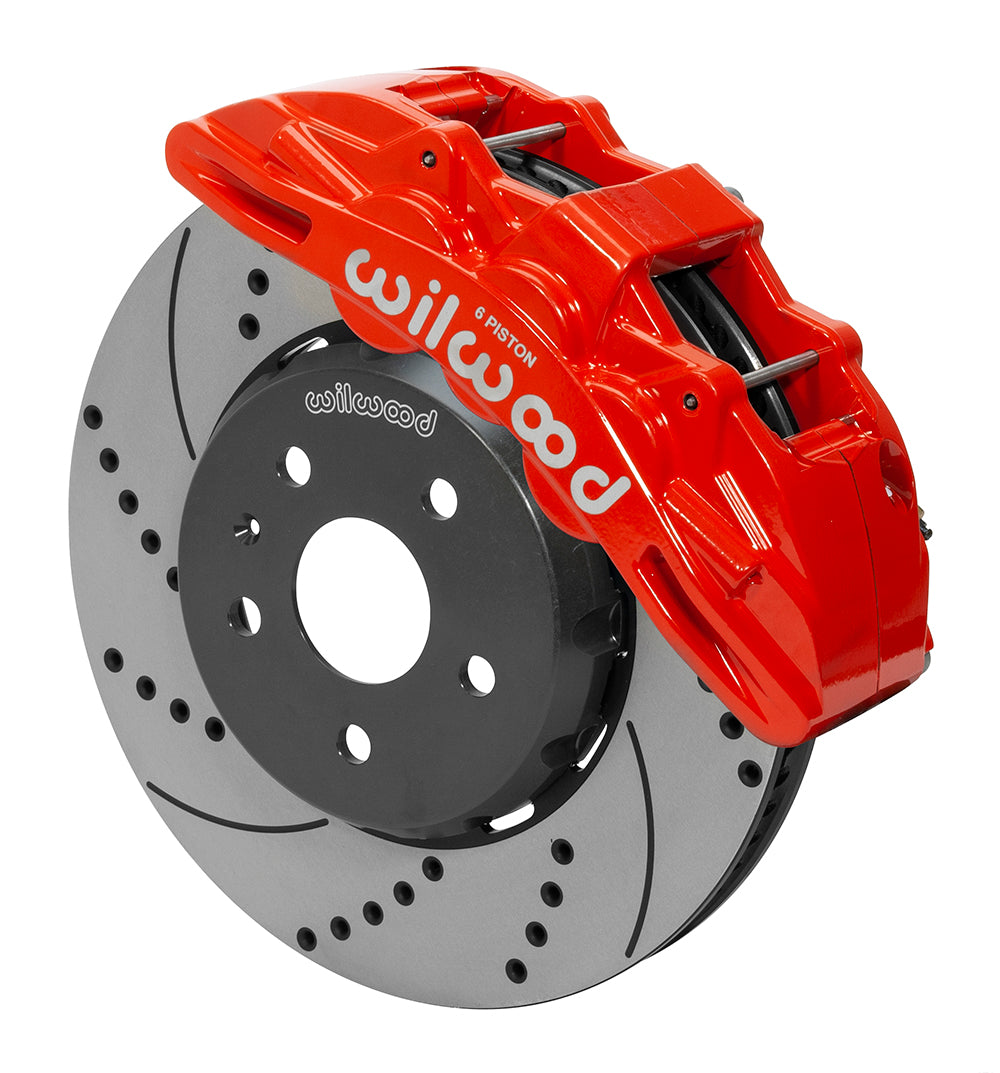

Red SX6R calipers and drilled-and-slotted dynamic lug-drive rotors form this 14-inch Camaro front kit. Verify the specific trim and original brake package. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15438-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in

Fitment & Compatibility

Match the exact sixth-generation Camaro year, trim and factory brake configuration in the supplied table. Coverage includes specified 2016 LT J55/JL9 arrangements, listed SS applications, later LT/ZL1 and LS entries, and LT1 only in its stated years. Do not broaden these into unconditional 2016–2024 coverage. This SX6R package uses 14.00 × 1.25-inch dynamic lug-drive rotors and separate hard-anodized aluminum hats. ProMatrix pads accompany the slotted version; BP-10 pads accompany drilled-and-slotted rotors. Included front hoses 220-11382 use the supplied bracket/grommet at the original mounting position. Retain each listed Camaro year and brake-package condition. Check the wheel template and 18-inch minimum diameter guidance.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
