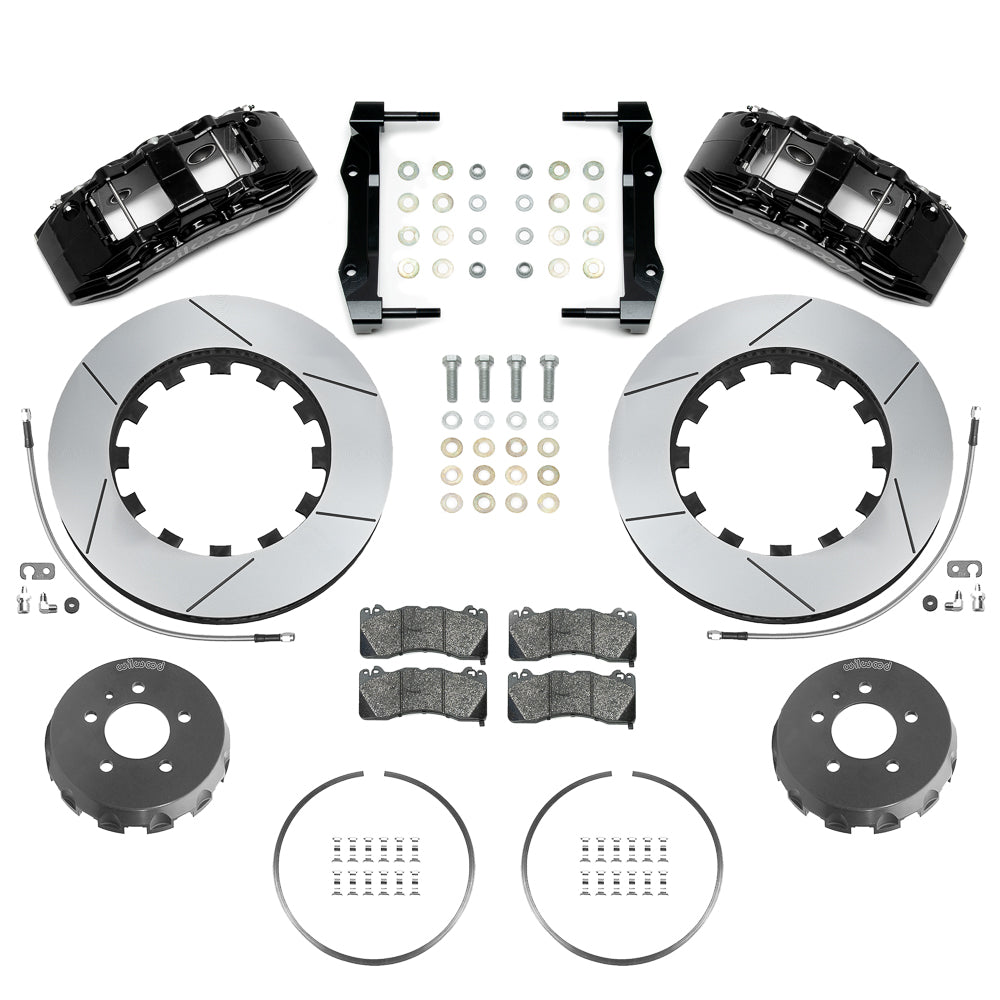

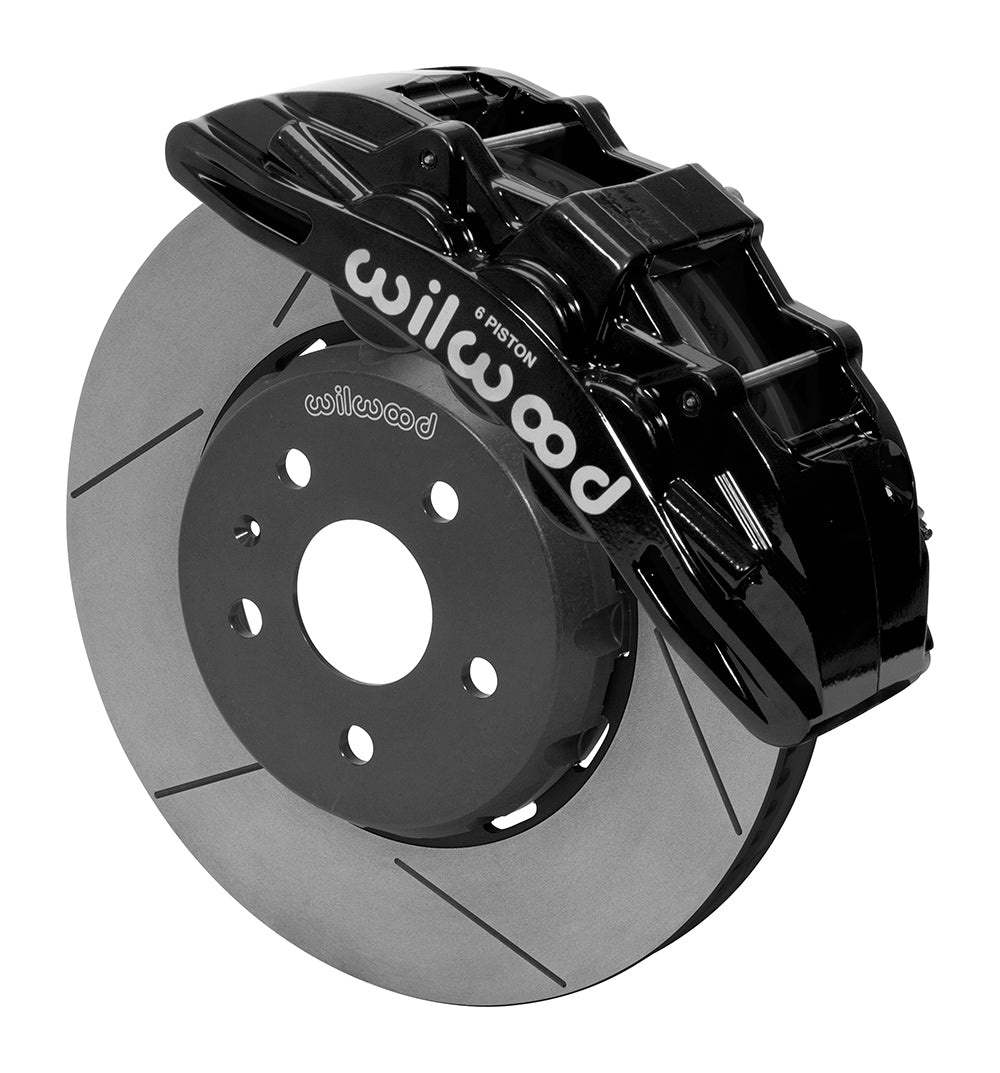

Wilwood Sixth-Generation Camaro Front Brake Conversion with Black SX6R Calipers and Slotted 14-Inch Lug-Drive Rotors, Listed 2016–2024 Applications

Slotted 14-inch rotors and black SX6R calipers suit listed sixth-gen Camaro brake packages. ProMatrix pads and braided hoses are included. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15438
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: PM - ProMatrix
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No

Fitment & Compatibility

Match the exact sixth-generation Camaro year, trim and factory brake configuration in the supplied table. Coverage includes specified 2016 LT J55/JL9 arrangements, listed SS applications, later LT/ZL1 and LS entries, and LT1 only in its stated years. Do not broaden these into unconditional 2016–2024 coverage. This SX6R package uses 14.00 × 1.25-inch dynamic lug-drive rotors and separate hard-anodized aluminum hats. ProMatrix pads accompany the slotted version; BP-10 pads accompany drilled-and-slotted rotors. Included front hoses 220-11382 use the supplied bracket/grommet at the original mounting position. Retain each listed Camaro year and brake-package condition. Check the wheel template and 18-inch minimum diameter guidance.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.
