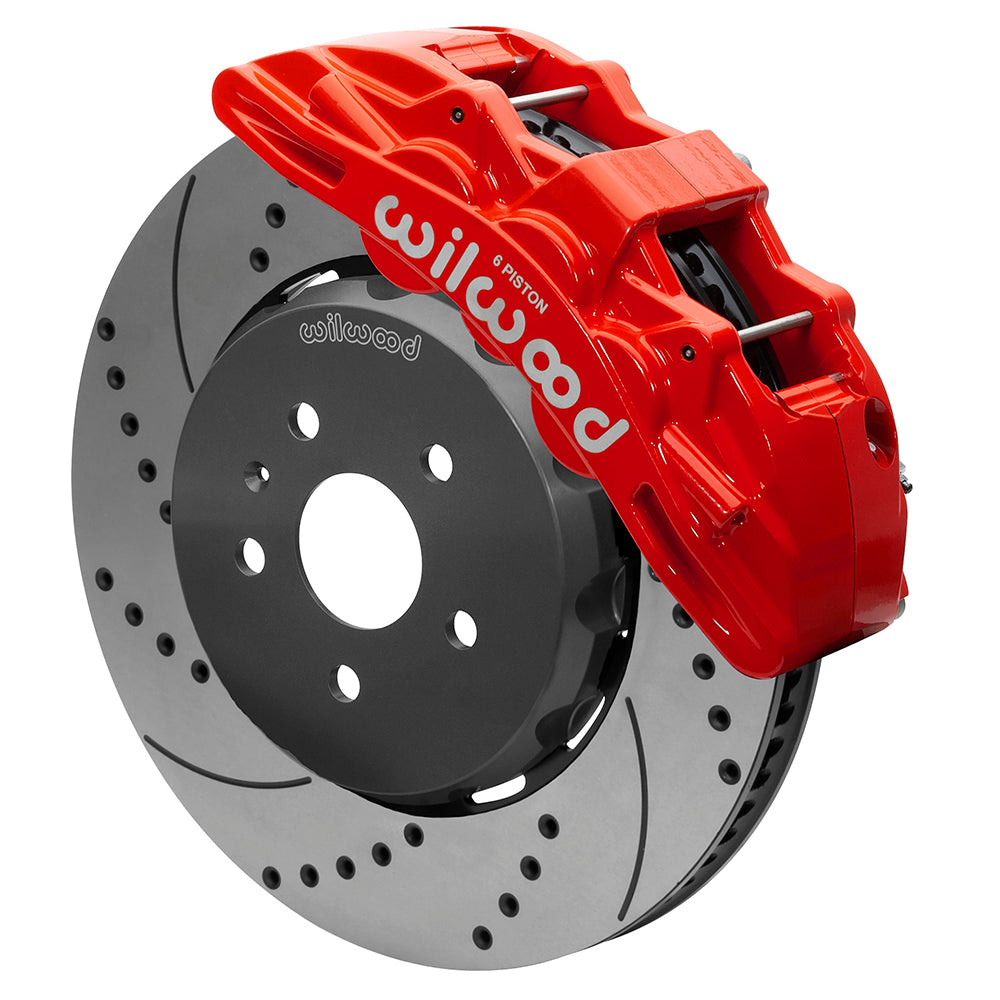

Wilwood Red SX6R Camaro Front Kit with 15-Inch Drilled-and-Slotted Rotors, 2010–2015 Applications

Red SX6R calipers and 15-inch drilled lug-drive rotors suit listed fifth-gen Camaro brakes. Verify the factory package and wheel-clearance template. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15431-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Minimum wheel diameter guidance; verify clearance drawing: 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10

Fitment & Compatibility

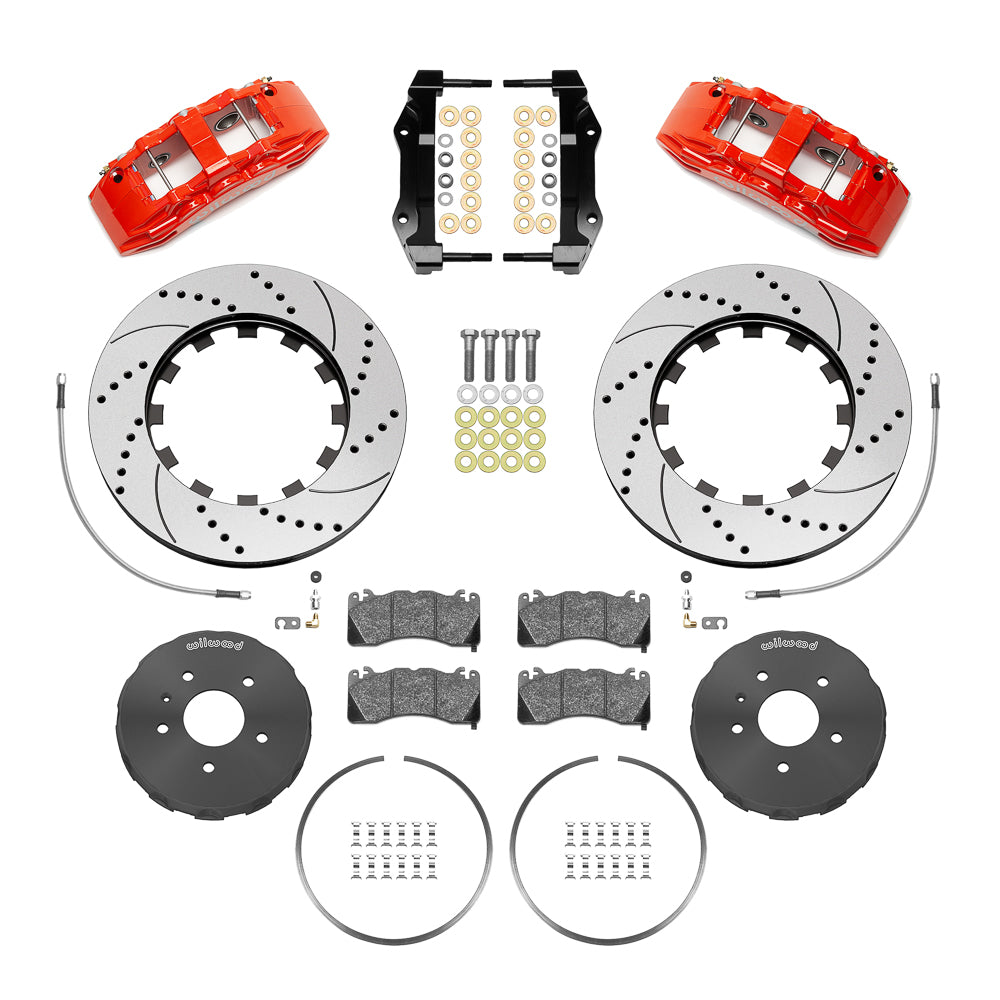

This 15.00 × 1.25-inch dynamic lug-drive front package is for the individually listed 2010–2015 Camaro applications. Keep each year's LS/LT/SS and performance-brake conditions distinct; a trim listed in 2015 is not automatically covered in all earlier years. SX6R six-piston calipers use ProMatrix pads with slotted rotors or BP-10 pads with drilled-and-slotted rotors. The Type III hard-anodized hats are separate components. Included hose kit 220-11382 requires the original line-bracket opening to be rounded for the fitting, as shown in DS-1290. Check hub compatibility, original brakes and wheel clearance using the drawing and 19-inch minimum wheel guidance.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
