Wilwood Black SX6R 15-Inch Front Brake Kit for Listed 2010–2015 Chevrolet Camaro Models

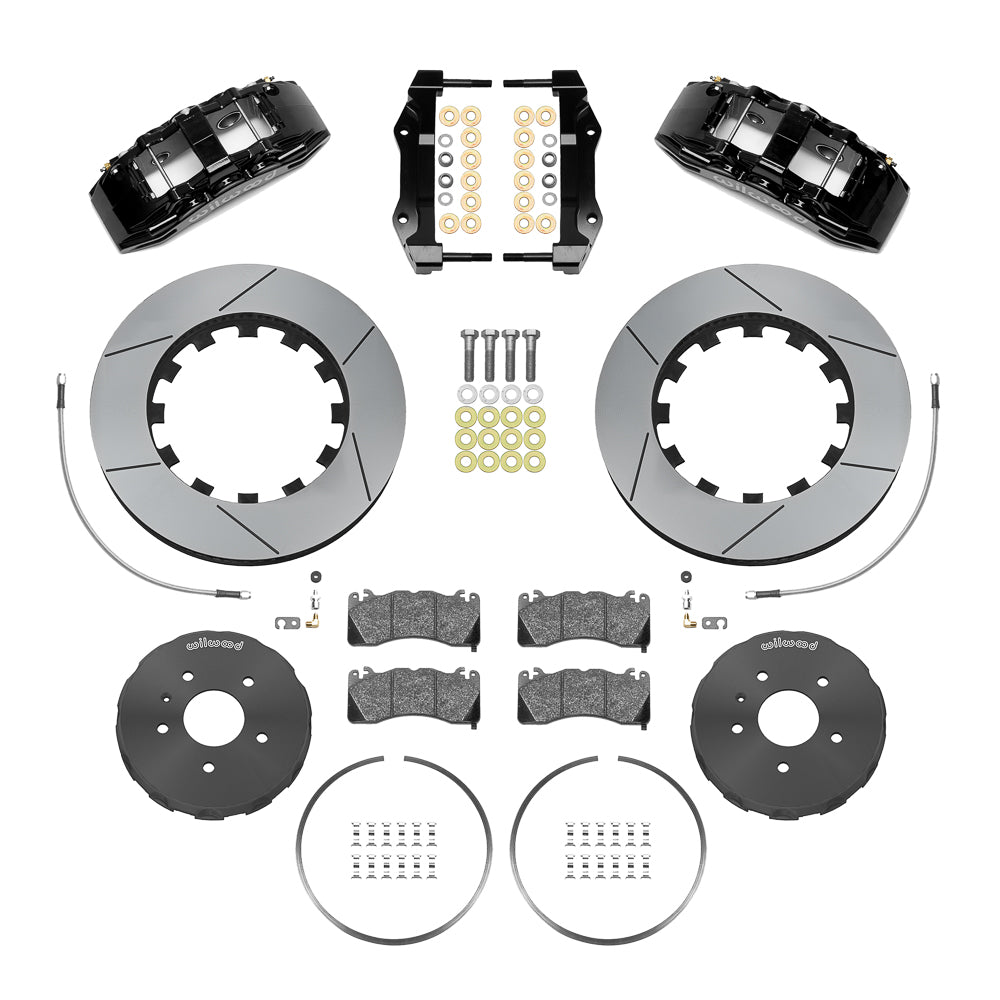

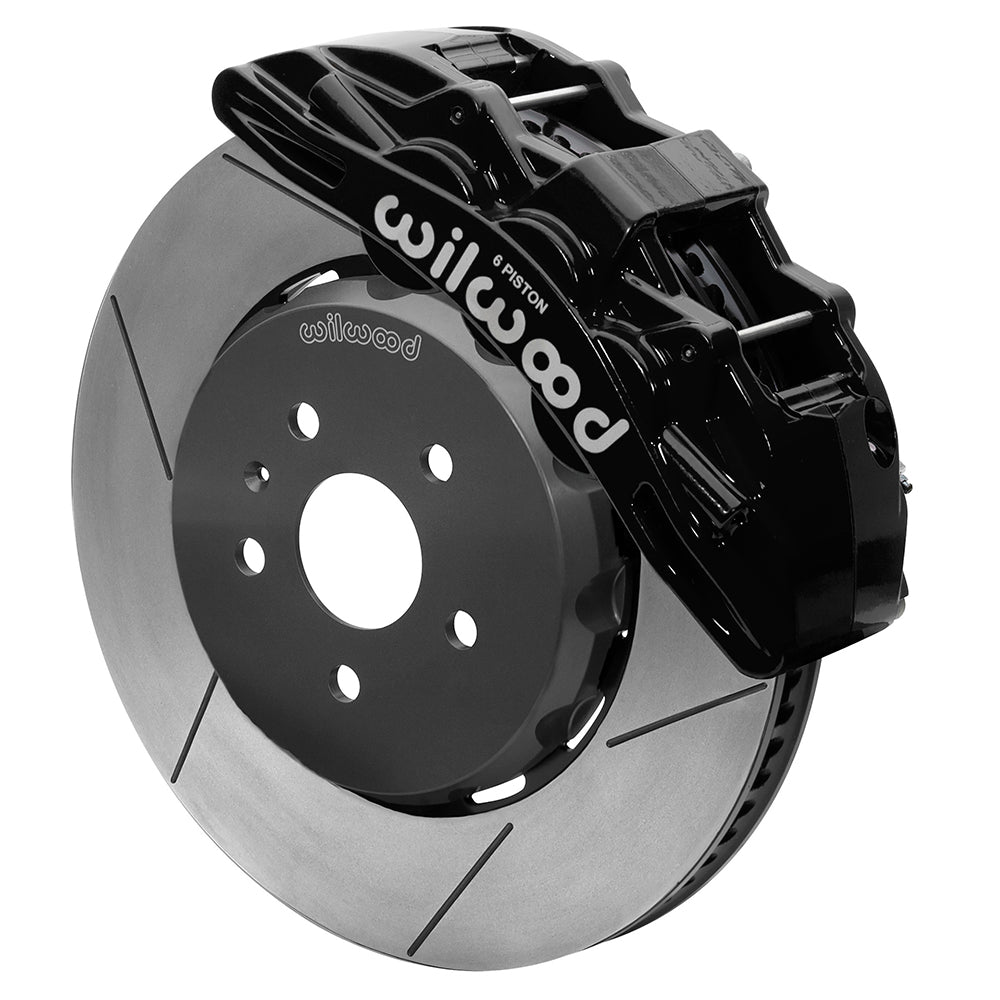

The black SX6R Camaro package uses 15-inch slotted dynamic lug-drive rotors and ProMatrix pads. Hoses are included; wheel clearance must be checked. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15431
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 19 in; 482.6 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 15.00 in; 381 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: PM - ProMatrix

Fitment & Compatibility

This 15.00 × 1.25-inch dynamic lug-drive front package is for the individually listed 2010–2015 Camaro applications. Keep each year's LS/LT/SS and performance-brake conditions distinct; a trim listed in 2015 is not automatically covered in all earlier years. SX6R six-piston calipers use ProMatrix pads with slotted rotors or BP-10 pads with drilled-and-slotted rotors. The Type III hard-anodized hats are separate components. Included hose kit 220-11382 requires the original line-bracket opening to be rounded for the fitting, as shown in DS-1290. Check hub compatibility, original brakes and wheel clearance using the drawing and 19-inch minimum wheel guidance.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions
