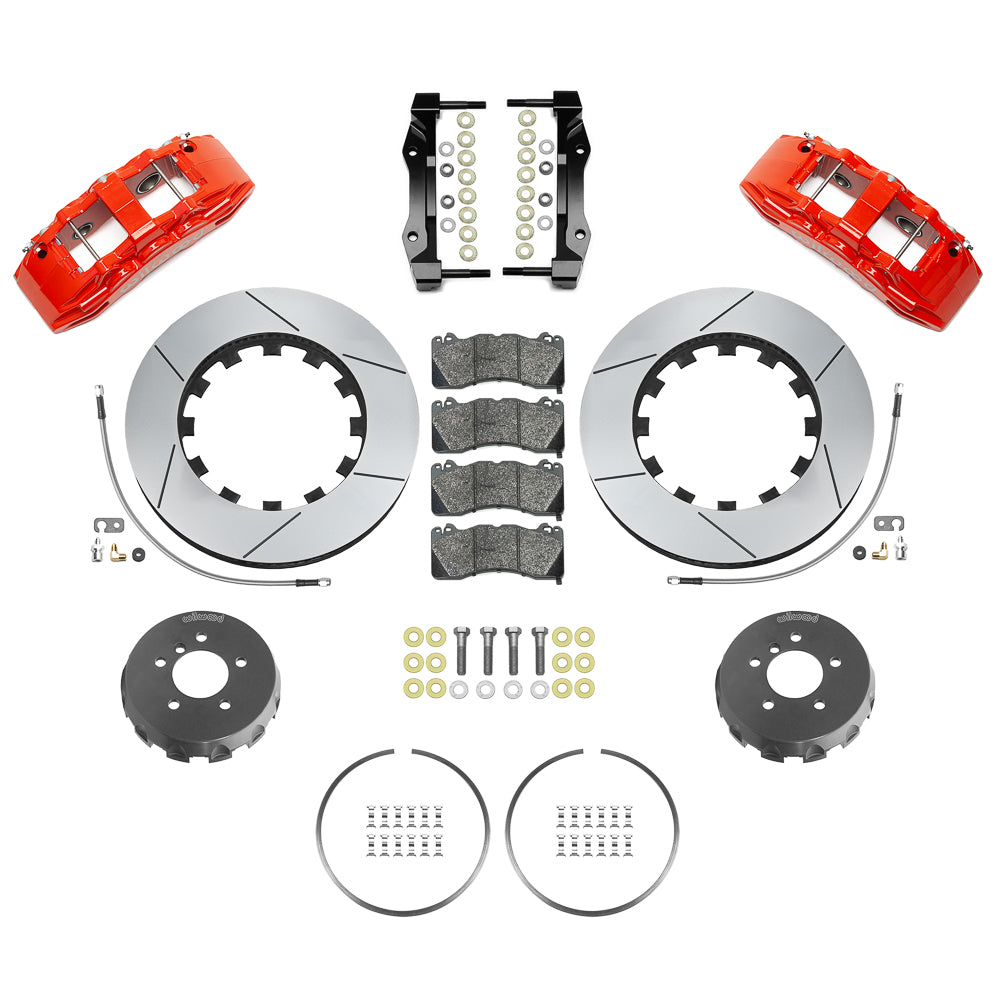

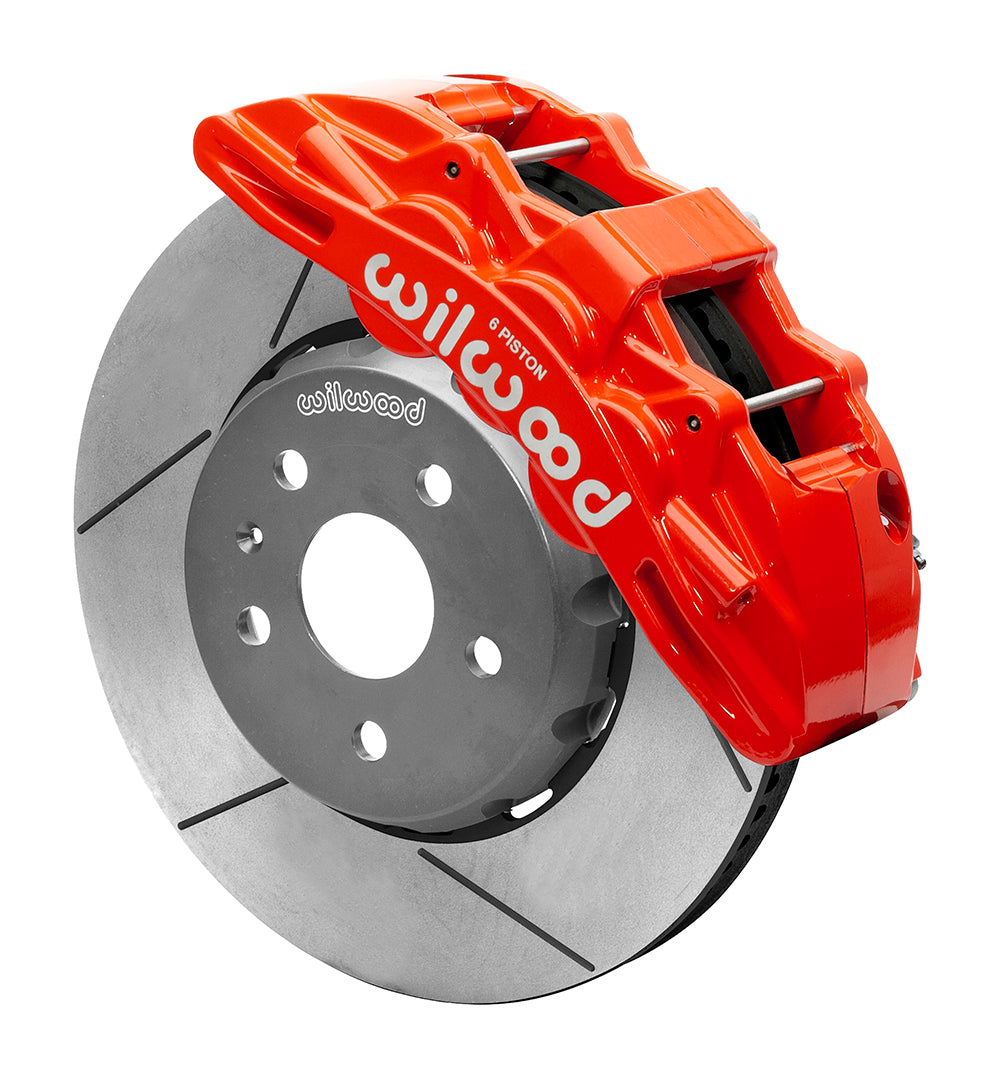

Wilwood 14-Inch Slotted Dynamic Lug-Drive Front Kit for Camaro with Red SX6R Calipers and ProMatrix Pads

Choose red six-piston calipers and slotted rotors for the listed fifth-gen Camaro brakes. Check wheel clearance and hose-bracket preparation. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15425-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: PM - ProMatrix
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

For the listed fifth-generation Chevrolet Camaro front brake configurations, with individual trim and brake-package limits across 2010–2015. The 2015 rows separately identify LS, LT, SS, Z/28 and ZL1 conditions; do not infer every trim is listed for every year. Six-piston SX6R calipers work with 14.00 × 1.25-inch dynamic lug-drive rotors and separate Type III hard-anodized aluminum hats. Slotted configurations use ProMatrix pads; drilled-and-slotted configurations use BP-10. Front hoses 220-11382 are included. DS-1289 requires rounding the original brake-line bracket opening to accept the bulkhead fitting. Verify the original brake package and the wheel drawing; nominal minimum wheel guidance is 18 inches.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
