Wilwood Red SX6R Front Brakes for Listed 2010–2015 Camaro Applications with 14-Inch Drilled Rotors

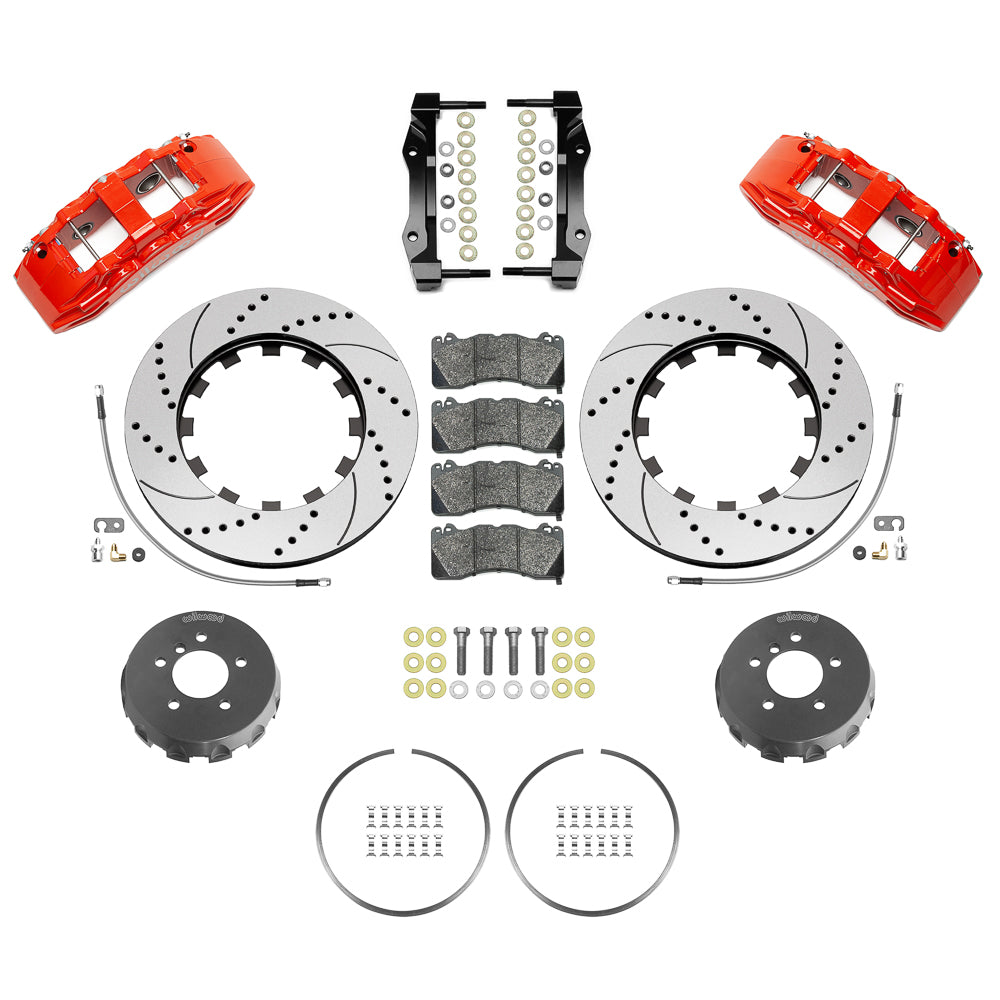

Red SX6R calipers and drilled 14-inch rotors suit listed fifth-gen Camaros. Included hoses require modification of the original line bracket. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15425-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in

Fitment & Compatibility

For the listed fifth-generation Chevrolet Camaro front brake configurations, with individual trim and brake-package limits across 2010–2015. The 2015 rows separately identify LS, LT, SS, Z/28 and ZL1 conditions; do not infer every trim is listed for every year. Six-piston SX6R calipers work with 14.00 × 1.25-inch dynamic lug-drive rotors and separate Type III hard-anodized aluminum hats. Slotted configurations use ProMatrix pads; drilled-and-slotted configurations use BP-10. Front hoses 220-11382 are included. DS-1289 requires rounding the original brake-line bracket opening to accept the bulkhead fitting. Verify the original brake package and the wheel drawing; nominal minimum wheel guidance is 18 inches.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
