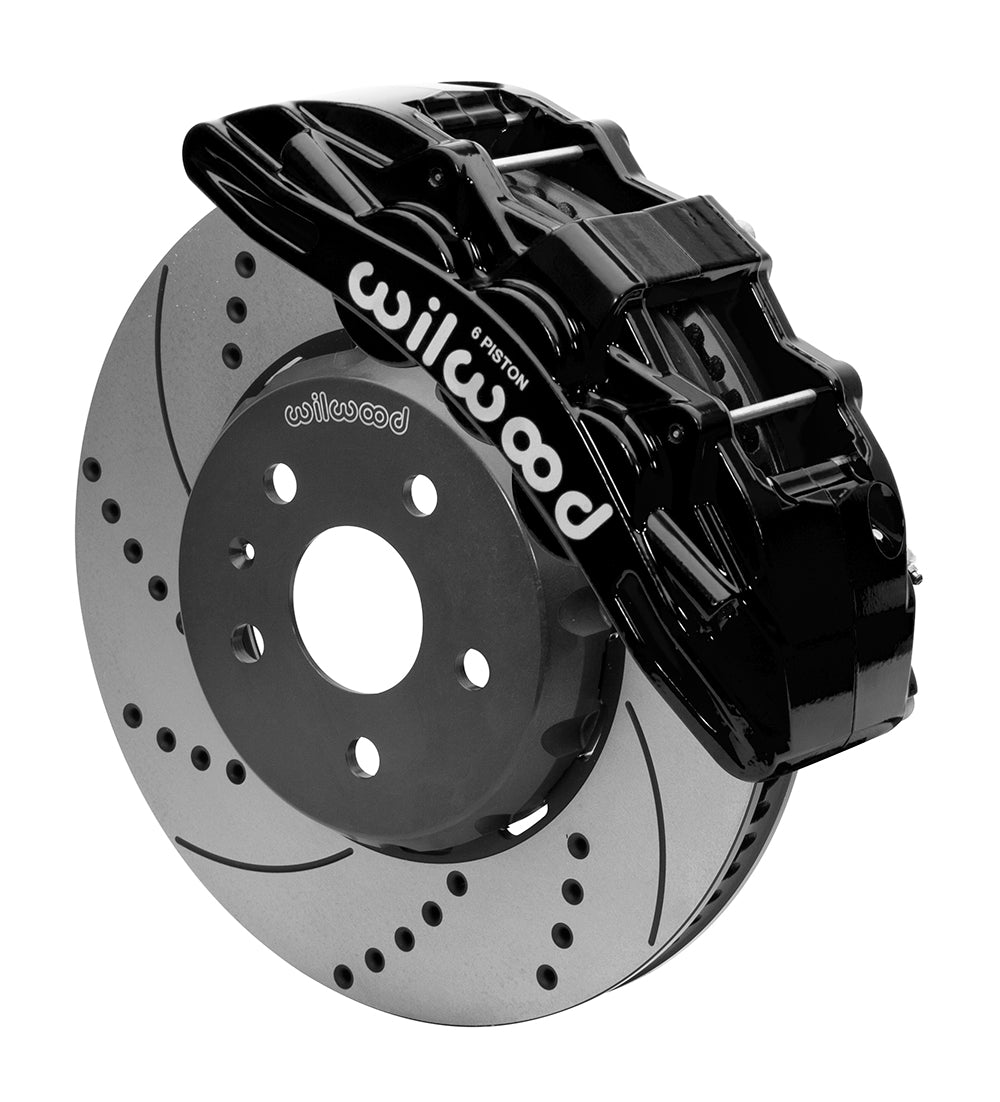

Wilwood 14-Inch Drilled Rotor Front Conversion for Fifth-Generation Camaro with Black SX6R Calipers

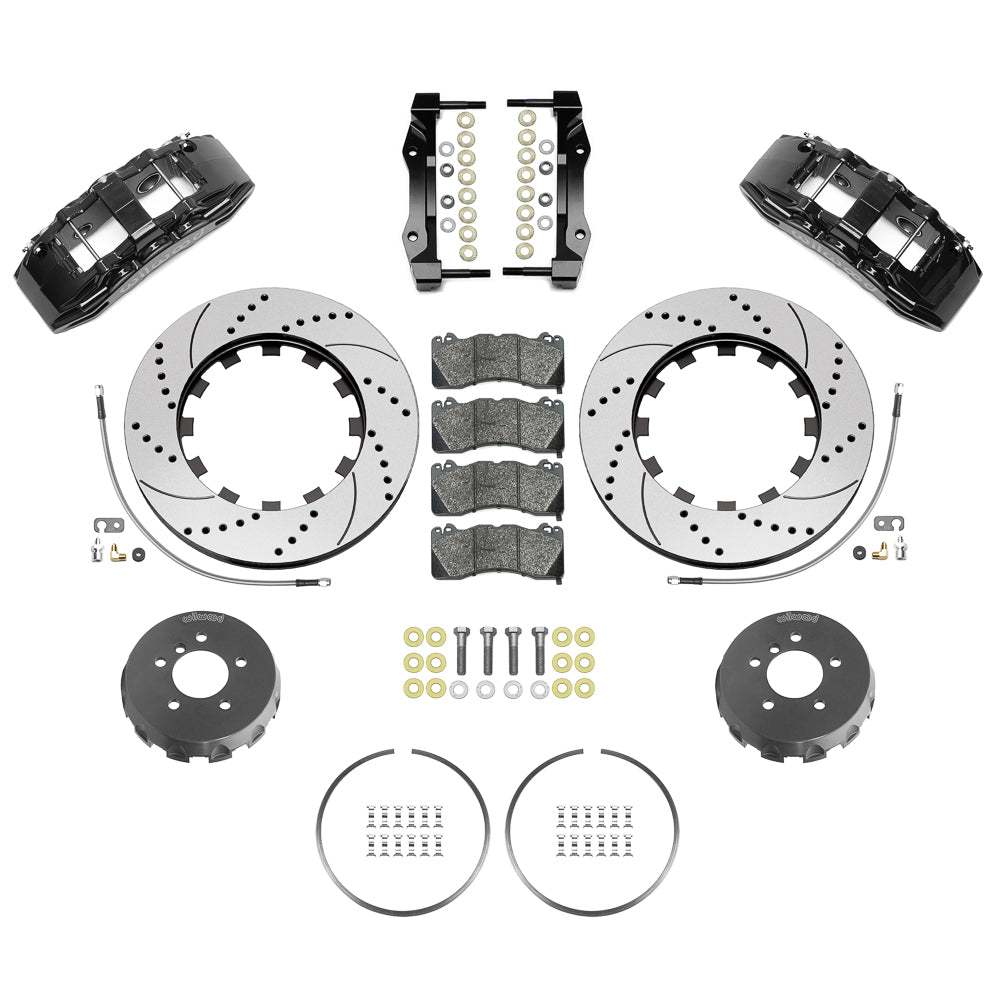

Drilled rotors, BP-10 pads and black SX6R calipers form this Camaro front kit. Check the listed 2010–2015 trim and factory brake configuration. The manufacturer, Wilwood Engineering, was established by Bill Wood in 1977 and is based in Camarillo, California. It designs and builds disc brake systems with a range covering calipers, brake rotors, master cylinders, valves, fittings and brake lines. Motorsport, street-performance and specialized applications require components selected for the complete braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15425-D
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Type III Anodize
• Hat offset (not axle-flange offset): 0.920 in
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: SX6R
• Pad compound: BP-10

Fitment & Compatibility

For the listed fifth-generation Chevrolet Camaro front brake configurations, with individual trim and brake-package limits across 2010–2015. The 2015 rows separately identify LS, LT, SS, Z/28 and ZL1 conditions; do not infer every trim is listed for every year. Six-piston SX6R calipers work with 14.00 × 1.25-inch dynamic lug-drive rotors and separate Type III hard-anodized aluminum hats. Slotted configurations use ProMatrix pads; drilled-and-slotted configurations use BP-10. Front hoses 220-11382 are included. DS-1289 requires rounding the original brake-line bracket opening to accept the bulkhead fitting. Verify the original brake package and the wheel drawing; nominal minimum wheel guidance is 18 inches.

Listed models: Camaro. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Our team at PMB Performance has over 20 years of parts and fitment experience. The existing component number and brake-system details help us check the match.
