Product details

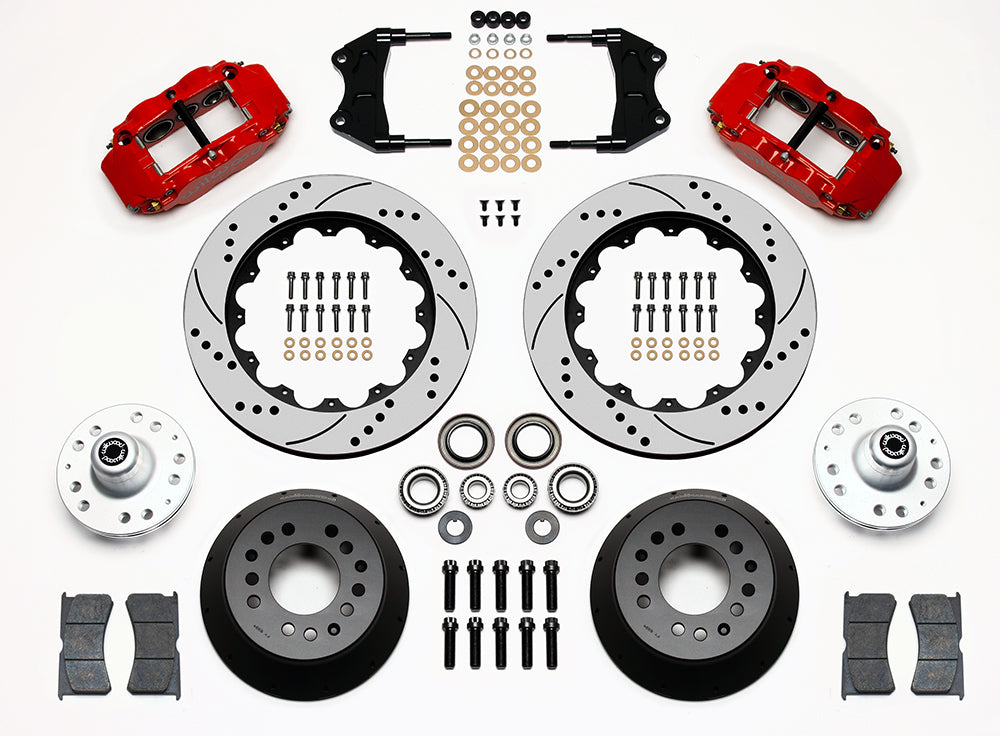

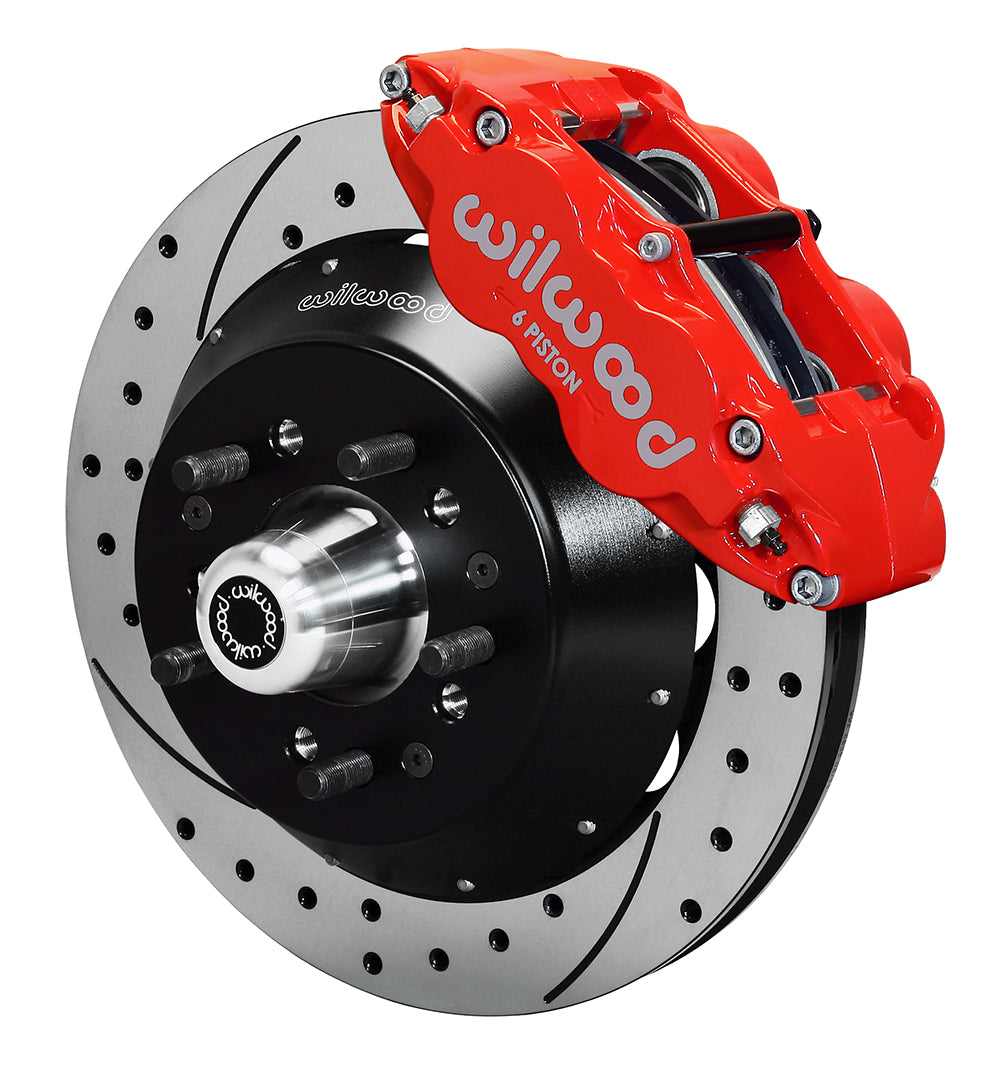

Red Superlite 6R calipers, drilled-and-slotted rotors and hubs form this ProSpindle front kit. Confirm the spindle version and wheel drawing. Camarillo, California is home to Wilwood Engineering, founded by Bill Wood in 1977. Wilwood designs and manufactures disc brake systems, with calipers, brake rotors, master cylinders, fittings, valves and lines serving motorsport, street-performance and specialized uses. Select individual parts to meet the needs of the complete brake system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15410-DR
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 1.10 in; 27.94 mm
- Rotor Material: Spec-37 Iron
- Surface Type: SRP Drilled & Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Included wheel-stud thread: 1/2-20 thread
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 1.880 in
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: Yes
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Red
- Caliper Finish: Red Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: dust-sealed Superlite 6R
- Pad compound: BP-10
Fitment & Compatibility
This is a front brake and hub package for the specified Wilwood ProSpindle installation. A standard-height ProSpindle and a drop ProSpindle use different mounting procedures in DS-1298; identify the spindle before assembling the bracket and spacer stack. Identify the installed ProSpindle version before selecting this package. Aluminum hubs, bearings, seals and 1/2-20 studs are included, with 5 × 4.50 and 5 × 4.75-inch wheel patterns. The documented wheel-face change is 0.68 inch outward; hat offset is a different dimension. Hoses, master cylinder and booster are separate. Select the hydraulic connection and line route for the complete installation, and check the clearance drawing against the nominal 18-inch wheel guidance.
Wilwood product specifications · Installation instructions
For fitment assistance backed by more than 20 years of experience, share the installed brake configuration with PMB Performance before ordering.
