Product details

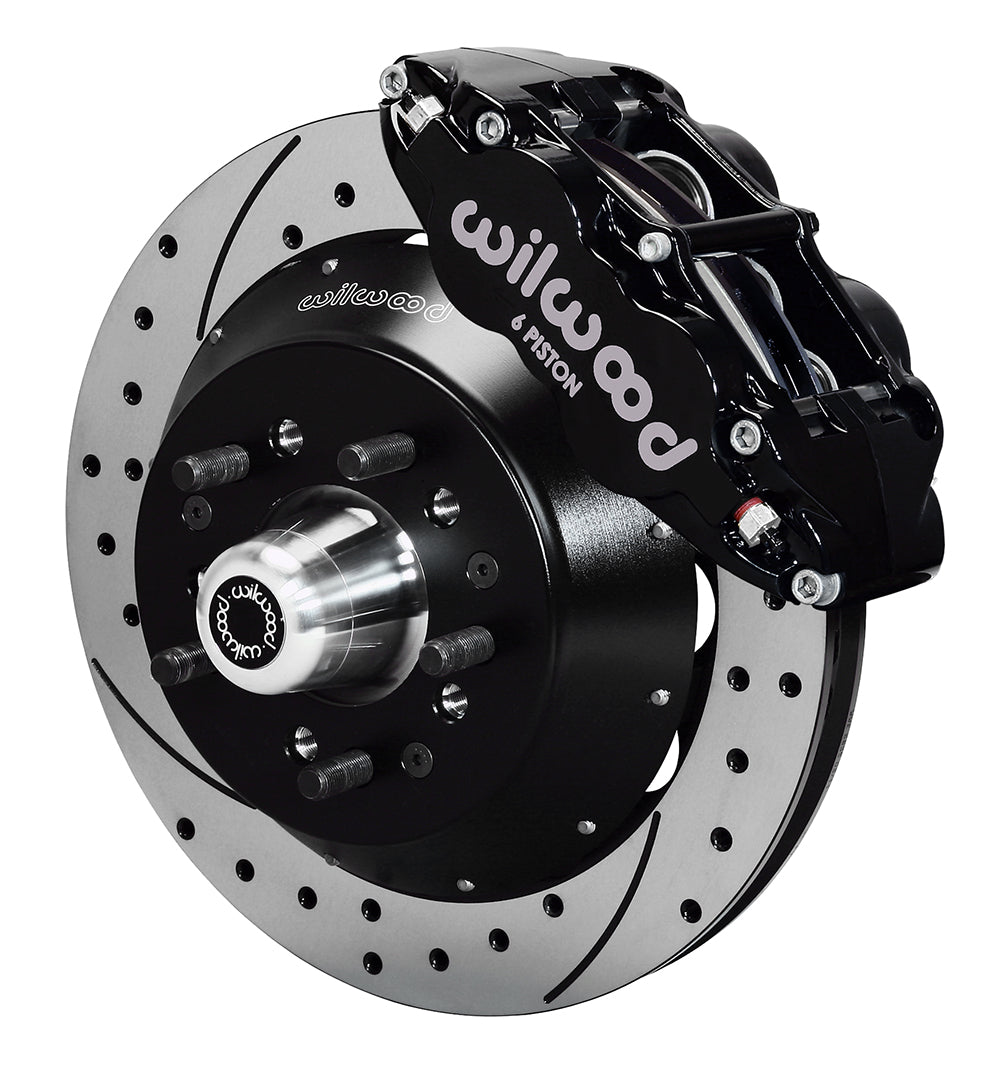

For the specified ProSpindle, black six-piston calipers pair with drilled 14-inch rotors and hubs. Select hydraulic lines for the actual installation. Disc brake system design and manufacturing are Wilwood Engineering’s focus. Bill Wood founded the Camarillo, California company in 1977; its range spans brake rotors, master cylinders, calipers, fittings, valves and brake lines for motorsport, specialized and street-performance applications. The choice of individual components depends on the complete brake system.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15410-D
- Kit classification: Front Brake Kits - Street Performance
- Axle position: Front Kits
- Brake Type: Disc
- Selling unit: Sold as a kit.
- Pistons per service caliper: 6
- Service-caliper piston material: Stainless
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: dust-sealed Superlite 6R
- Pad compound: BP-10
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 1.10 in; 27.94 mm
- Rotor Material: Spec-37 Iron
- Surface Type: SRP Drilled & Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
- Included wheel-stud thread: 1/2-20 thread
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 72 CV
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 1.880 in
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: Yes
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
Fitment & Compatibility

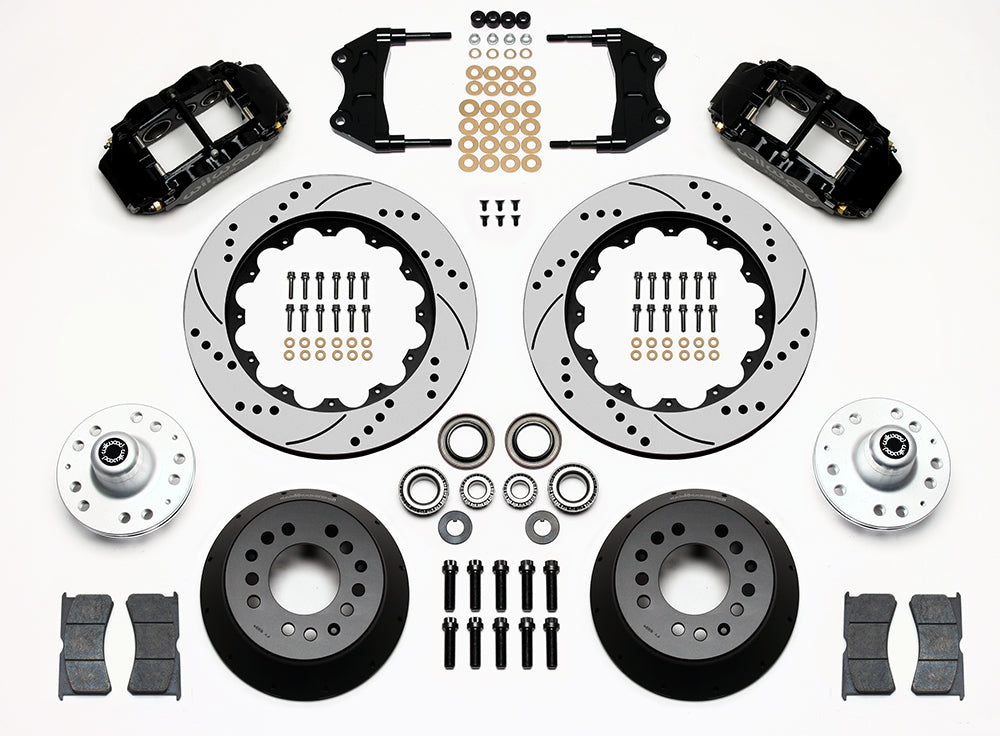

This is a front brake and hub package for the specified Wilwood ProSpindle installation. A standard-height ProSpindle and a drop ProSpindle use different mounting procedures in DS-1298; identify the spindle before assembling the bracket and spacer stack. Identify the installed ProSpindle version before selecting this package. Aluminum hubs, bearings, seals and 1/2-20 studs are included, with 5 × 4.50 and 5 × 4.75-inch wheel patterns. The documented wheel-face change is 0.68 inch outward; hat offset is a different dimension. Hoses, master cylinder and booster are separate. Select the hydraulic connection and line route for the complete installation, and check the clearance drawing against the nominal 18-inch wheel guidance.
Wilwood product specifications · Installation instructions
With more than 20 years of parts and fitment experience, PMB Performance can help compare the existing brake assembly with the required component.
