Wilwood Red Six-Piston Front Brakes with Drilled Rotors and Hubs for Listed GM and Ridetech Pin Spindles

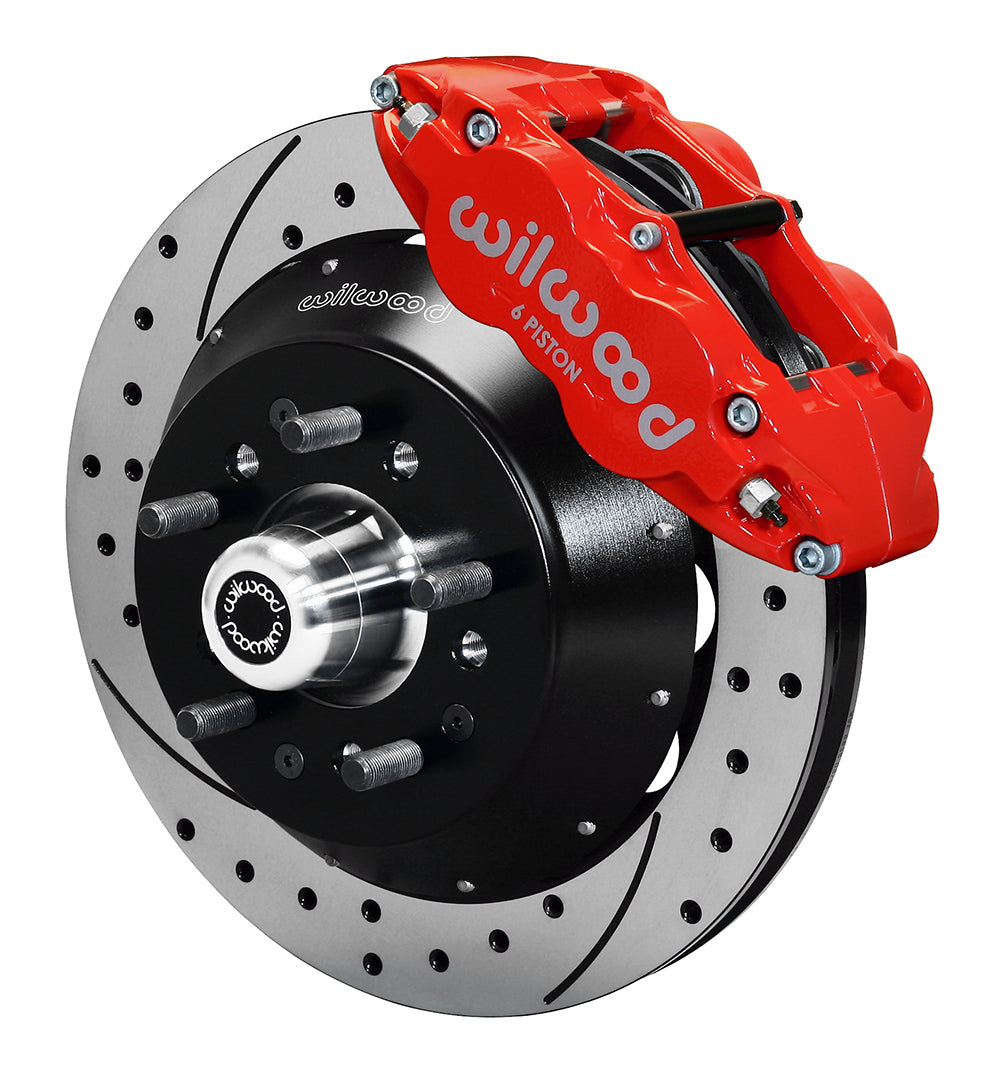

Red Superlite 6R calipers, 14-inch drilled rotors and hubs form this front kit. Check the listed stock or converted spindle; model name is insufficient. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Red dust-sealed Superlite 6R calipers with SRP drilled-and-slotted rotors make this a street-focused kit that shows through open wheels. The dust seals help keep grit off the pistons on a daily-driven car. Allow for 18-inch wheels or larger. If you plan on track use, 140-15409-R keeps the red calipers with GT slotted rotors, which handle sustained heat better than drilled faces.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15409-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: dust-sealed Superlite 6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.10 in; 27.94 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.750 in

Fitment & Compatibility

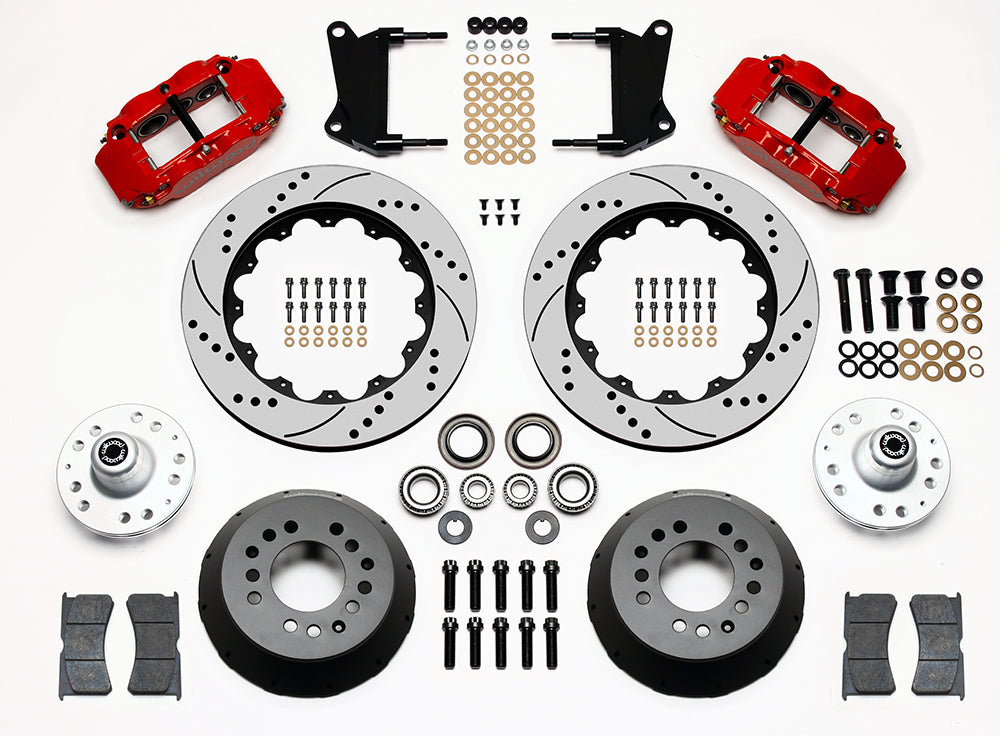

Compatibility depends on the actual spindle arrangement in the table. Some entries use the specified original GM disc or drum spindle; other GM, Ford and Mercury vehicles require the listed Ridetech pin-spindle conversion. Do not infer original-spindle compatibility from the broad model list. DS-1297 calls out machining on applicable spindles: upper anchor-hole drilling/tapping and, where directed, lower spindle/steering-arm hole enlargement, plus caliper-ear clearance. Have the relevant spindle inspected and machined by a qualified professional. The kit includes aluminum hubs, bearings, seals and 1/2-20 studs, with dual 5 × 4.50/4.75-inch wheel patterns and a 0.38-inch outward wheel-face change. Hoses are separate; the 220-7056 reference requires the correct length and fittings for the actual vehicle. Use the wheel template with the nominal 18-inch minimum guidance.

Listed models: Falcon; Comet; Chevy II; Corvette; Skylark; Special; Sportwagon; Chevelle; El Camino; Malibu; Mustang; 442; Cutlass; F85; Vista Cruiser; Acadian; Beaumont; GTO; LeMans; Tempest; Gran Sport; F-100; Camaro; Cutlass Supreme; Firebird; GS 350; GS 400; Nova; Grand Prix; GS; GS 455; Monte Carlo; Sprint; Ventura; Apollo; Omega. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
