Wilwood 14-Inch GT Rotor Front Kit with Red Dust-Sealed Calipers for 2004–2006 Pontiac GTO

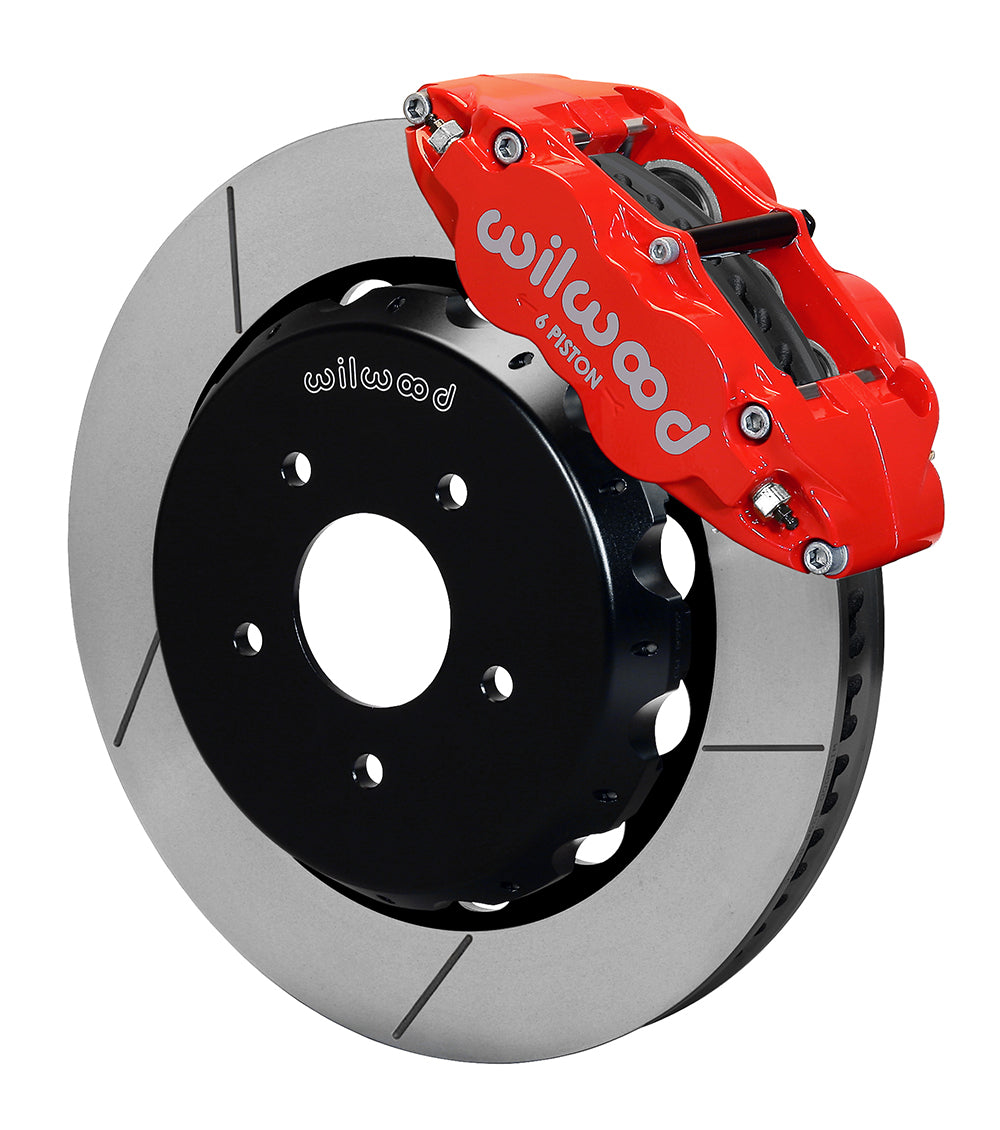

Red Superlite 6R calipers, slotted GT rotors and braided lines form this GTO front kit. Match the wheel drawing and year-specific mounting. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15408-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: dust-sealed Superlite 6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.500 in; 12.70 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.000 in

Fitment & Compatibility

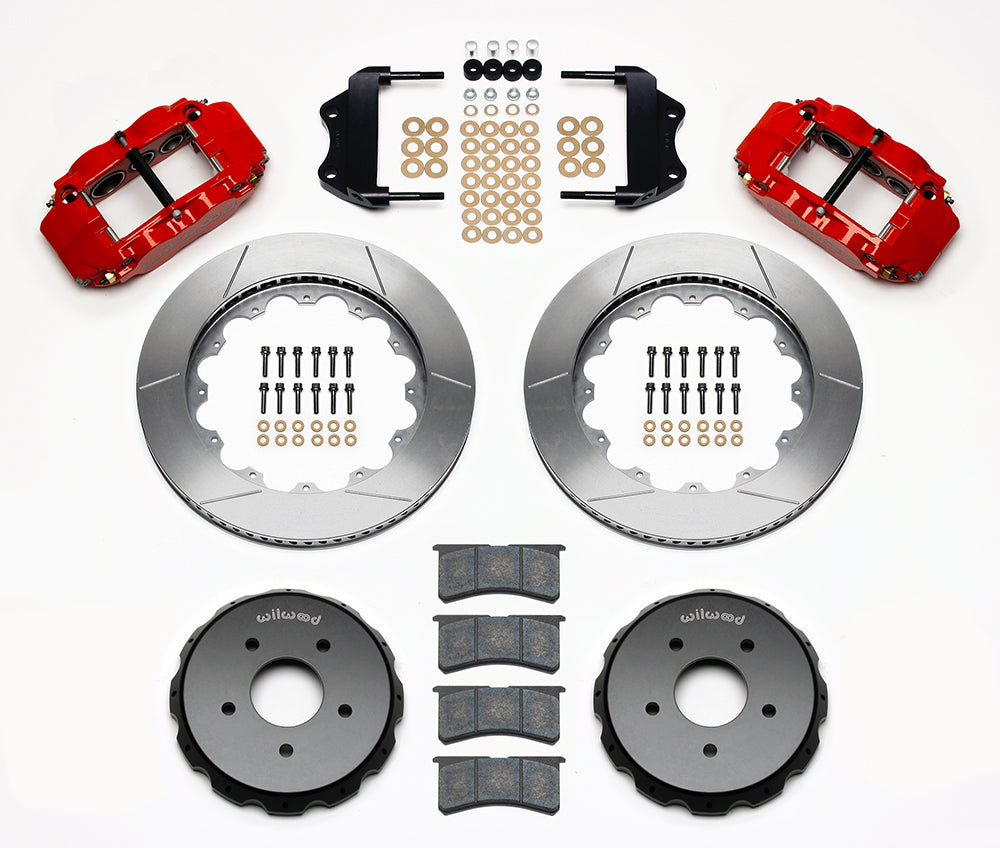

For the listed 2004–2006 Pontiac GTO front applications, retaining the original hubs. The six-piston dust-sealed Superlite calipers use BP-10 pads and 14.00 × 1.25-inch rotors. Follow DS-1296's distinct sleeve and shim arrangement for 2004 mounting, along with the required original hard-line positioning and ABS-wire bracket relocation. Front hose kit 220-14177 is included even though hoses are not visible in the supplied laid-out photograph. The hat's 5 × 4.72-inch mounting pattern and clearance holes are dimensional references, not a stud-thread specification. Check the actual wheel with the drawing; 18 inches is minimum diameter guidance, not automatic clearance.

Listed models: GTO. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
