Wilwood Black Superlite 6R Front Brake Kit for 2004–2006 Pontiac GTO, 14-Inch GT Rotors

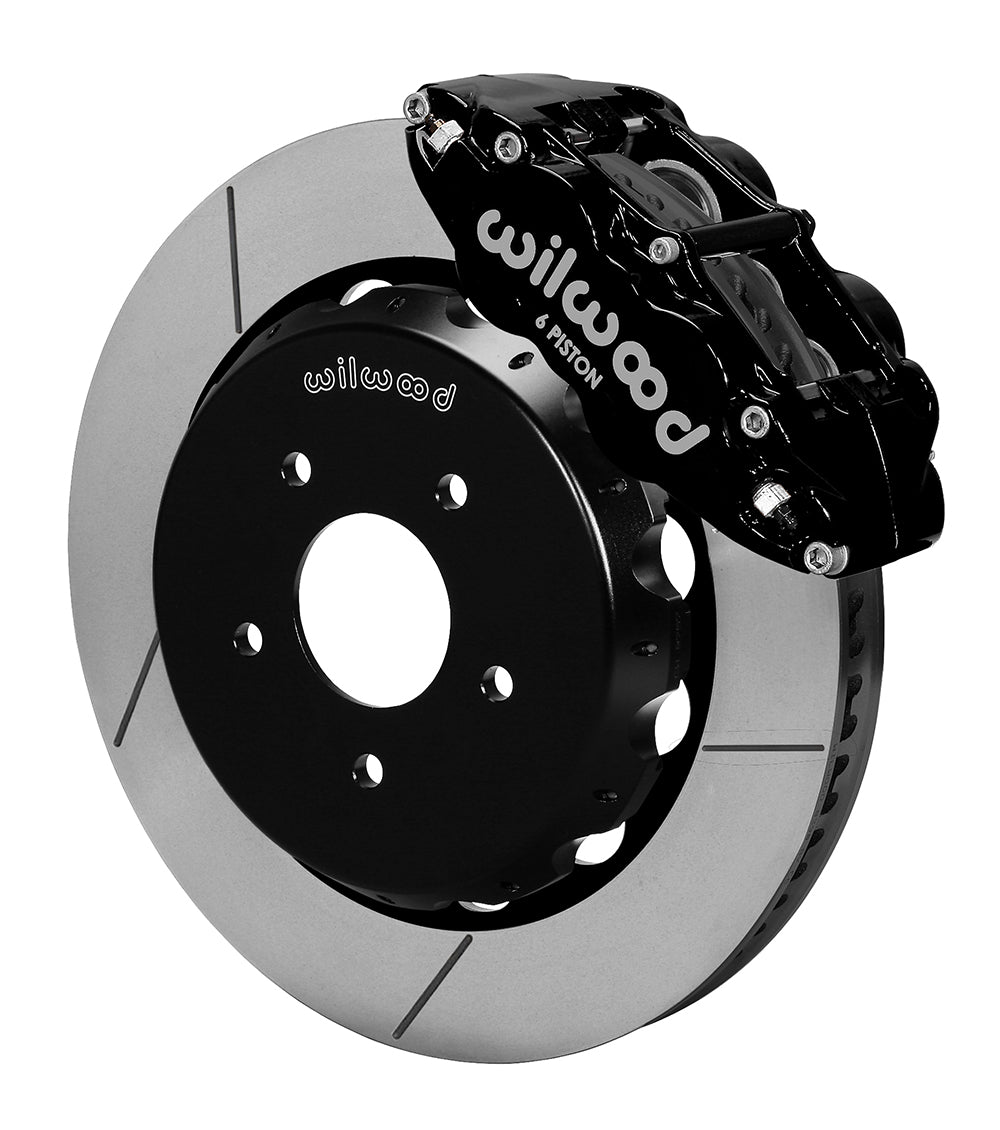

For the 2004–2006 GTO, black six-piston calipers pair with 14-inch GT rotors and included hoses. Follow the separate 2004 sleeve and shim instructions. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15408
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.25 in; 31.75 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.72 in; 5 x 119.89 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.500 in; 12.70 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.000 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: dust-sealed Superlite 6R
• Pad compound: BP-10

Fitment & Compatibility

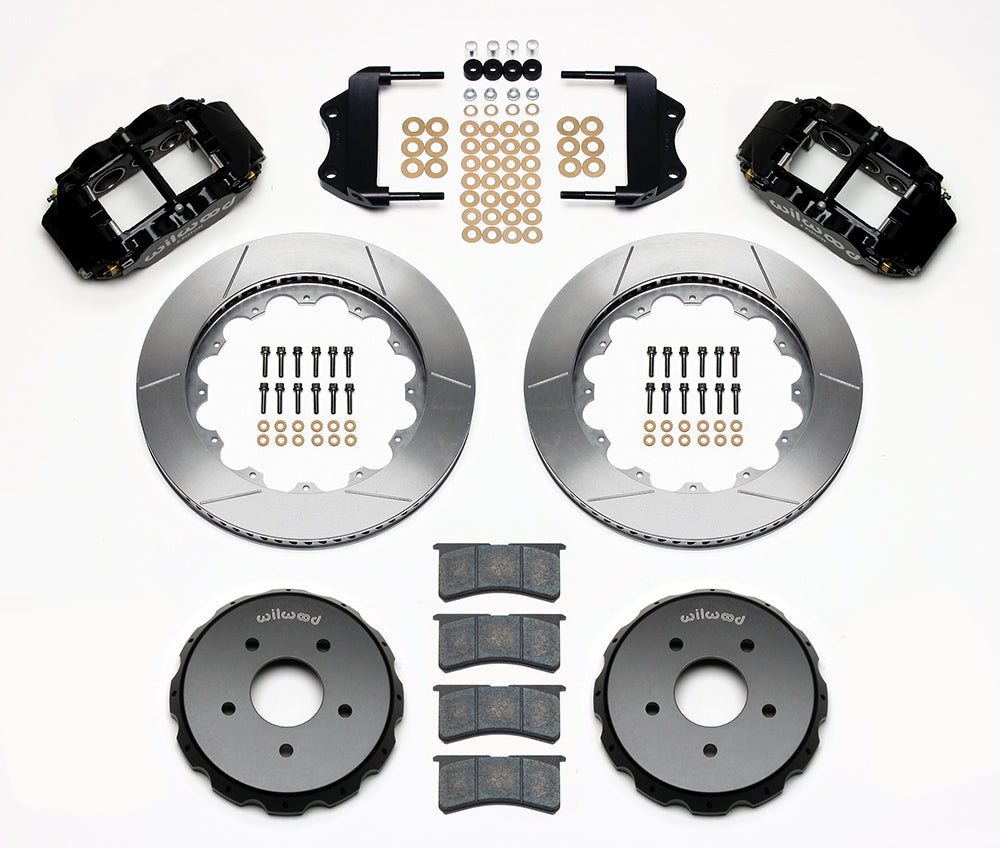

For the listed 2004–2006 Pontiac GTO front applications, retaining the original hubs. The six-piston dust-sealed Superlite calipers use BP-10 pads and 14.00 × 1.25-inch rotors. Follow DS-1296's distinct sleeve and shim arrangement for 2004 mounting, along with the required original hard-line positioning and ABS-wire bracket relocation. Front hose kit 220-14177 is included even though hoses are not visible in the supplied laid-out photograph. The hat's 5 × 4.72-inch mounting pattern and clearance holes are dimensional references, not a stud-thread specification. Check the actual wheel with the drawing; 18 inches is minimum diameter guidance, not automatic clearance.

Listed models: GTO. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.
