Wilwood GT-Slotted 14-Inch Front Conversion for Early Ford/Mercury with Red Dust-Sealed Superlite Calipers

Slotted GT rotors, BP-10 pads and red six-piston calipers form this early Ford/Mercury front conversion. Wheel offset increases by the specified 0.25 inch. Bill Wood established Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and builds disc brake systems for motorsport, street-performance and specialized uses, including calipers, rotors, master cylinders, valves, fittings and brake lines. Each part must match the requirements of the whole braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15407-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.10 in; 27.94 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.620 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: dust-sealed Superlite 6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No

Fitment & Compatibility

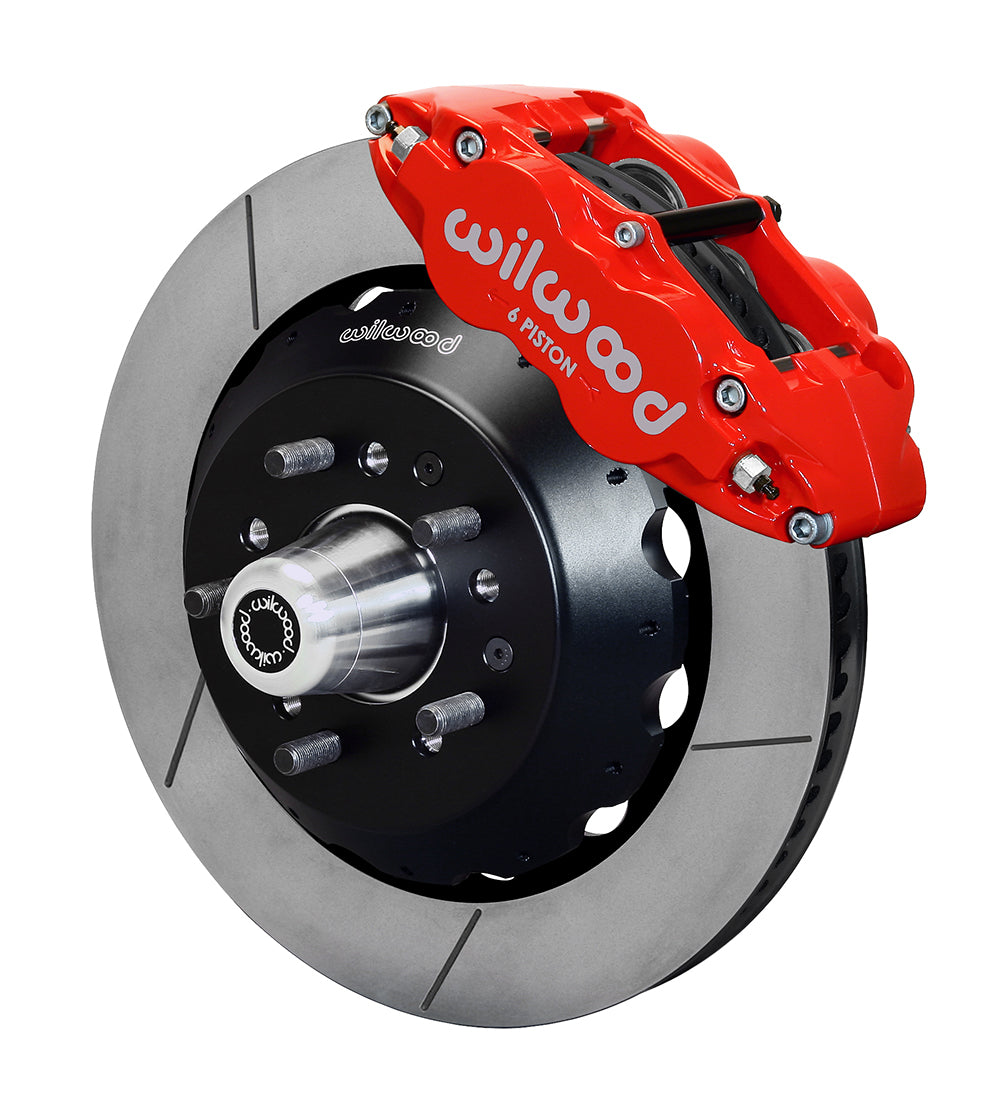

Red six-piston Superlite 6R calipers with dust seals operate the 14.00 × 1.10-inch GT-slotted front rotors. The required early Ford/Mercury V8 spindle is defined by the individual vehicle rows: 1965–1967 Mustang entries include their specified disc/drum options, but 1968–1969 Mustang entries require drum spindles. The early Falcon, Ranchero, Comet and Cyclone V8 conditions also remain essential. Supplied aluminum hubs, bearings, seals and 1/2-20 studs provide five-on-4.50 and five-on-4.75-inch wheel patterns, moving the wheel mounting face outward by 0.25 inch. That change is separate from rotor-hat offset. Plan for separate flexlines; the exact DS-1295 installation sheet and current kit-associated list identify 220-12168, subject to correct routing and fitting verification. Earlier generic line numbers are not interchangeable by assumption. Identify the installed spindle and check the actual wheel with the clearance diagram; nominal minimum diameter guidance is 18 inches.

Listed models: Falcon; Ranchero; Comet; Fairlane; Cyclone; Mustang; Caliente; Cougar; Torino; Montego. See the supplied table below for each year, submodel and equipment condition.
