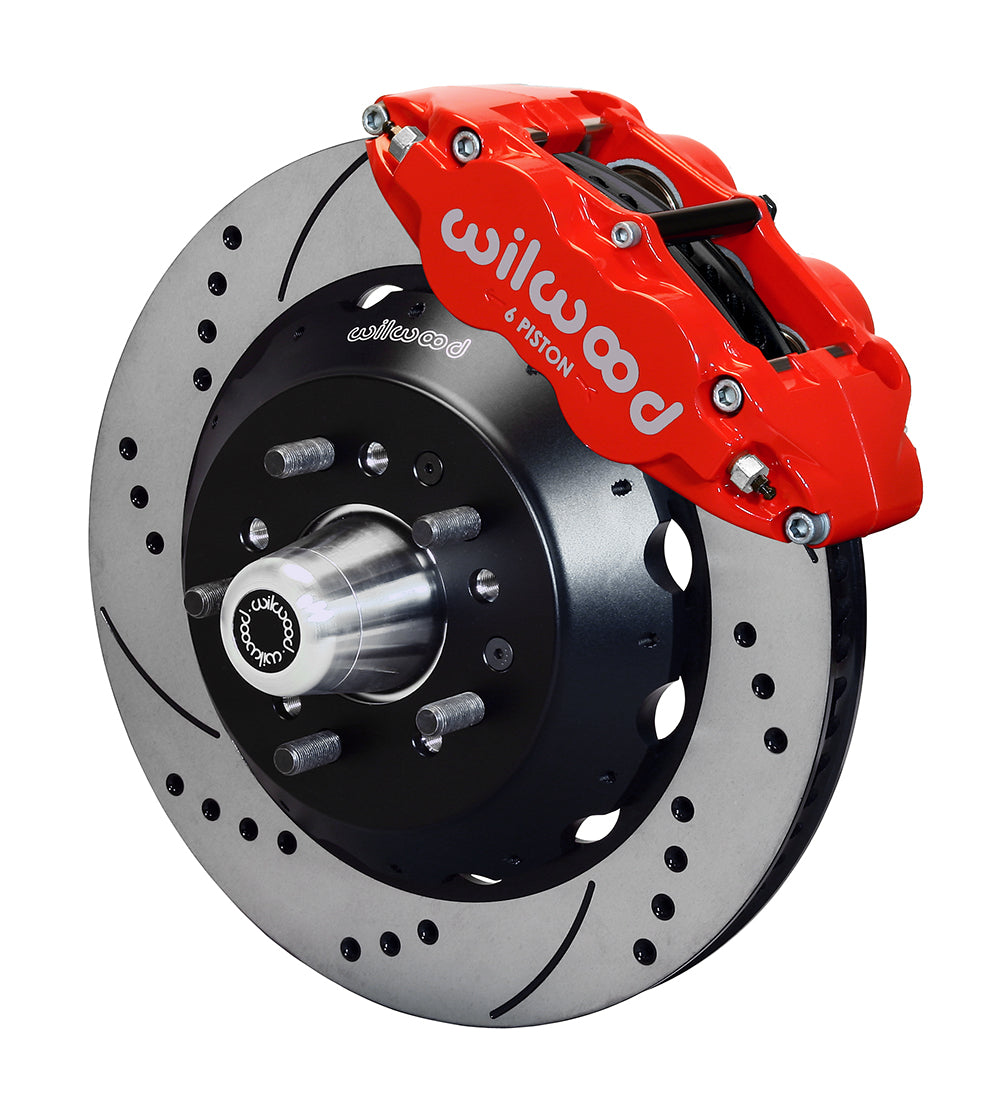

Wilwood Red Six-Piston Front Brakes with 14-Inch Drilled Rotors for Listed 1963–1969 Ford/Mercury Spindles

Red Superlite 6R calipers pair with drilled 14-inch rotors and dual-pattern hubs. Check V8 spindle requirements and Mustang drum/disc limits. Since its founding by Bill Wood in 1977, Wilwood Engineering has focused on disc brake system design and manufacturing. Based in Camarillo, California, it offers calipers, rotors, brake lines, master cylinders, fittings and valves for motorsport, street-performance and specialized installations. Choose components to satisfy the requirements of the entire braking system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15407-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: dust-sealed Superlite 6R
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Rotor Outside Diameter: 14.00 in; 355.6 mm
• Rotor Thickness: 1.10 in; 27.94 mm
• Rotor Material: Spec-37 Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 72 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.620 in

Fitment & Compatibility

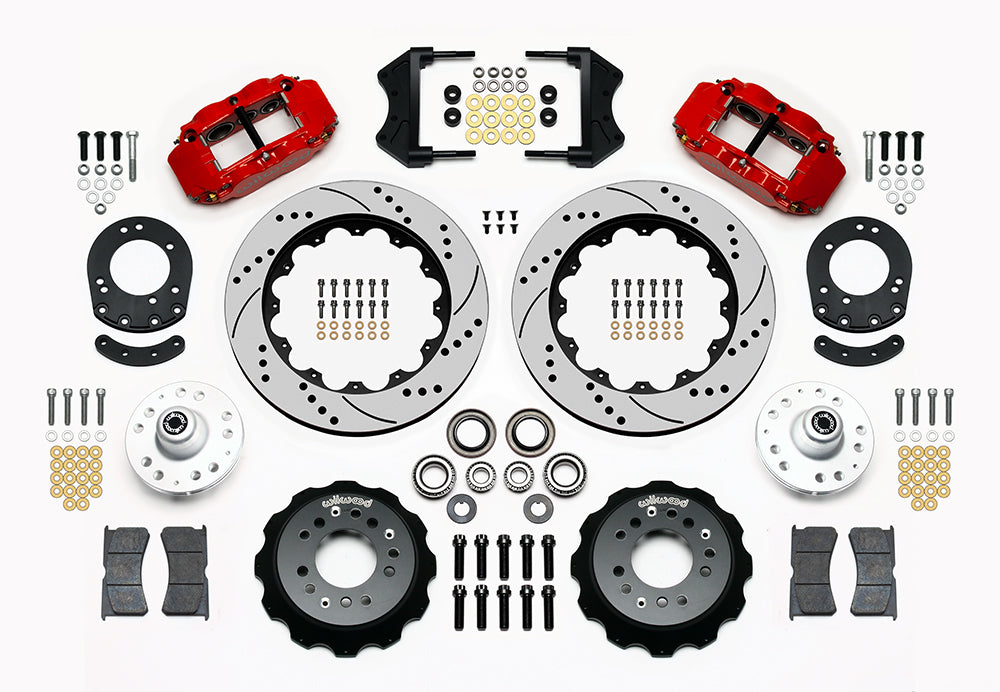

The supplied early Ford/Mercury V8 applications have precise spindle limits. In particular, listed 1965–1967 Mustangs include the stated drum/disc arrangements, while 1968–1969 Mustang coverage is for drum spindles only. Early Falcon, Ranchero, Comet and Cyclone entries include their stated V8 restrictions. Original vehicle identity does not establish the installed spindle. This six-piston dust-sealed conversion combines 14.00 × 1.10-inch rotors with separate hats, aluminum hubs, bearings, seals and 1/2-20 studs. The hubs offer 5 × 4.50 and 5 × 4.75-inch wheel patterns and increase the wheel-face offset by 0.25 inch. Hoses are separate; DS-1295 and the current associated-parts listing specify 220-12168, with route and end fitting verification still required. Follow that kit-specific instruction rather than treating older generic hose references as interchangeable. Check the nominal 18-inch wheel guidance against the clearance drawing.

Listed models: Falcon; Ranchero; Comet; Fairlane; Cyclone; Mustang; Caliente; Cougar; Torino; Montego. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
