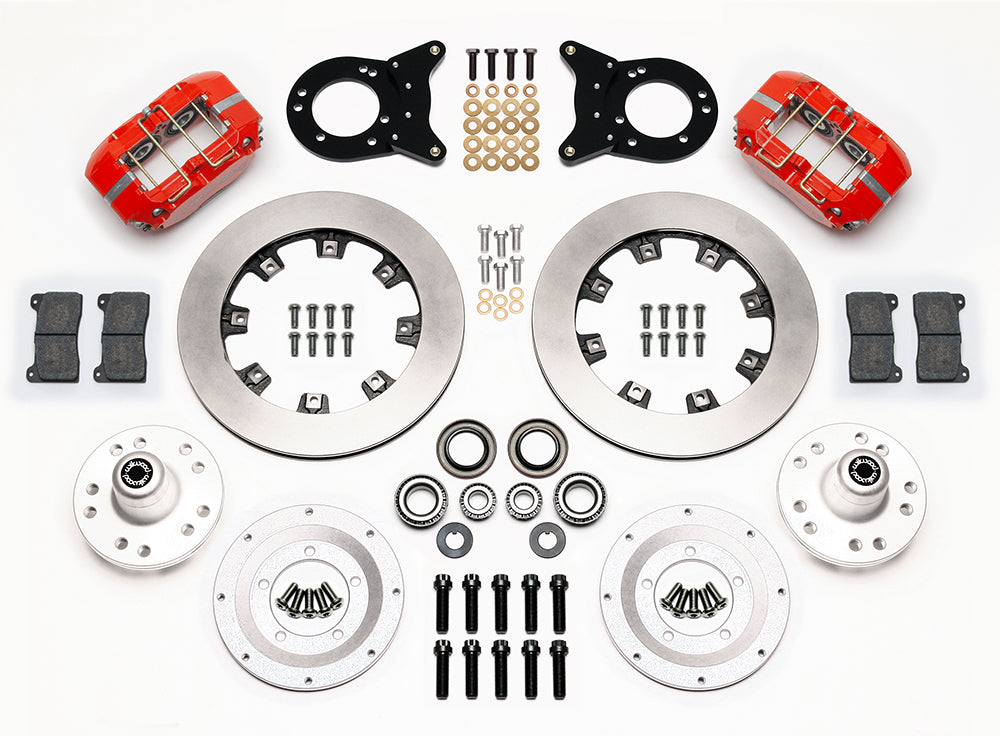

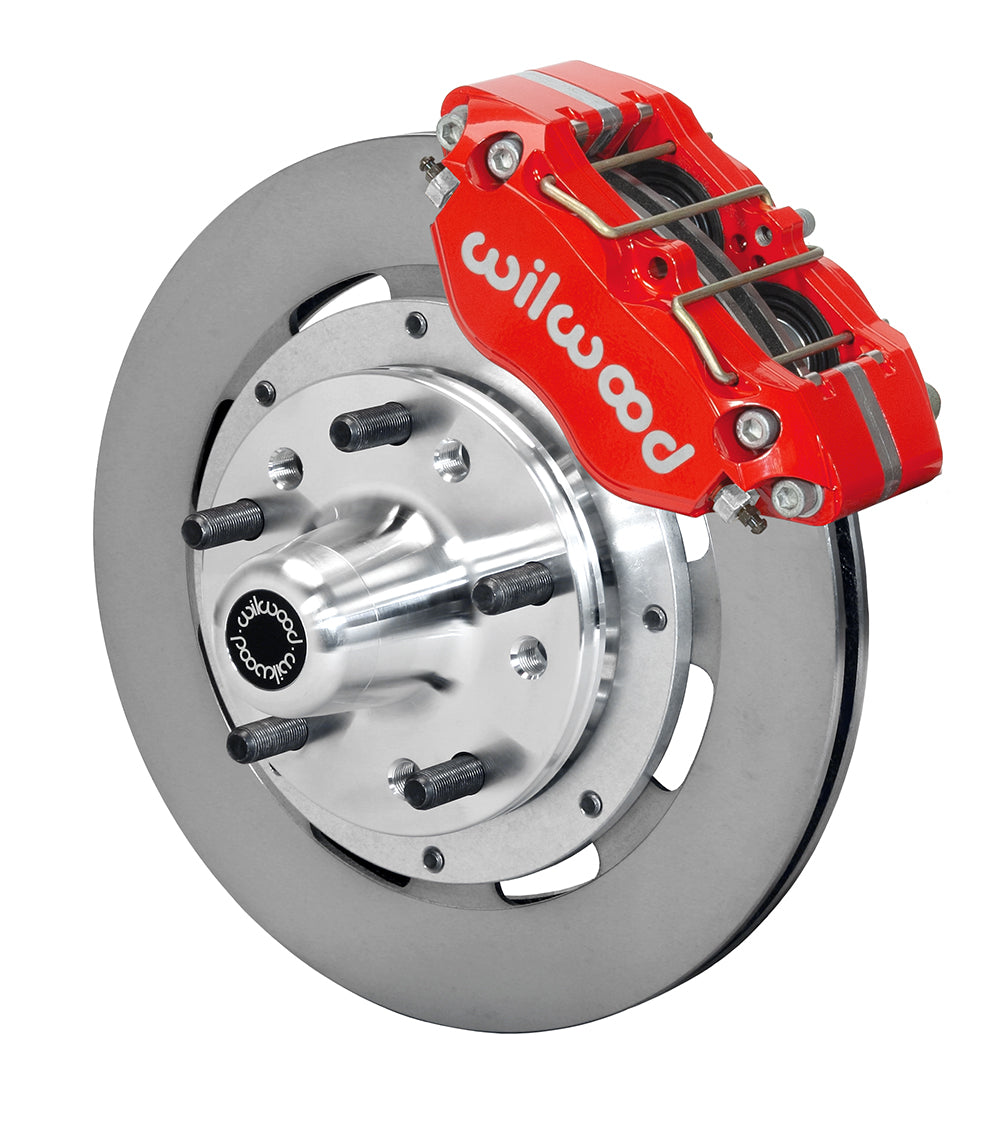

Wilwood Plain 12.19-Inch Front Rotors with Red Dynapro Calipers and Aluminum Hubs for Selected 1970–1974 Ford/Mercury

Red four-piston calipers and plain rotors suit selected 1970–1974 Ford/Mercury spindles. Review disc-spindle machining before ordering. Established in 1977 by Bill Wood, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems. Its master cylinders, calipers, brake rotors, lines, fittings and valves support motorsport, street-performance and specialized applications, with each component selected for its role in the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15406-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: Yes
• Pistons per service caliper: 4
• Service-caliper piston material: Aluminum
• Service-caliper mounting: Lug
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynapro Dust-Boot
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: No
• Rotor Outside Diameter: 12.19 in; 309.63 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Bolt Circle Diameter: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm
• Included wheel-stud thread: 1/2-20 thread
• Rotor surface finish: Plain
• Rotor vane / construction reference: 32 V

Fitment & Compatibility

Use only the specific Ford/Mercury spindle and equipment combinations in the table. The selected applications span 1970–1974, with different year ranges for Mustang, Cougar, Falcon, Maverick, Comet, Fairlane, Ranchero and Torino. The 1970 Falcon/Maverick drum-brake entries start at the stated August 25, 1969 production date. Factory disc-spindle installations require three mounting holes to be drilled and tapped as DS-1294 specifies; professional machining and possible original caliper-ear clearance work are required. Drum and disc spindles use different bracket-hole arrangements. Aluminum hubs, bearings, seals and 1/2-20 wheel studs are included; the new hubs provide 5 × 4.50 and 5 × 4.75-inch patterns and move the wheel face outward 0.09 inch. Flexlines are separate; check the 220-9195 reference against the actual route and fittings. Any master-cylinder conversion also needs the correct pushrod arrangement. The wheel template controls clearance even where a 15-inch wheel is nominally permitted.

Listed models: Fairlane; Falcon; Maverick; Mustang; Ranchero; Torino; Cougar; Cyclone; Montego; Comet. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.
