Wilwood 11-Inch Plain-Face Front Brake Conversion for Jaguar Series I E-Type with Red Calipers

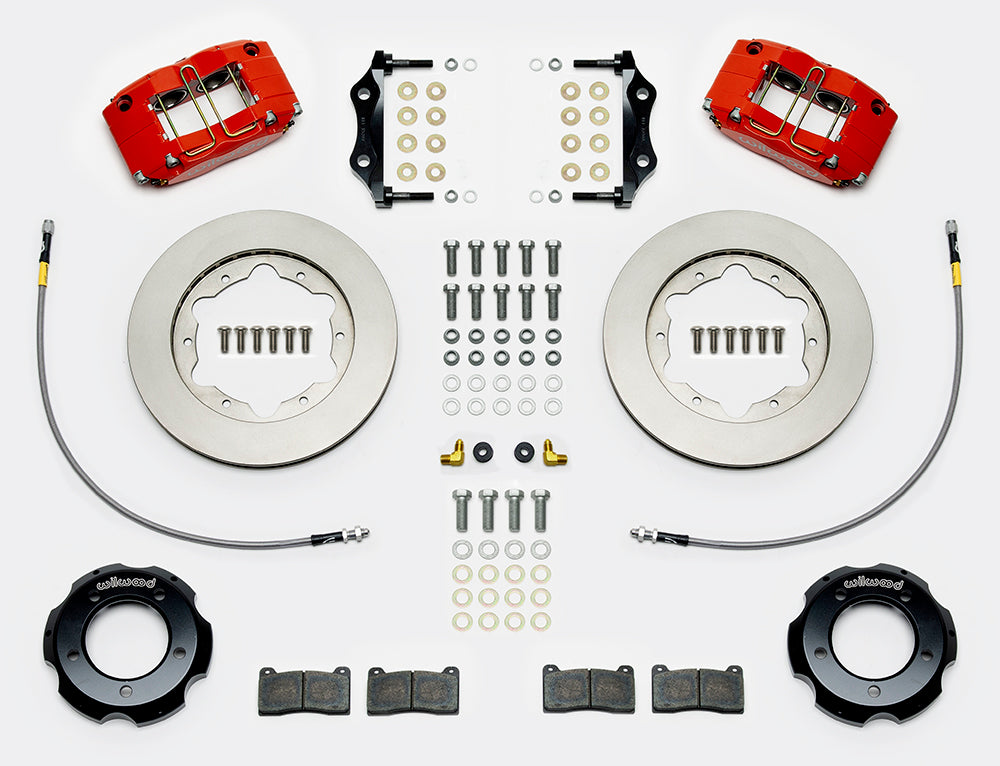

This Series I Jaguar front conversion supplies red four-piston calipers, plain-face vented rotors and braided hoses. Check the original hub interface. Wilwood Engineering’s work covers the design and manufacture of disc brake systems for motorsport, street-performance and specialized applications. Bill Wood founded the company in 1977 in a business now based in Camarillo, California. Its calipers, master cylinders, brake rotors, brake lines, valves and fittings must be selected around the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15395-R
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Hat-to-original-hub mounting circle (not wheel lug pattern): 5 x 4.38 in; 5 x 111.25 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.450 in; 11.43 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 30 V
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 0.900 in
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynapro dust-sealed
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes

Fitment & Compatibility

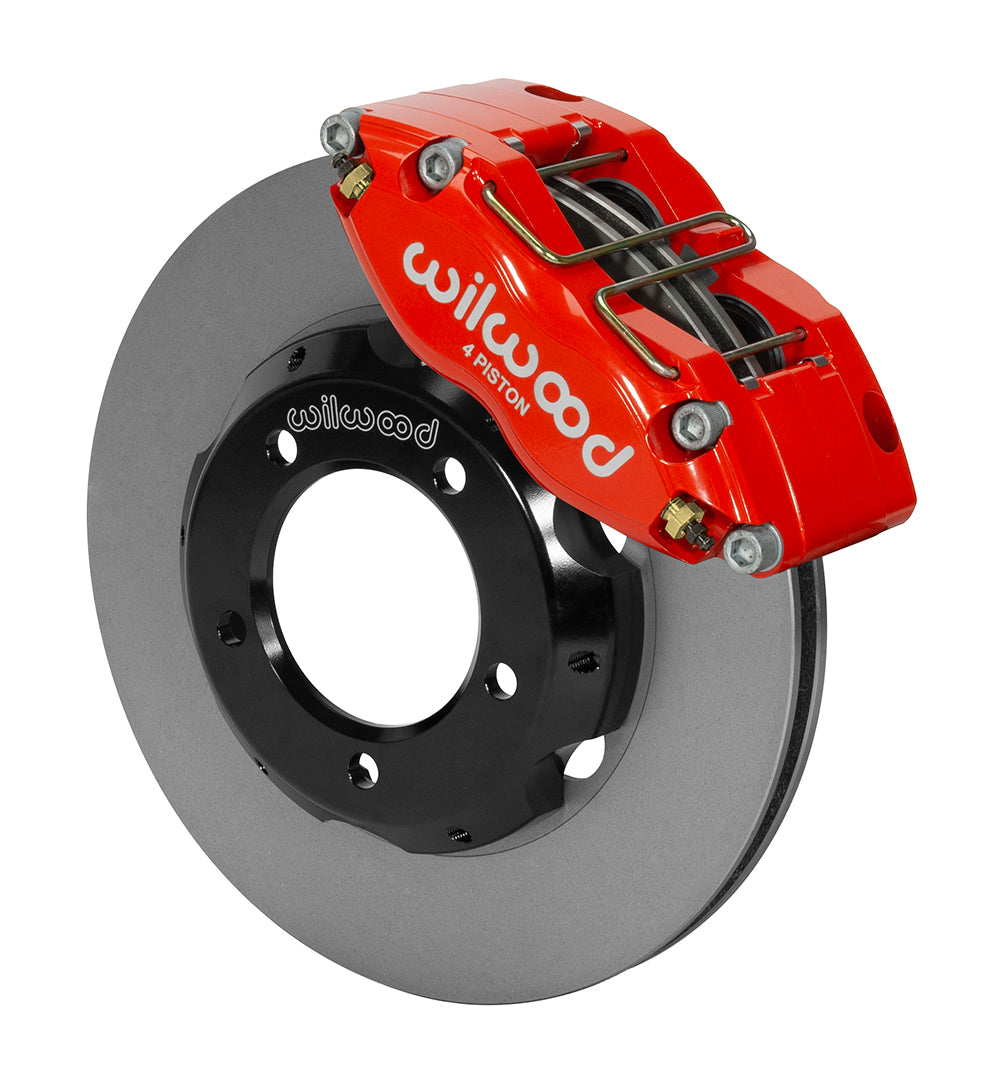

These front brakes are for the listed Jaguar XKE/E-Type Series I applications: 1961–1967 entries plus the specifically listed 1968 Series I configuration. Do not extend the 1968 entry to other E-Type series. Original front hubs are retained, and the supplied hats fasten to those hubs. The catalog's approximately 5 × 4.38-inch circle describes that hat-to-hub attachment, not a replacement wheel lug pattern. Four-piston dust-sealed radial-mount Dynapro calipers use BP-10 pads and 11.00 × 0.81-inch vented rotors. Front hoses 220-15399 are included. Remove the dust shields and follow DS-1293 for the original upright, hub/hat assembly and alignment. Verify wheel clearance with the drawing rather than the nominal 15-inch wheel size alone.

Listed models: XKE. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance brings over 20 years of experience to brake-component selection. Provide the actual hardware specification when the brake system has been modified.
