Wilwood Red Dynapro Front Brakes for Series I XKE with 11-Inch Drilled-and-Slotted Rotors

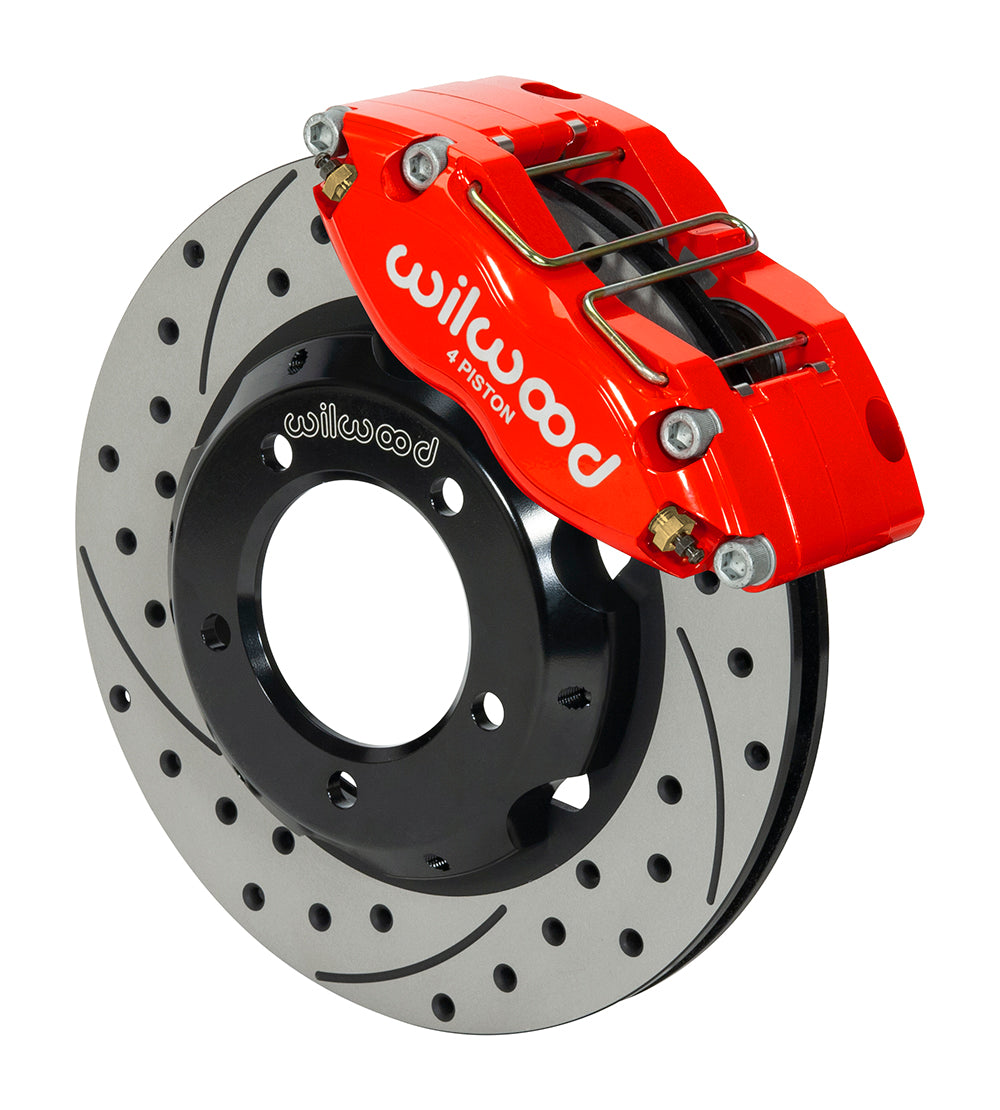

Red radial-mount Dynapro calipers pair with drilled-and-slotted 11-inch rotors for listed Series I Jaguar XKE applications. Original hubs are reused. From Camarillo, California, Wilwood Engineering designs and manufactures disc brake systems and their components. Founded by Bill Wood in 1977, it serves street-performance, motorsport and specialized applications with master cylinders, calipers, brake rotors, valves, fittings and brake lines. All components must suit the requirements of the complete system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15395-DR
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynapro dust-sealed
• Pad compound: BP-10
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: SRP Drilled & Slotted
• Rotor construction: Vented
• Hat-to-original-hub mounting circle (not wheel lug pattern): 5 x 4.38 in; 5 x 111.25 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.450 in; 11.43 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 30 V
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 0.900 in

Fitment & Compatibility

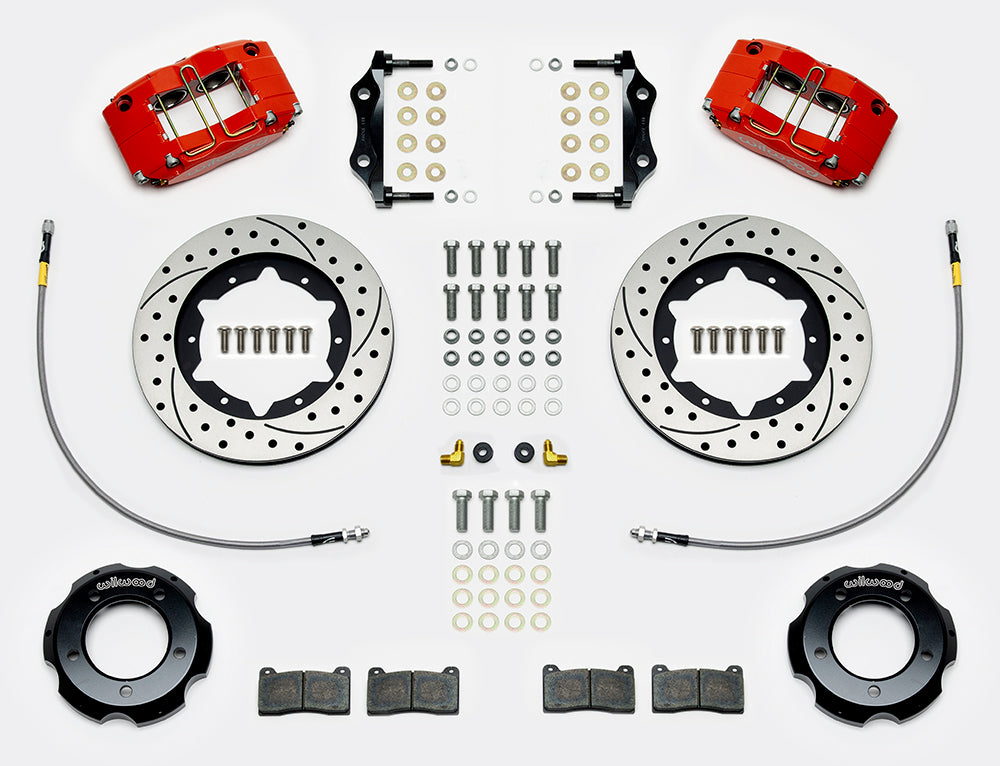

These front brakes are for the listed Jaguar XKE/E-Type Series I applications: 1961–1967 entries plus the specifically listed 1968 Series I configuration. Do not extend the 1968 entry to other E-Type series. Original front hubs are retained, and the supplied hats fasten to those hubs. The catalog's approximately 5 × 4.38-inch circle describes that hat-to-hub attachment, not a replacement wheel lug pattern. Four-piston dust-sealed radial-mount Dynapro calipers use BP-10 pads and 11.00 × 0.81-inch vented rotors. Front hoses 220-15399 are included. Remove the dust shields and follow DS-1293 for the original upright, hub/hat assembly and alignment. Verify wheel clearance with the drawing rather than the nominal 15-inch wheel size alone.

Listed models: XKE. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance has over 20 years of brake-parts experience. Send the installed component details if you need help checking this replacement.
