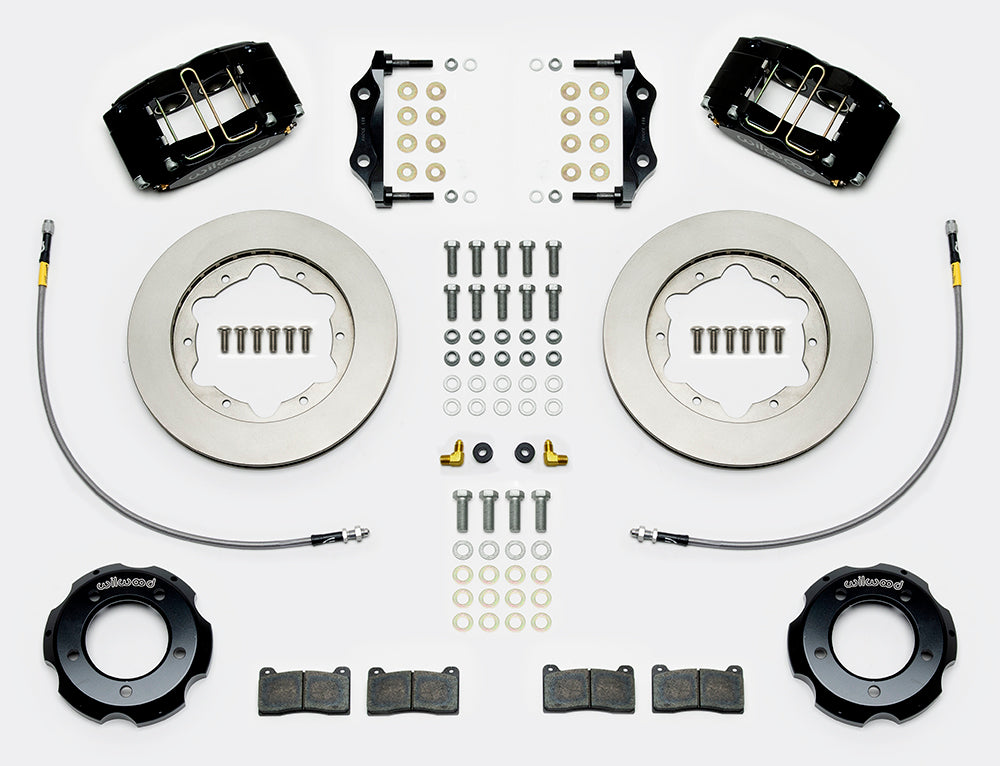

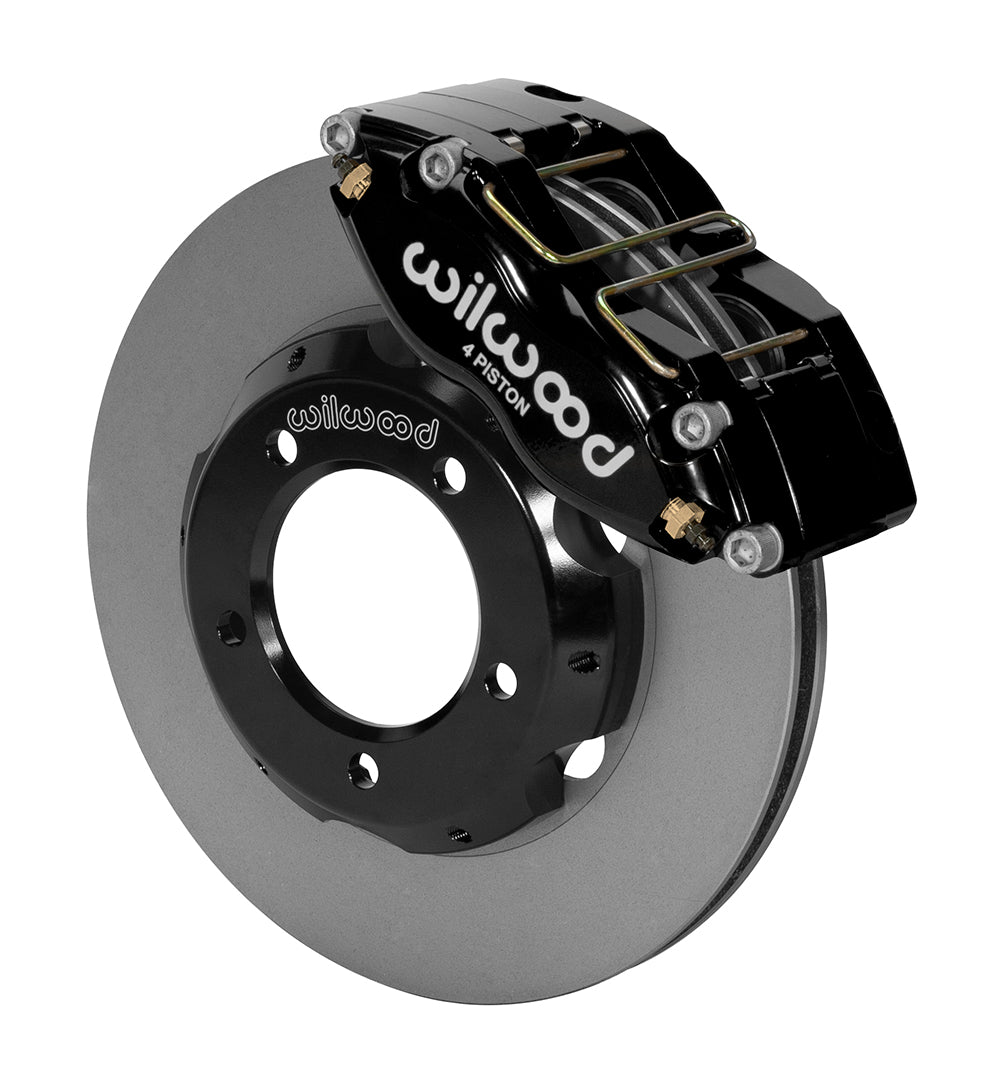

Wilwood Black Dynapro Front Brake Kit with 11-Inch Plain Rotors for Series I Jaguar XKE, 1961–1968 Applications

Retain the original Jaguar front hubs with this black four-piston, 11-inch brake kit. Verify Series I fitment, especially the restricted 1968 applications. Founded in 1977 under Bill Wood, Wilwood Engineering operates from Camarillo, California. The company designs and manufactures disc braking systems and components, including calipers, master cylinders, brake rotors, fittings, valves and brake lines. Its motorsport, specialized and street-performance range requires individual parts matched to the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15395
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 11.00 in; 279.4 mm
• Rotor Thickness: 0.81 in; 20.57 mm
• Rotor Material: Iron
• Surface Type: Plain Face
• Rotor construction: Vented
• Hat-to-original-hub mounting circle (not wheel lug pattern): 5 x 4.38 in; 5 x 111.25 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.450 in; 11.43 mm
• Rotor surface finish: Plain
• Rotor vane / construction reference: 30 V
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 0.900 in
• Pistons per service caliper: 4
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: Dynapro dust-sealed
• Pad compound: BP-10
• Minimum wheel diameter guidance; verify clearance drawing: 15 in; 381 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No

Fitment & Compatibility

These front brakes are for the listed Jaguar XKE/E-Type Series I applications: 1961–1967 entries plus the specifically listed 1968 Series I configuration. Do not extend the 1968 entry to other E-Type series. Original front hubs are retained, and the supplied hats fasten to those hubs. The catalog's approximately 5 × 4.38-inch circle describes that hat-to-hub attachment, not a replacement wheel lug pattern. Four-piston dust-sealed radial-mount Dynapro calipers use BP-10 pads and 11.00 × 0.81-inch vented rotors. Front hoses 220-15399 are included. Remove the dust shields and follow DS-1293 for the original upright, hub/hat assembly and alignment. Verify wheel clearance with the drawing rather than the nominal 15-inch wheel size alone.

Listed models: XKE. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
