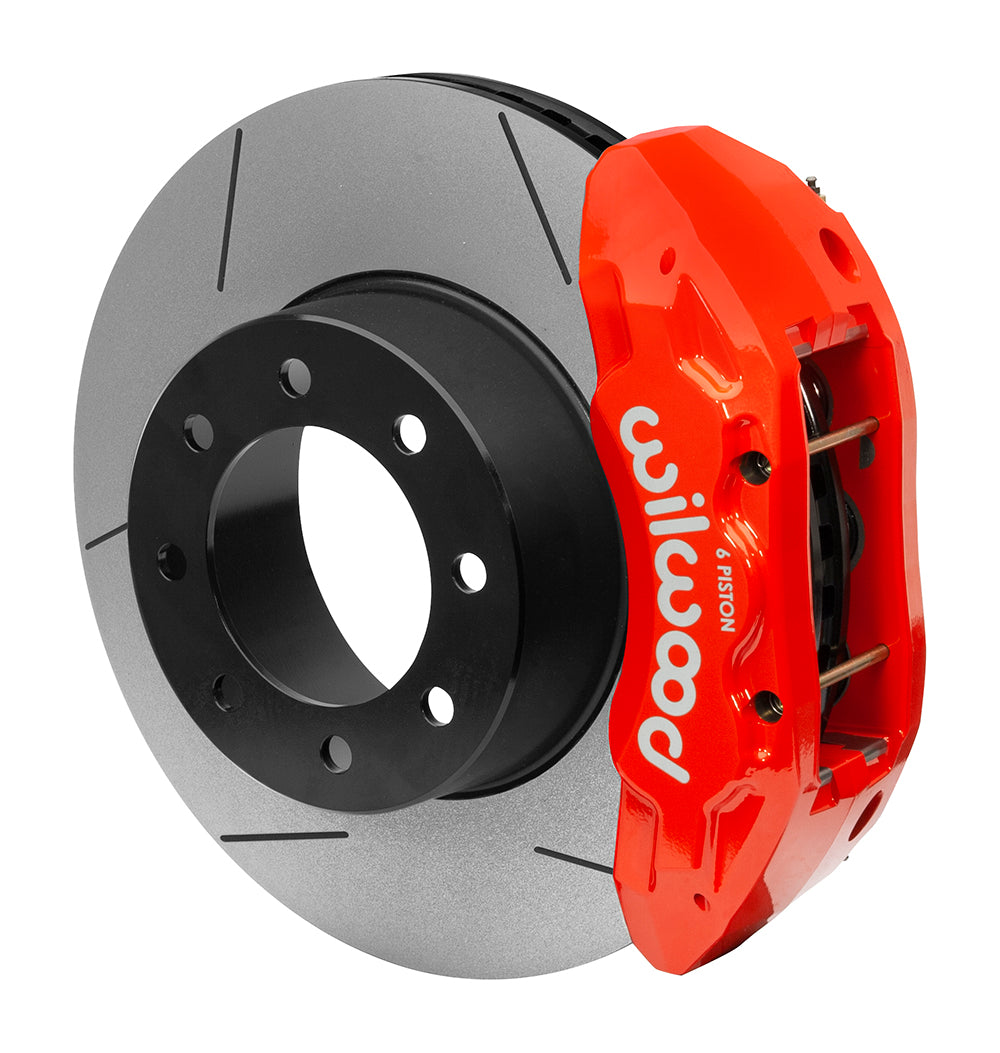

Wilwood Red TX6R Rear Brake Package for Ram 2500/3500 SRW, 16-Inch Rotors, 2014–2018

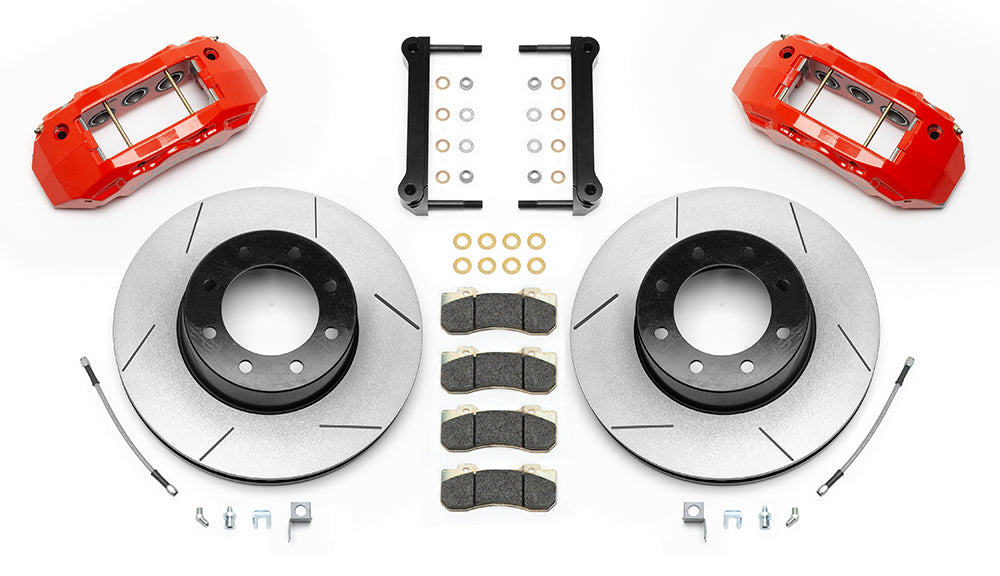

This Ram rear kit combines red TX6R calipers, BP-22 pads and 16-inch rotors. Verify the listed year, single-rear-wheel condition and dust-shield changes. Bill Wood’s 1977 founding of Wilwood Engineering began a disc brake design and manufacturing business based in Camarillo, California. The range includes master cylinders, calipers, rotors, brake lines, valves and fittings for motorsport, street-performance and specialized vehicles. Component selection must consider the complete braking arrangement.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15382-R
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Minimum wheel diameter guidance; verify clearance drawing: 20 in; 508 mm
• Required spindle / rear housing interface: OEM
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Red
• Caliper Finish: Red Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: TX6R
• Pad compound: BP-22
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Rotor Outside Diameter: 16.00 in; 406.4 mm
• Rotor Thickness: 1.38 in; 35.05 mm
• Rotor Material: Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 8 x 6.5 in; 8 x 165.1 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.65 in; 16.51 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 48 V

Fitment & Compatibility

Rear coverage is limited to the listed 2014–2018 Ram 2500/3500 configurations. The 3500 entries are single-rear-wheel applications only; a front kit's dual-rear-wheel coverage does not extend to this rear package. One-piece 16.00 × 1.38-inch iron rotors incorporate the parking-brake hats and retain the original parking mechanism. The rear TX6R calipers use BP-22 pads, and rear hose kit 220-15676 is included. Modify the backing plate/dust shield for caliper clearance as DS-1292 specifies. Check the eight-on-6.50-inch interface, original parking hardware and the wheel template.

Listed models: 2500; 3500. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

PMB Performance can help identify the required brake component with over 20 years of parts experience. Send the kit details and original-part measurements.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
