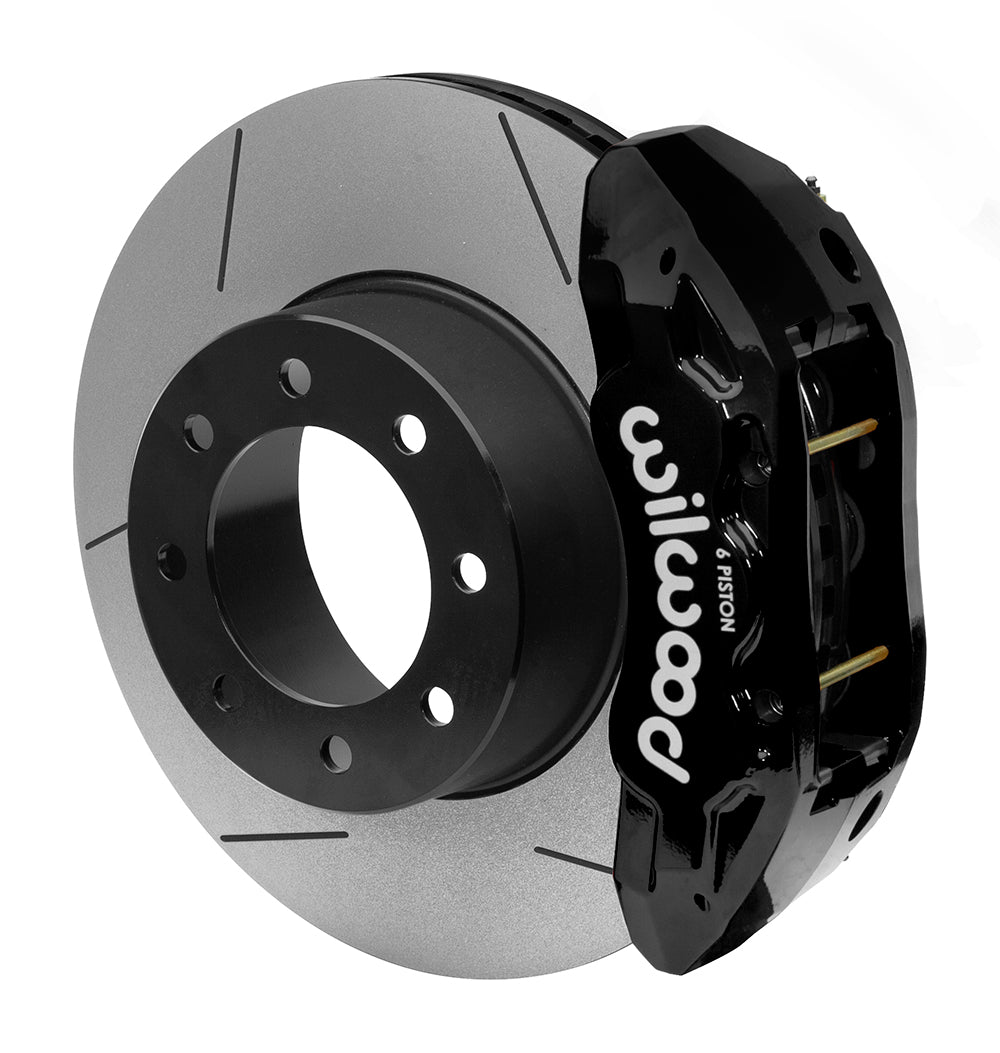

Wilwood 16-Inch Rear Brake Kit with Black TX6R Calipers for 2014–2018 Ram 2500/3500 SRW

Black TX6R calipers and integral-hat 16-inch rotors retain factory parking brakes on listed Ram HD rear axles. Rear 3500 coverage is SRW only. Founded by Bill Wood in 1977, Wilwood Engineering designs and manufactures disc brake systems from Camarillo, California. Its calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized applications. Individual components must be selected for the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15382
• Kit classification: Rear Brake Kits - Street Performance
• Axle position: Rear Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Rotor Outside Diameter: 16.00 in; 406.4 mm
• Rotor Thickness: 1.38 in; 35.05 mm
• Rotor Material: Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 8 x 6.5 in; 8 x 165.1 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.65 in; 16.51 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 48 V
• Minimum wheel diameter guidance; verify clearance drawing: 20 in; 508 mm
• Required spindle / rear housing interface: OEM
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No separate wheel hubs; one-piece rotor-and-parking-hat units included
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: TX6R
• Pad compound: BP-22

Fitment & Compatibility

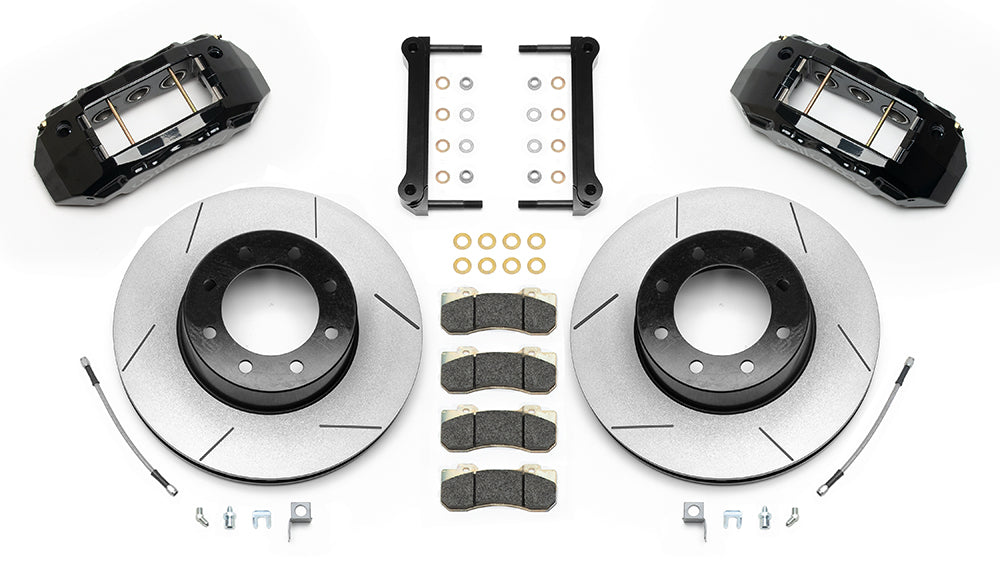

Rear coverage is limited to the listed 2014–2018 Ram 2500/3500 configurations. The 3500 entries are single-rear-wheel applications only; a front kit's dual-rear-wheel coverage does not extend to this rear package. One-piece 16.00 × 1.38-inch iron rotors incorporate the parking-brake hats and retain the original parking mechanism. The rear TX6R calipers use BP-22 pads, and rear hose kit 220-15676 is included. Modify the backing plate/dust shield for caliper clearance as DS-1292 specifies. Check the eight-on-6.50-inch interface, original parking hardware and the wheel template.

Listed models: 2500; 3500. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions
