Wilwood Black TX6R Front Brake Kit for 2014–2023 Ram 2500/3500 with 16-Inch Rotors

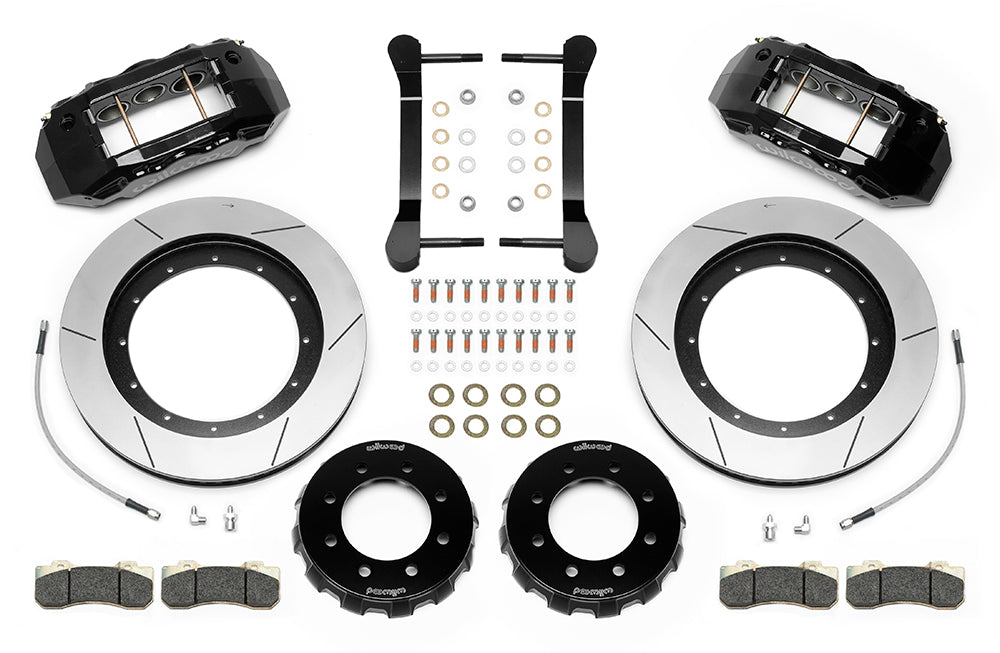

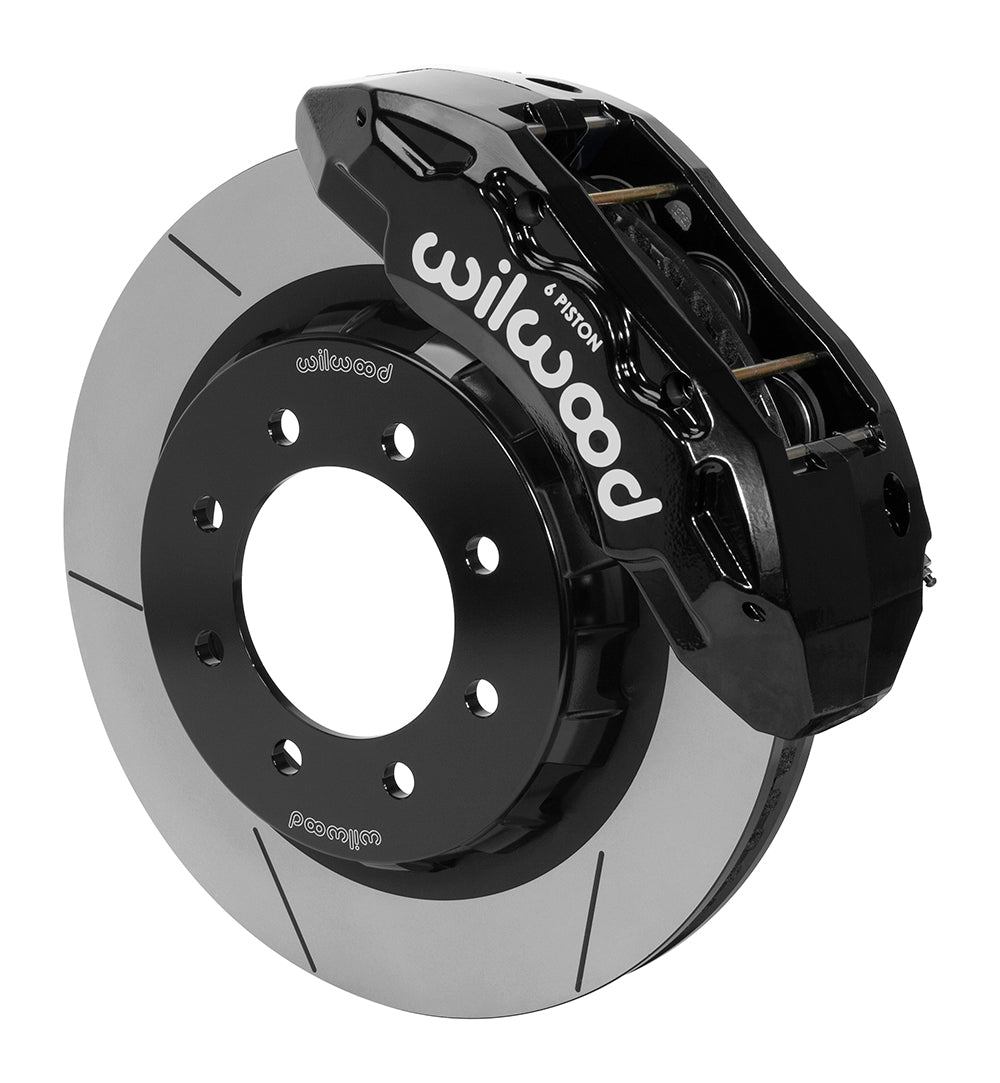

Upgrade listed Ram 2500/3500 front applications with black six-piston TX6R calipers, 16-inch GT rotors and included braided hoses. Check wheel clearance. Wilwood Engineering has designed and manufactured disc brake systems since Bill Wood founded it in 1977. Its Camarillo, California operation supplies calipers, master cylinders, brake rotors, valves, fittings and lines for specialized, street-performance and motorsport applications. Each component must be chosen to match the complete brake system.

Technical Details

• Manufacturer: Wilwood
• Manufacturer part number: 140-15381
• Kit classification: Front Brake Kits - Street Performance
• Axle position: Front Kits
• Brake Type: Disc
• Selling unit: Sold as a kit.
• Master Cylinder Included: No
• Brake Booster Included: No
• Brake Lines Included: Yes
• Minimum wheel diameter guidance; verify clearance drawing: 20 in; 508 mm
• Spindle Included: No
• Mounting Hardware Included: Yes
• Separate wheel hubs included: No
• Rotor Outside Diameter: 16.00 in; 406.4 mm
• Rotor Thickness: 1.50 in; 38.1 mm
• Rotor Material: Spec-37 Iron
• Surface Type: GT Slotted
• Rotor construction: Vented
• Bolt Circle Diameter: 8 x 6.5 in; 8 x 165.1 mm
• Rotor-hat mounting-hole clearance diameter (not stud thread): 0.640 in; 16.26 mm
• Rotor surface finish: Black Electro Coat
• Rotor vane / construction reference: 60 CV
• Hat material: Aluminum
• Hat finish: Black E-Coat
• Hat offset (not axle-flange offset): 1.134 in
• Pistons per service caliper: 6
• Service-caliper piston material: Stainless
• Service-caliper mounting: Radial
• Caliper body construction: Forged aluminum
• Caliper Color: Black
• Caliper Finish: Black Powder Coat
• Caliper Inlet Port Diameter: 1/8-27 NPT
• Caliper family: TX6R
• Pad compound: BP-22

Fitment & Compatibility

The supplied table covers listed 2014–2023 Ram 2500 and 3500 front applications, in two- and four-wheel-drive configurations. Listed 3500 front coverage includes single- and dual-rear-wheel trucks; do not transfer this to a rear-kit claim. The 16.00 × 1.50-inch Spec37 GT rotor rings use separate hats and an eight-on-6.50-inch wheel pattern. Six-piston TX6R calipers use BP-22 pads. The specified front braided hose kit, 220-15672, is included. Check the stock upright, hub interface, hose routing and wheel drawing; the 20-inch minimum wheel guidance is not a guarantee that every wheel of that diameter clears.

Listed models: 2500; 3500. See the supplied table below for each year, submodel and equipment condition.

Wilwood product specifications · Installation instructions

Ask PMB Performance for help comparing the installation requirements. We have more than 20 years of experience working with brake parts and fitment.

Manufacturer warning — brake pads only: WARNING: Cancer and Reproductive Harm. www.P65Warnings.ca.gov.
