Product details
For Detroit Speed rear suspension on selected 1963–1979 Corvettes, this 14-inch kit combines four-piston service and separate parking calipers. Wilwood Engineering, founded in 1977 by Bill Wood, is based in Camarillo, California. The company designs and manufactures disc brake systems and supplies master cylinders, calipers, brake rotors, valves, fittings and lines for motorsport, street-performance and specialized installations. Select each component around the complete system’s requirements.
Technical Details
- Manufacturer: Wilwood
- Manufacturer part number: 140-15348
- Kit classification: Rear Brake Kits - Street Performance
- Axle position: Rear Kits
- Brake Type: Disc; Parking
- Selling unit: Sold as a kit.
- Master Cylinder Included: No
- Brake Booster Included: No
- Brake Lines Included: No
- Rotor Outside Diameter: 14.00 in; 355.6 mm
- Rotor Thickness: 0.81 in; 20.57 mm
- Rotor Material: Iron
- Surface Type: GT Slotted
- Rotor construction: Vented
- Bolt Circle Diameter: 5 X 4.5 in; 5 X 114.3 mm
- Rotor-hat mounting-hole clearance diameter (not stud thread): 0.580 in; 14.73 mm
- Rotor surface finish: Black Electro Coat
- Rotor vane / construction reference: 36 V
- Hat material: Aluminum
- Hat finish: Black E-Coat
- Hat offset (not axle-flange offset): 0.470 in
- Pistons per service caliper: 4
- Service-caliper piston material: Stainless steel
- Service-caliper mounting: Radial
- Caliper body construction: Forged aluminum
- Caliper Color: Black
- Caliper Finish: Black Powder Coat
- Caliper Inlet Port Diameter: 1/8-27 NPT
- Caliper family: Superlite 4R
- Pad compound: BP-20
- Minimum wheel diameter guidance; verify clearance drawing: 18 in; 457.2 mm
- Required spindle / rear housing interface: Detroit Speed Corvette Rear
- Spindle Included: No
- Mounting Hardware Included: Yes
- Separate wheel hubs included: No
Fitment & Compatibility

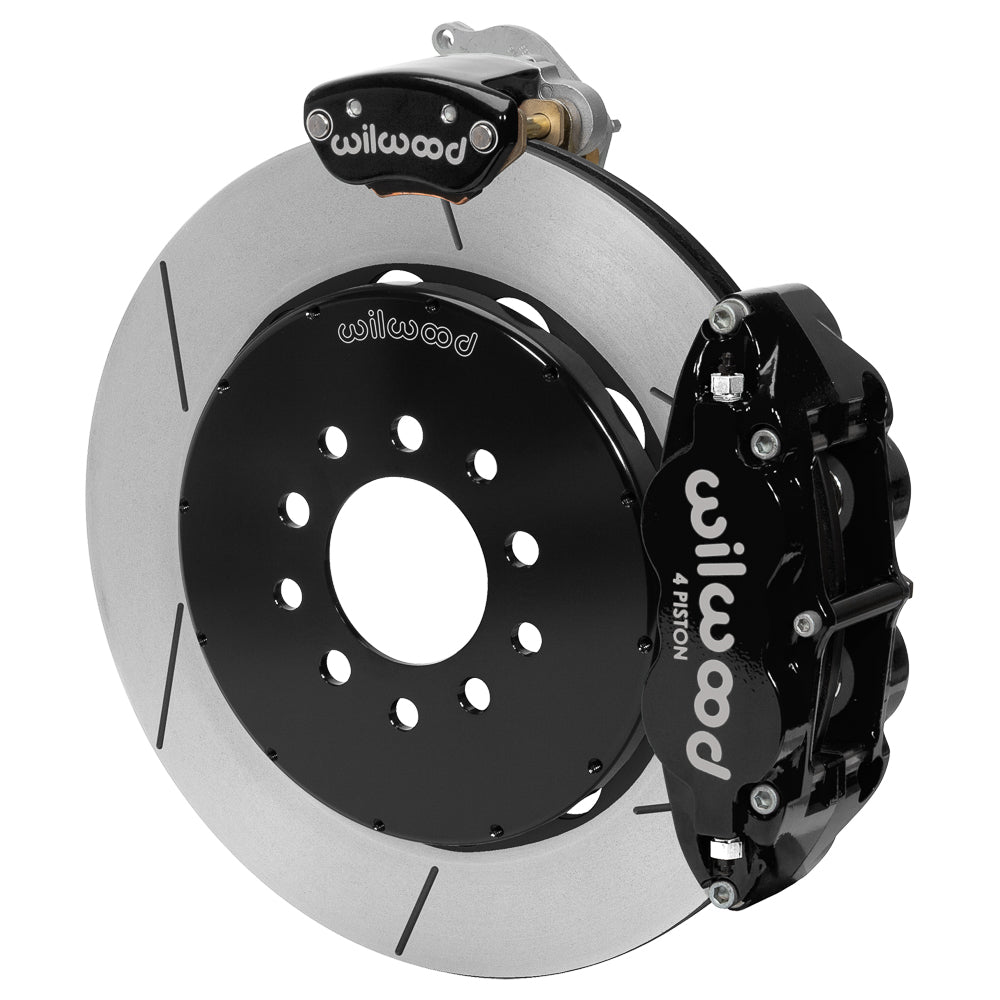

For 1963–1979 Chevrolet Corvette applications fitted with the specified Detroit Speed rear suspension; this is not an assertion of compatibility with an original Corvette rear assembly. Four-piston Superlite 4R service calipers have stainless-steel pistons, radial mounts and forged-aluminum bodies. Separate floating MC4 calipers operate the mechanical parking brake. The 14.00 × 0.81-inch rotor rings bolt to separate aluminum hats. Flexlines, parking cables, clevises and vehicle-specific cable adapters must be supplied separately; the universal parking cable is an optional starting point, not a guaranteed direct fit. Check the Detroit Speed interface and wheel drawing before ordering.
Wilwood product specifications · Installation instructions
Contact PMB Performance with the brake-kit identification and measurements for help selecting the part. Our team brings over 20 years of experience.
