Wilwood Red SX6R Front Conversion, Drilled 14 x 1.25-Inch Dynamic Rotors for Listed Corvette, XLR and Ridetech Hub-Spindle Installations

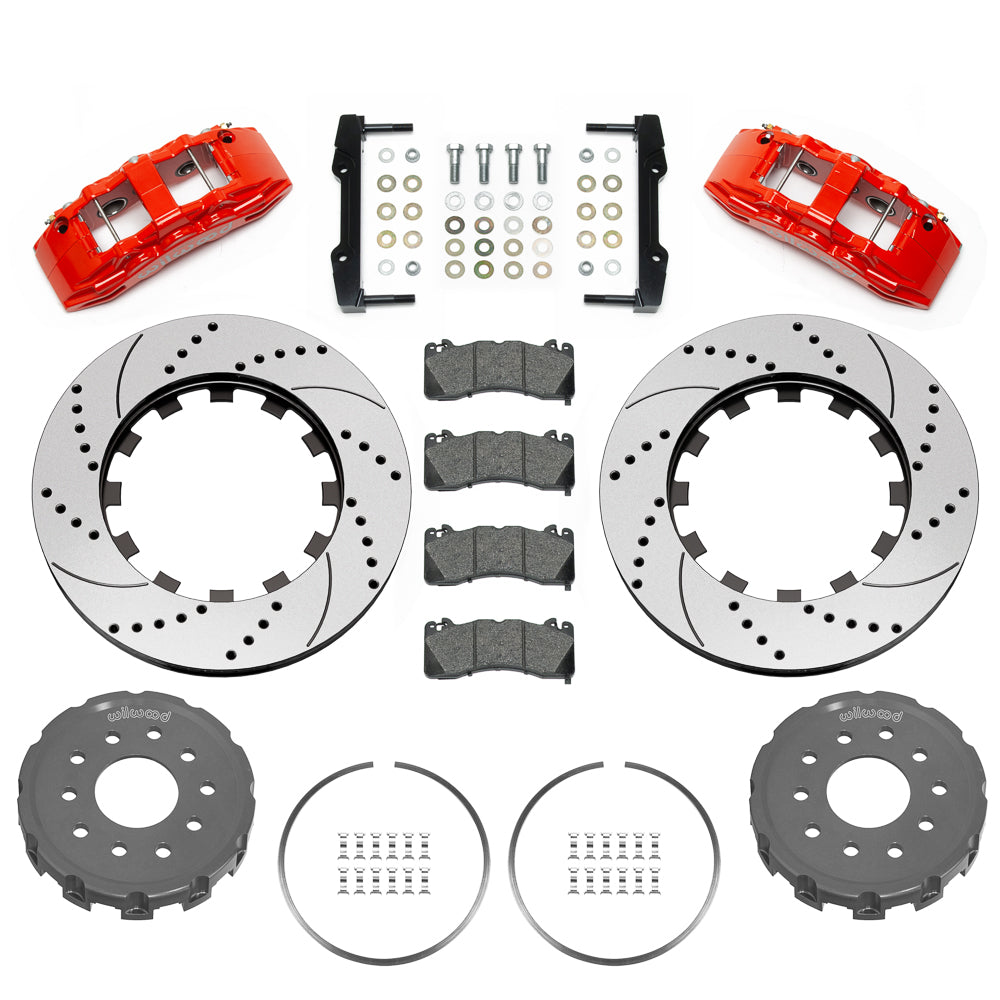

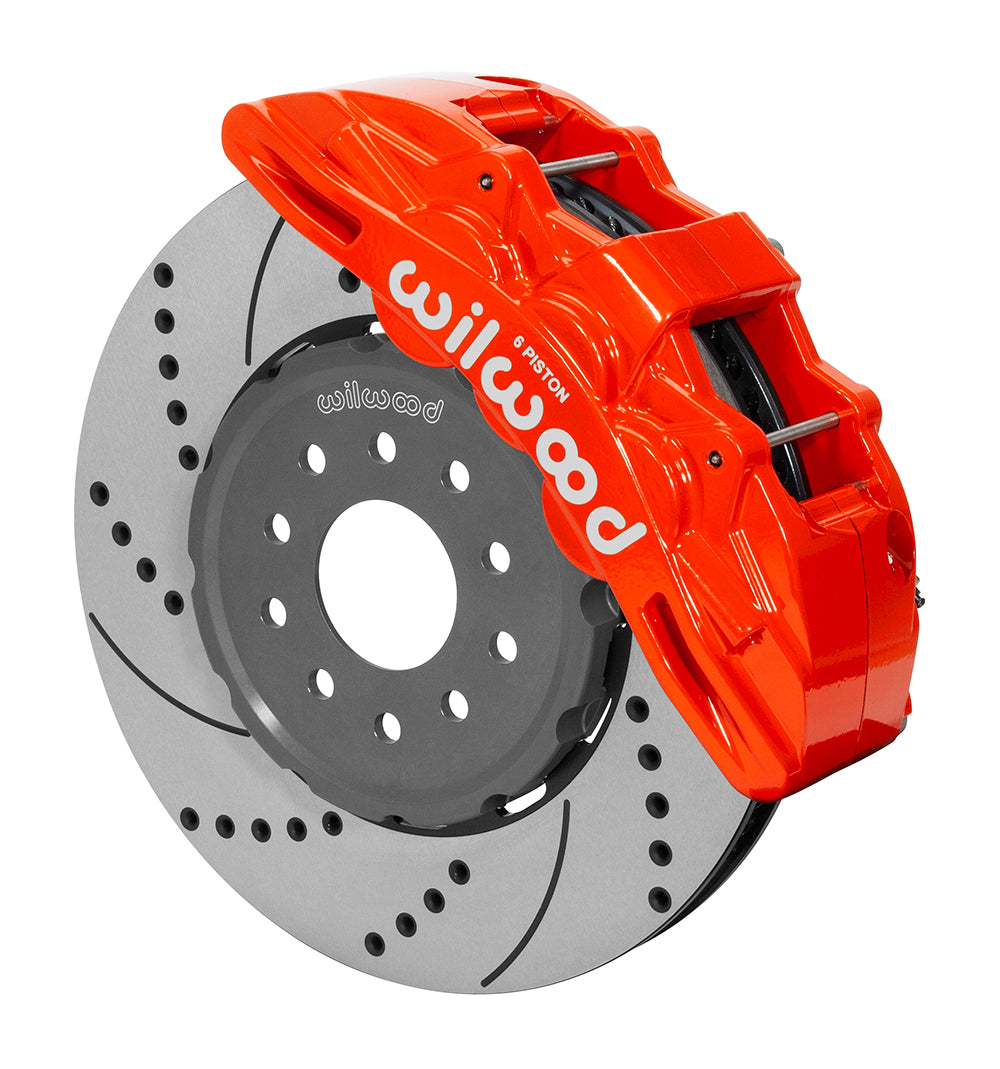

Red six-piston SX6R calipers clamp 14-inch drilled rotor rings on lug-drive aluminum hats in this front assembly. BP-10 pads and mounting components are supplied for the individually listed hub configurations, without replacement hubs or hoses. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number — 140-15309-DR.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8176, 220-9100.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rotor mounting hat — aluminum; Type III Anodize; hat offset 0.290 in; dynamic lug drive.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.
• Wheel bolt circle — 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — SX6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.

Fitment & Compatibility

Use the application rows to distinguish factory C5/C6 Corvette and XLR hubs from earlier GM/Ridetech HUB-spindle conversions. A chassis name alone does not permit factory early-GM or pin-spindle installation. DS1283, full nominal 18-inch wheel clearance and actual chassis-end hose compatibility must all be checked.

The application list names Chevy II, Corvette, Skylark, Special, Sportwagon, Chevelle, El Camino, 442, Cutlass, F85, Vista Cruiser, Beaumont, GTO, LeMans, Tempest, Gran Sport, Camaro, Cutlass Supreme, Firebird, GS 350, GS 400, Nova, GS, GS 455, Sprint, Ventura, Apollo, Omega, XLR. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Choose any alternative flexline for the actual route and chassis fittings, with enough travel and the correct flare connections.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
