Wilwood SX6R Front Brake Kit for Listed C5/C6 Corvette, Cadillac XLR and Ridetech Hub-Spindle Applications, Black Calipers, GT 14-Inch Rotors

Black SX6R six-piston calipers operate 14-inch GT rings through dynamic lug-drive aluminum hats. The package uses ProMatrix pads and retains the matched existing hubs, covering specific later Corvette/XLR configurations and separately identified Ridetech hub-spindle conversions. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number: 140-15309.

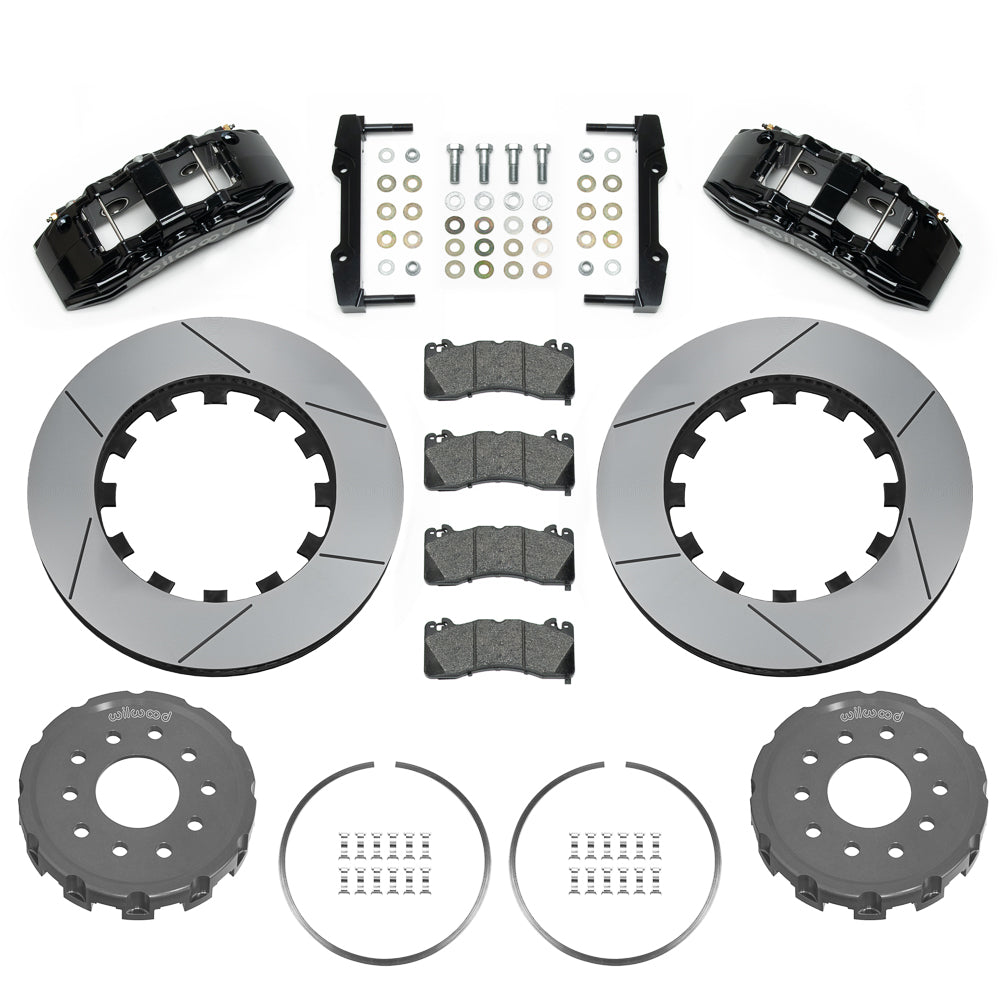

• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8176, 220-9100.
• Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.

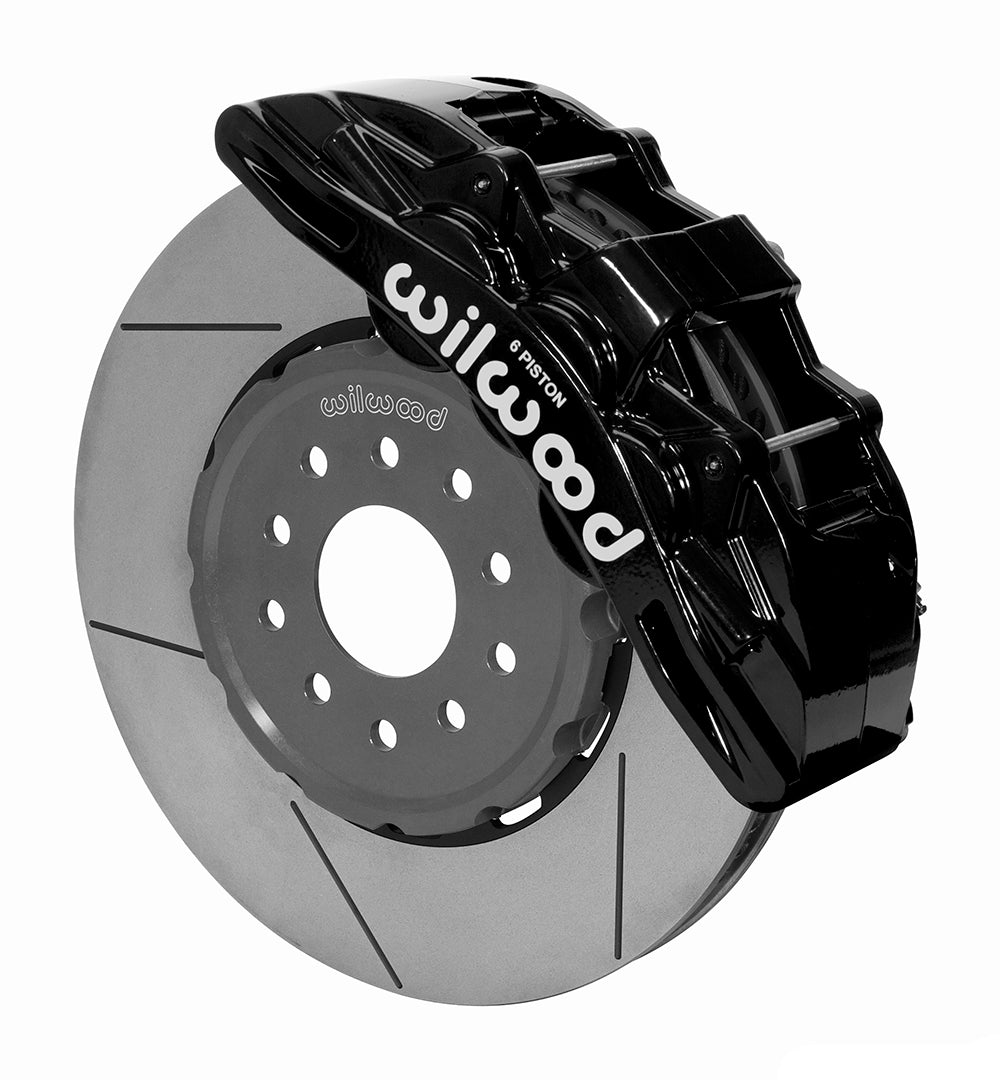

• Service caliper assembly: SX6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: PM - ProMatrix.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
• Rotor mounting hat: aluminum; Type III Anodize; hat offset 0.290 in; dynamic lug drive.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 X 4.5 in; 5 X 114.3 mm; 5 X 4.75 in; 5 X 120.65 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.

Fitment & Compatibility

Match each model/year and suspension entry below. Earlier GM and 1963–1982 Corvette entries require Ridetech HUB spindles, not stock or Ridetech pin spindles. DS1283 governs rotor installation. Check the nominal 18-inch wheel envelope and select separate chassis-appropriate hoses; stock C5/C6 hose references do not establish custom-chassis routing.

Check the application-specific restrictions for Chevy II, Corvette, Skylark, Special, Sportwagon, Chevelle, El Camino, 442, Cutlass, F85, Vista Cruiser, Beaumont, GTO, LeMans, Tempest, Gran Sport, Camaro, Cutlass Supreme, Firebird, GS 350, GS 400, Nova, GS, GS 455, Sprint, Ventura, Apollo, Omega, XLR. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Choose any alternative flexline for the actual route and chassis fittings, with enough travel and the correct flare connections.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
