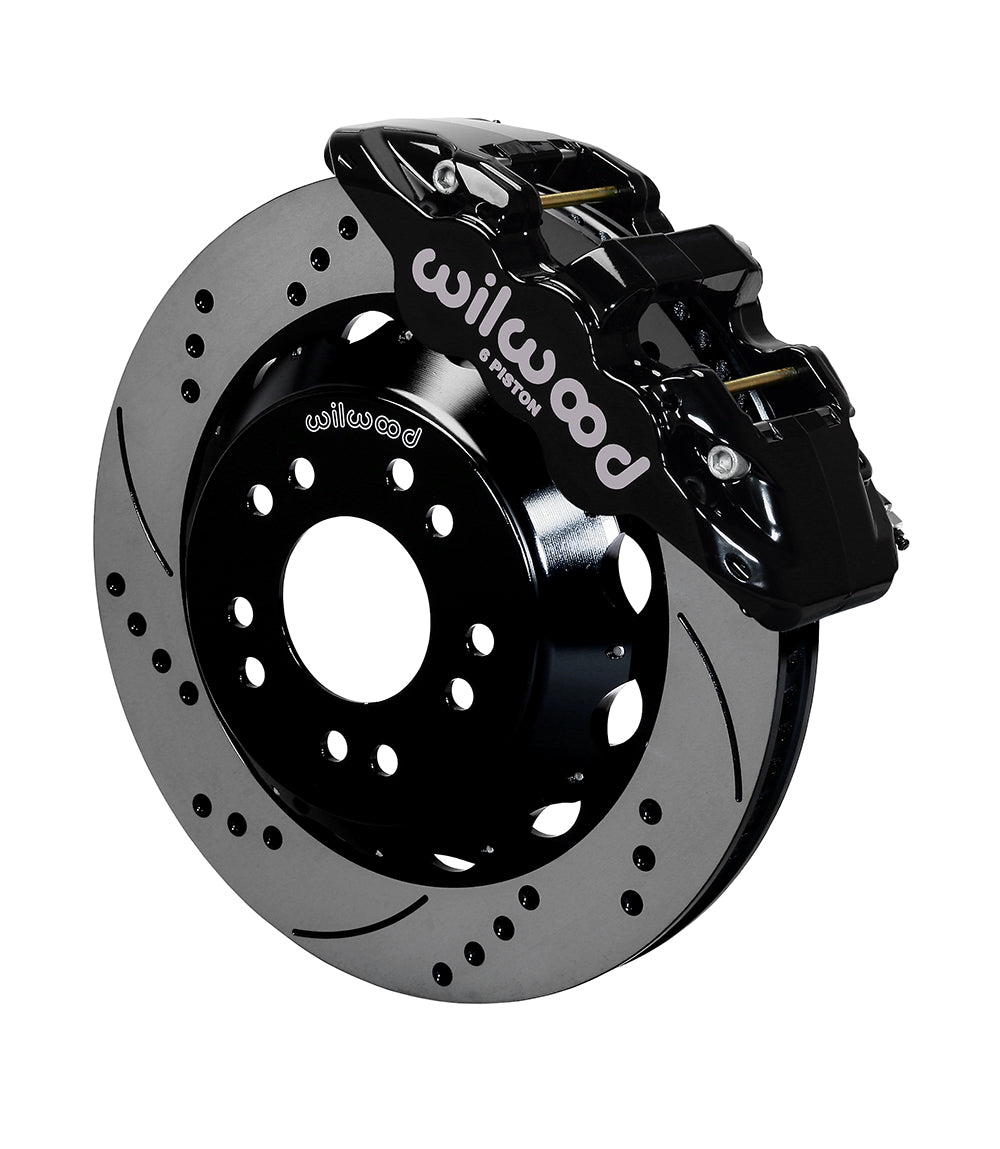

Wilwood Black AERO6 Front Disc Conversion with Drilled 14-Inch Rotors and Hats, Listed C10 Wilwood Modular Drop Spindle System

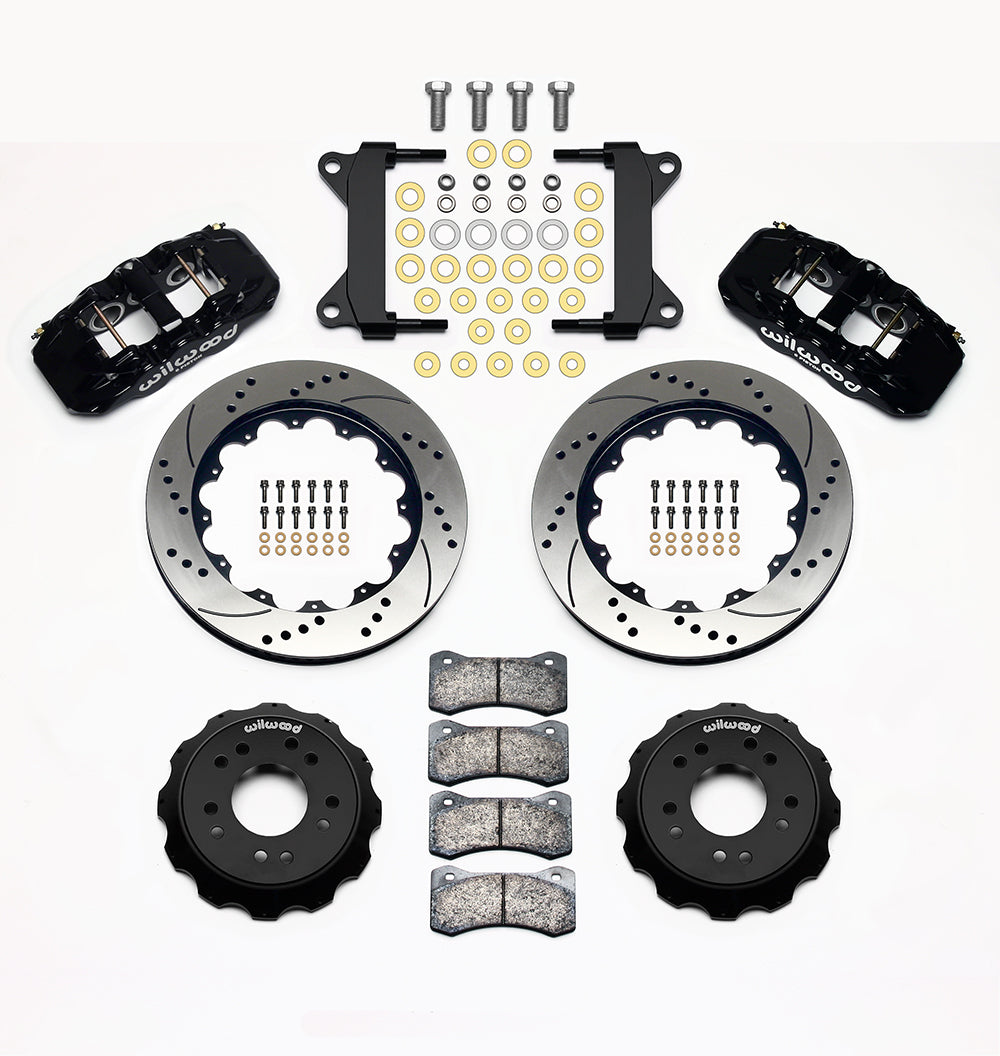

The black SRP assembly equips the specified C10 modular spindle with drilled-and-slotted Spec-37 rings and AERO6 calipers. BP-10 pads accompany this drilled version, differing from the GT kit's BP-20 specification. Hats and brake hardware are included. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number: 140-15305-D.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-7056, 220-11237, 220-12168.
• Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Service caliper assembly: AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-10.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.380 in.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.

Fitment & Compatibility

Match the five-lug Chevy/GMC application and Wilwood Aluminum Modular Pro Drop Spindles required by DS1161; stock OE spindles are excluded. Hubs belong to the separate spindle kit and hydraulic lines are separate. Confirm the year-dependent wheel position and complete nominal 18-inch clearance.

Check the application-specific restrictions for C10 Panel, C10 Pickup, Suburban, 1000 Series, 1000, C10 Suburban, C15/C1500 Suburban, C1500 Pickup, Blazer, Jimmy, C10, K5 Blazer, C15 Suburban, C1500 Suburban, R10 Pickup, R10 Suburban, R1500 Pickup, R1500 Suburban. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Select a suitable front hose kit from the listed alternatives after checking the actual chassis fittings, route and full suspension/steering travel.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
