Wilwood AERO6 Front Brake Kit for C10 Aluminum Modular Pro Drop Spindles, Black Calipers, 14-Inch GT Rotors, Hubs and Hoses Separate

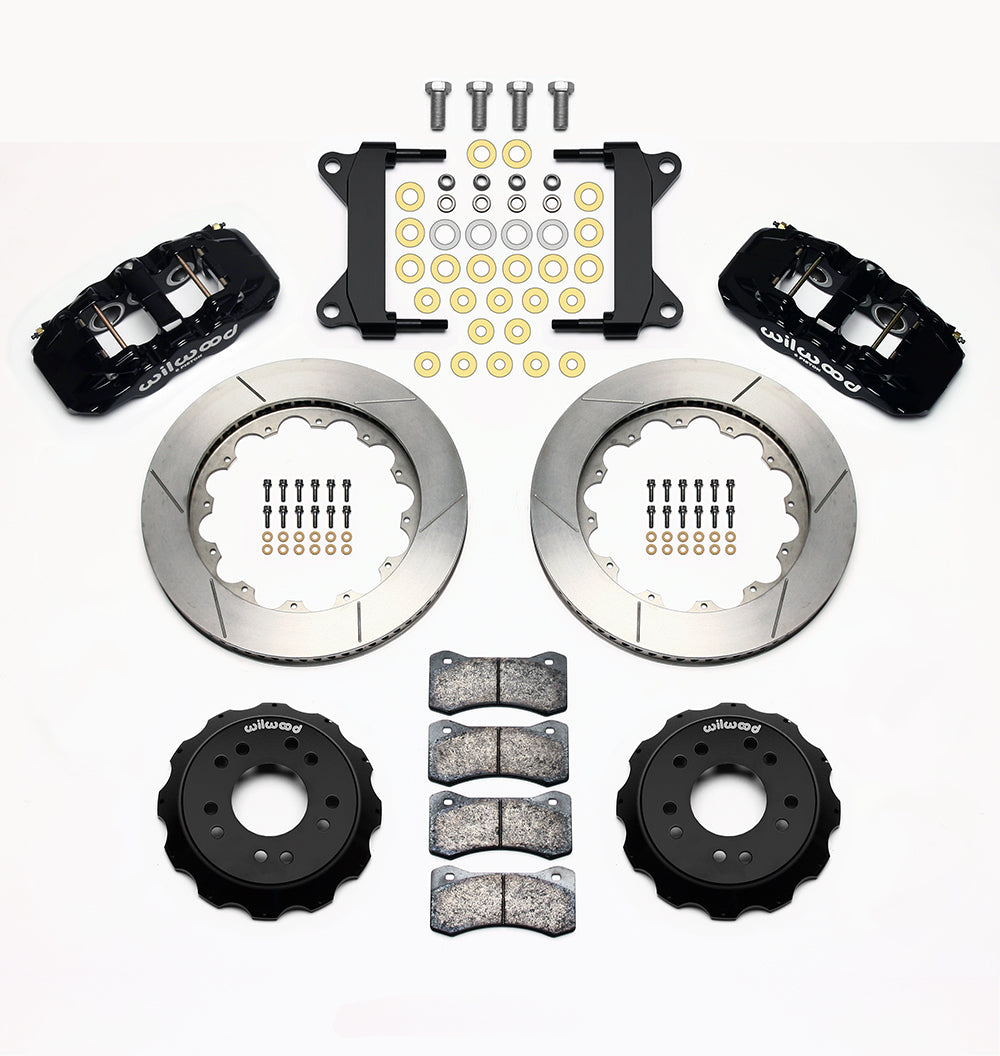

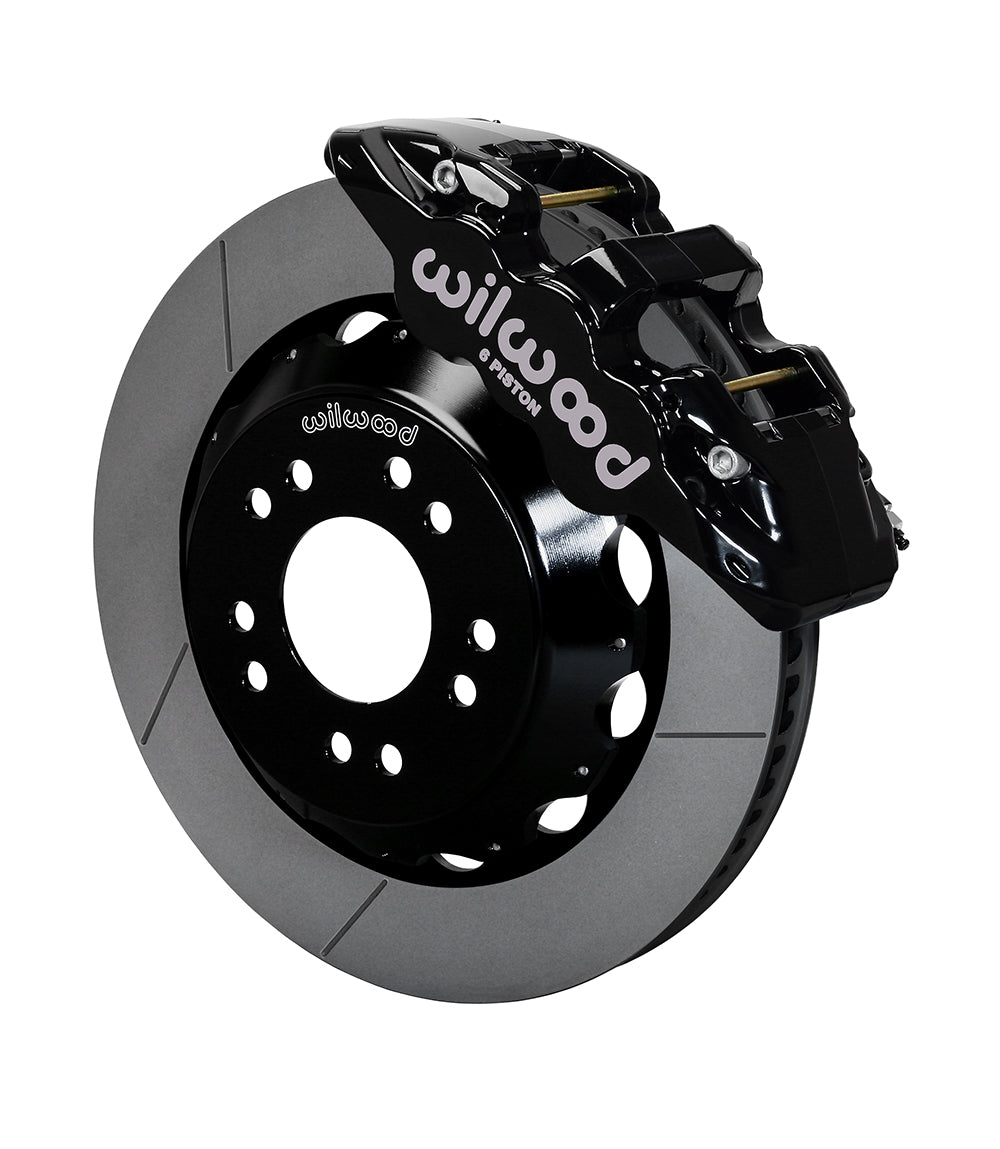

AERO6 six-piston calipers distinguish this black 14-inch C10 brake package. GT Spec-37 rotor rings mount to aluminum hats, and BP-20 pads are supplied for the documented Wilwood modular Pro Drop spindle installation. Bill Wood founded Wilwood Engineering in 1977. Based in Camarillo, California, the company designs and manufactures disc braking systems and components for street-performance, motorsport and specialized use. Its calipers, rotors, master cylinders, valves, fittings and brake lines are chosen around the hydraulic, mounting and balance needs of a complete system.

Technical Details

• Manufacturer part number — 140-15305.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.380 in.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle — 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-7056, 220-11237, 220-12168.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Service caliper assembly — AERO6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound — BP-20.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.

Fitment & Compatibility

Verify the exact five-lug Chevy/GMC model/year and required Wilwood Aluminum Modular Pro Drop Spindles. DS1161 excludes the hub/spindle assembly and flexlines from the brake package. Check +0.41-inch outward wheel position on 1963–1970 applications or -0.06 inch inward on 1971–1987, plus the full 18-inch wheel envelope.

Listed model families are C10 Panel, C10 Pickup, Suburban, 1000 Series, 1000, C10 Suburban, C15/C1500 Suburban, C1500 Pickup, Blazer, Jimmy, C10, K5 Blazer, C15 Suburban, C1500 Suburban, R10 Pickup, R10 Suburban, R1500 Pickup, R1500 Suburban; the individual year and brake/spindle conditions remain decisive. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Select a suitable front hose kit from the listed alternatives after checking the actual chassis fittings, route and full suspension/steering travel.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
