Wilwood Front Brake Kit with GT 13.06-Inch Rotors and Red Superlite Calipers for C10 Aluminum Modular Pro Drop Spindles, Hubs Separate

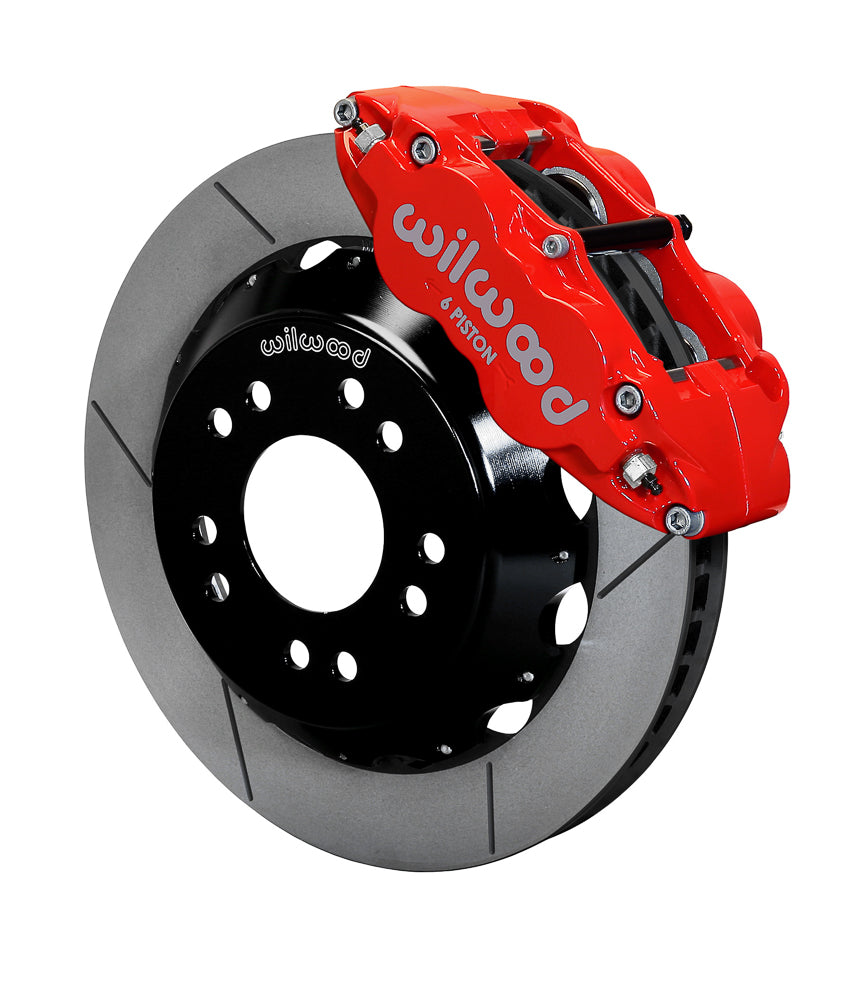

Slotted Spec-37 rings and red six-piston calipers provide the front brakes in this modular C10 configuration. Its aluminum hats and BP-10 pads are supplied with the brake hardware, while the hub/spindle unit is purchased separately as part of the correct ProSpindle system. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number: 140-15303-R.
• Service caliper assembly: Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-10.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.380 in.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Nominal minimum wheel diameter: 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-7056, 220-11237, 220-12168.
• Rotor dimensions: outside diameter 13.06 in; 331.72 mm; thickness 1.25 in; 31.75 mm.

Fitment & Compatibility

Verify the individual Chevy/GMC year and model below, with five-lug Wilwood Aluminum Modular Pro Drop Spindles only. DS1159 does not make this an OE-spindle kit. Confirm the stated year-dependent wheel offset and entire 17-inch wheel envelope, then select the appropriate separate hoses.

Check the application-specific restrictions for C10 Panel, C10 Pickup, Suburban, 1000 Series, 1000, C10 Suburban, C15/C1500 Suburban, C1500 Pickup, Blazer, Jimmy, C10, K5 Blazer, C15 Suburban, C1500 Suburban, R10 Pickup, R10 Suburban, R1500 Pickup, R1500 Suburban. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Select a suitable front hose kit from the listed alternatives after checking the actual chassis fittings, route and full suspension/steering travel.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
