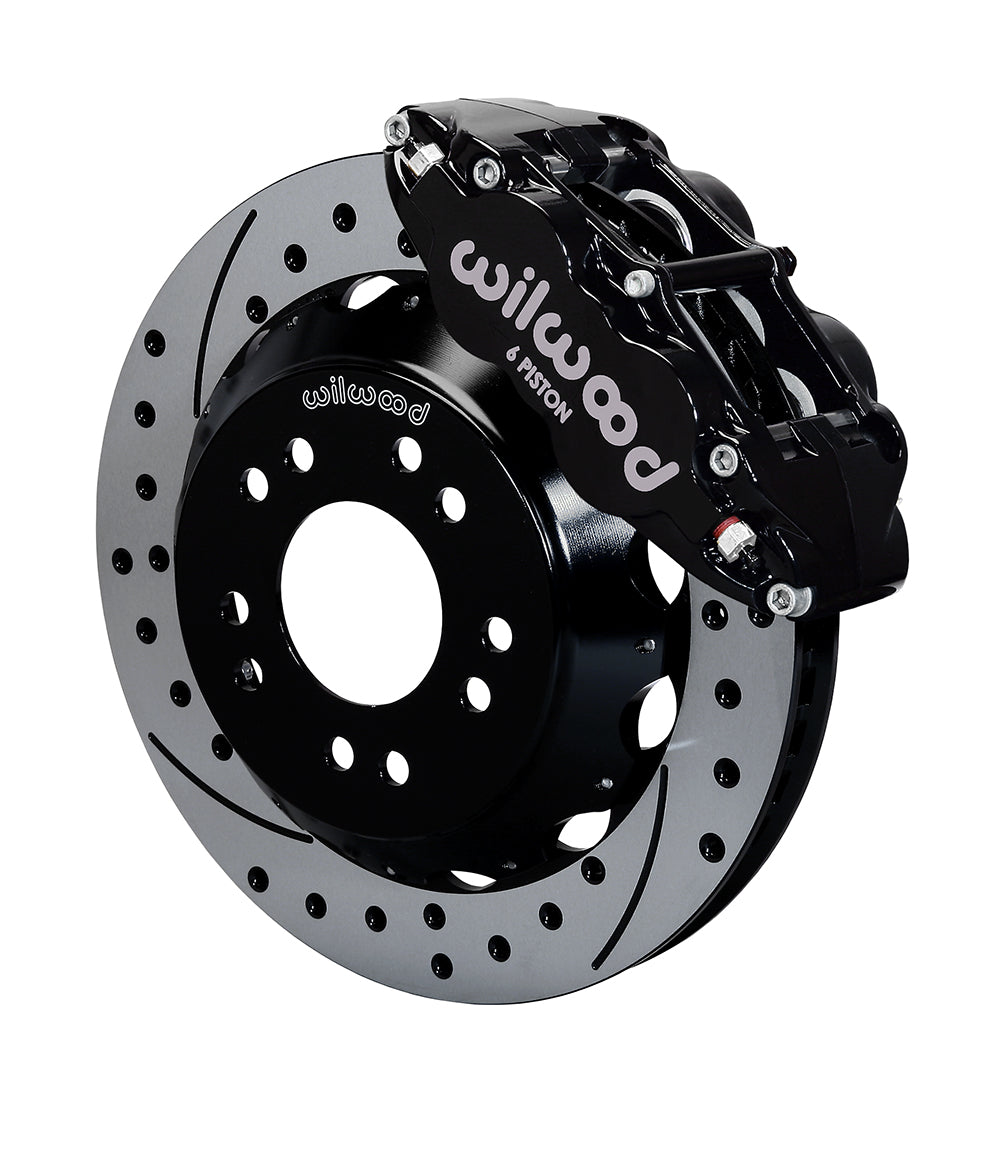

Wilwood Black Superlite Front Disc Assembly with Drilled 13.06-Inch Rotors, Listed C10 Wilwood Aluminum Pro Drop Spindles Only

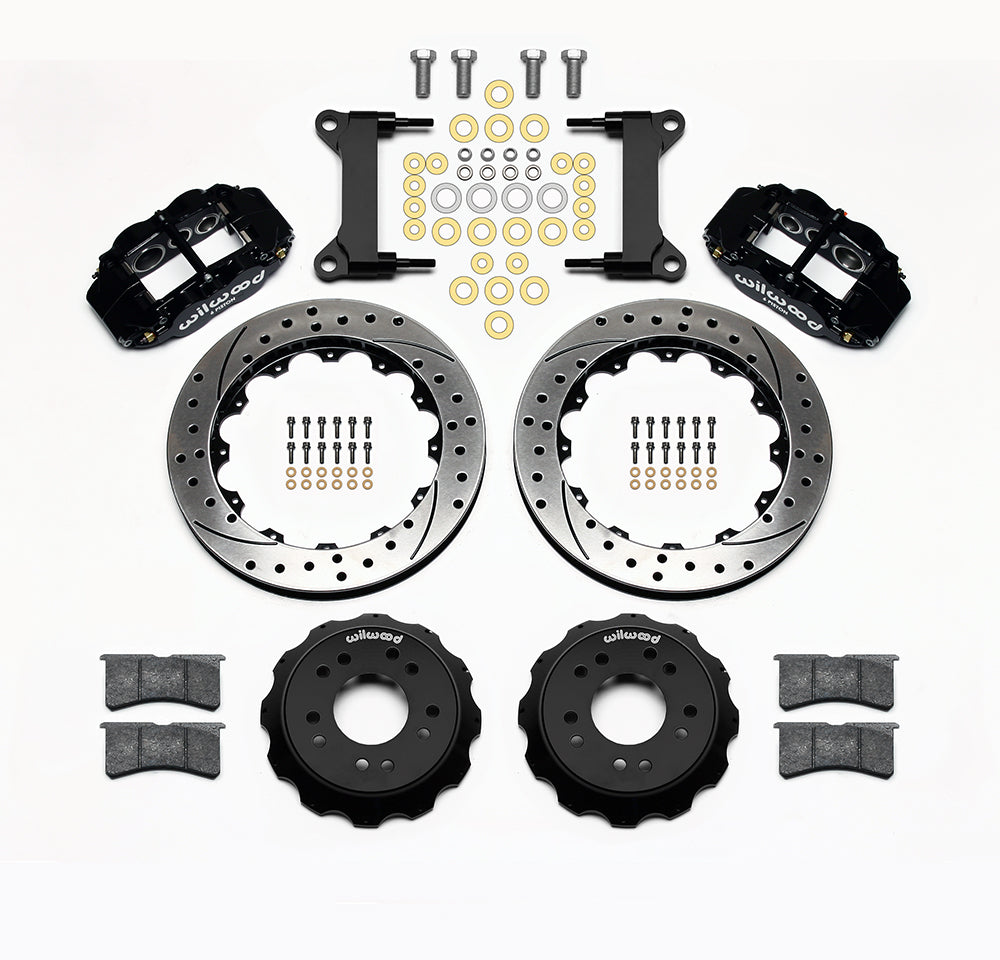

Black Superlite calipers use BP-10 pads against drilled-and-slotted Spec-37 rotor rings in this C10 front assembly. Aluminum hats and brake-side brackets are supplied for the specified Wilwood Pro Drop suspension, rather than as an OE-spindle conversion. Wilwood Engineering has designed and manufactured disc brake systems and components since its founding by Bill Wood in 1977. The company is based in Camarillo, California, and serves motorsport, street-performance and specialized applications. Its calipers, rotors, hydraulic master cylinders, valves, fittings and brake lines need to be matched to the complete system in which they operate.

Technical Details

• Manufacturer part number — 140-15303-D.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.380 in.
• Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.520 in; 13.21 mm.
• Wheel bolt circle — 5 x 4.75 in; 5 x 120.65 mm; 5 x 5 in; 5 x 127 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 13.06 in; 331.72 mm; thickness 1.25 in; 31.75 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-7056, 220-11237, 220-12168.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.

Fitment & Compatibility

Confirm the five-lug Chevy/GMC application and separately purchased modular Pro Drop spindle/hub assembly. Follow DS1159 for brake alignment. Assess the year-specific +0.41/-0.06-inch wheel-position baseline, full 17-inch wheel drawing and suitable separate front flexlines.

The application list names C10 Panel, C10 Pickup, Suburban, 1000 Series, 1000, C10 Suburban, C15/C1500 Suburban, C1500 Pickup, Blazer, Jimmy, C10, K5 Blazer, C15 Suburban, C1500 Suburban, R10 Pickup, R10 Suburban, R1500 Pickup, R1500 Suburban. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Select a suitable front hose kit from the listed alternatives after checking the actual chassis fittings, route and full suspension/steering travel.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
