Wilwood Superlite 6R Front Brake Kit for C10 Wilwood Modular Pro Drop Spindles, Black Calipers and 12.19-Inch GT Rotors, Hubs Separate

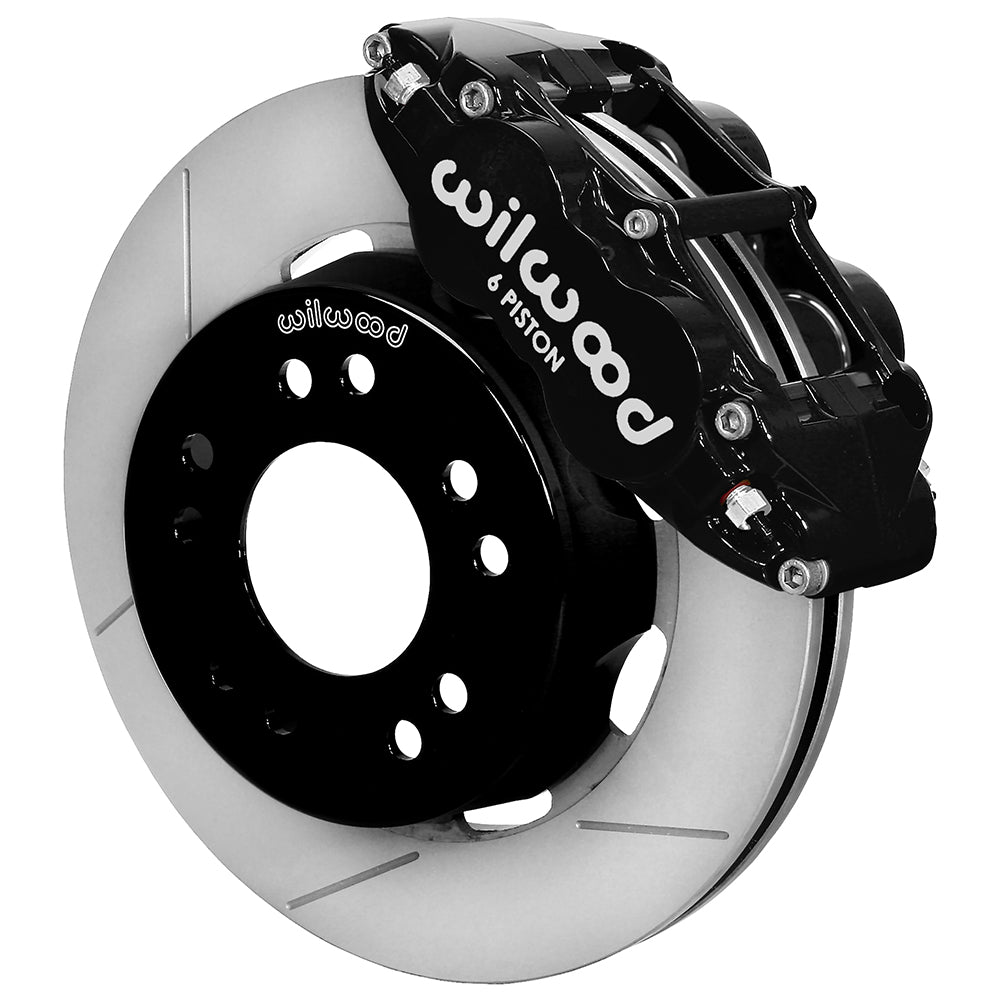

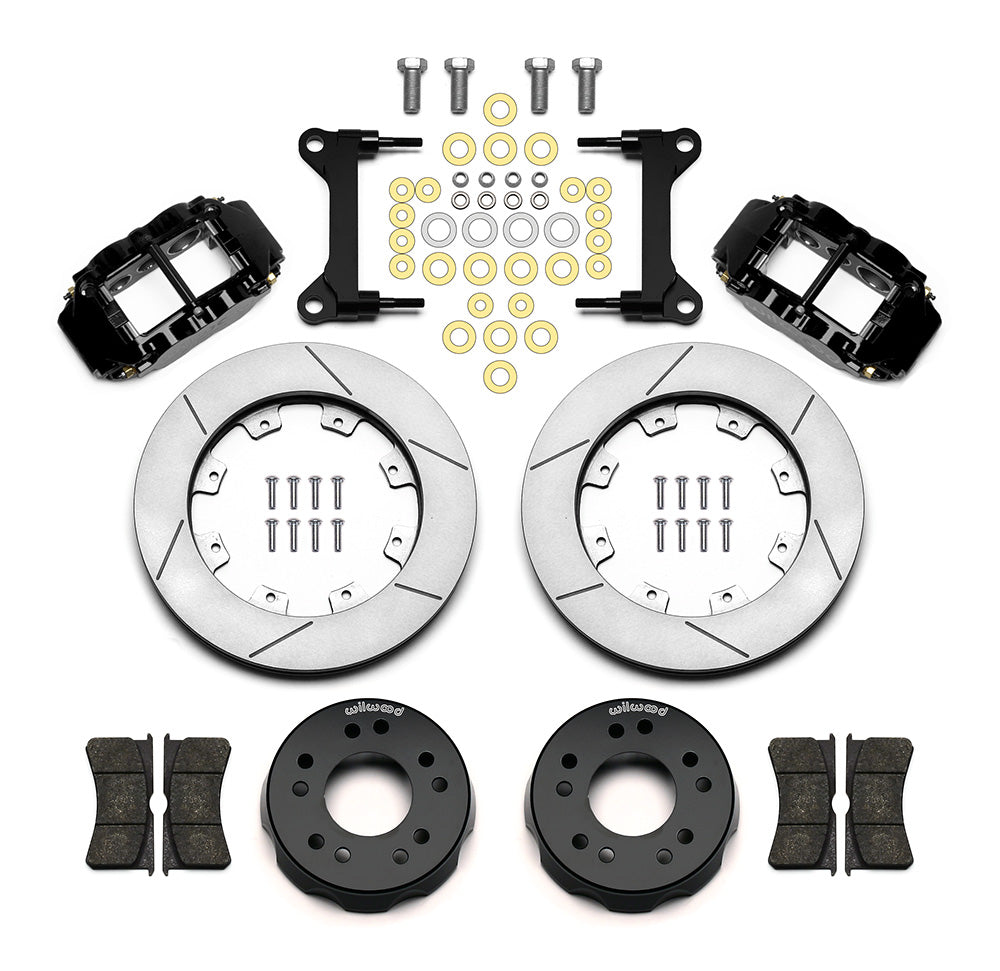

Black Superlite 6R calipers and 12.19-inch iron GT rotor assemblies form the brake portion of this C10 Pro Drop installation. Aluminum hats, BP-10 pads and caliper mounting hardware are supplied; the required hub/spindle assembly belongs to the separately purchased ProSpindle kit. Founded in 1977 by Bill Wood, Wilwood Engineering is now based in Camarillo, California, where its work centers on disc brake systems and components. Calipers, brake rotors, master cylinders, valves, fittings and brake lines serve motorsport, street-performance and specialized installations; selecting these parts requires considering the complete braking system.

Technical Details

• Manufacturer part number: 140-15302.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.530 in.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Iron; Vented; GT Slotted; surface finish: Plain.
• Caliper color, finish and hydraulic inlet: Black; Black Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 X 4.75 in; 5 X 120.65 mm; 5 X 5 in; 5 X 127 mm.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-7056, 220-11237, 220-12168.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 1.10 in; 27.94 mm.
• Service caliper assembly: Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-10.
• Hat wheel-stud clearance diameter: 0.520 in; 13.21 mm.

Fitment & Compatibility

Use only the listed 1963–1987 Chevy/GMC five-lug applications fitted with Wilwood Aluminum Modular Pro Drop Spindles, not OE spindles. DS1158 excludes hubs and flexlines from the brake package. Wheel position is +0.41 inch outward for 1963–1970 and -0.06 inch inward for 1971–1987; verify the applicable baseline and 15-inch wheel template.

Check the application-specific restrictions for C10 Panel, C10 Pickup, Suburban, 1000 Series, 1000, C10 Suburban, C15/C1500 Suburban, C1500 Pickup, Blazer, Jimmy, C10, K5 Blazer, C15 Suburban, C1500 Suburban, R10 Pickup, R10 Suburban, R1500 Pickup, R1500 Suburban. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

Select a suitable front hose kit from the listed alternatives after checking the actual chassis fittings, route and full suspension/steering travel.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
