Wilwood Red TX6R Front Conversion with 15.50-Inch GT Rotors and Braided Lines, Listed 2004–2008 F-150 Six-Lug Four-Wheel Drive

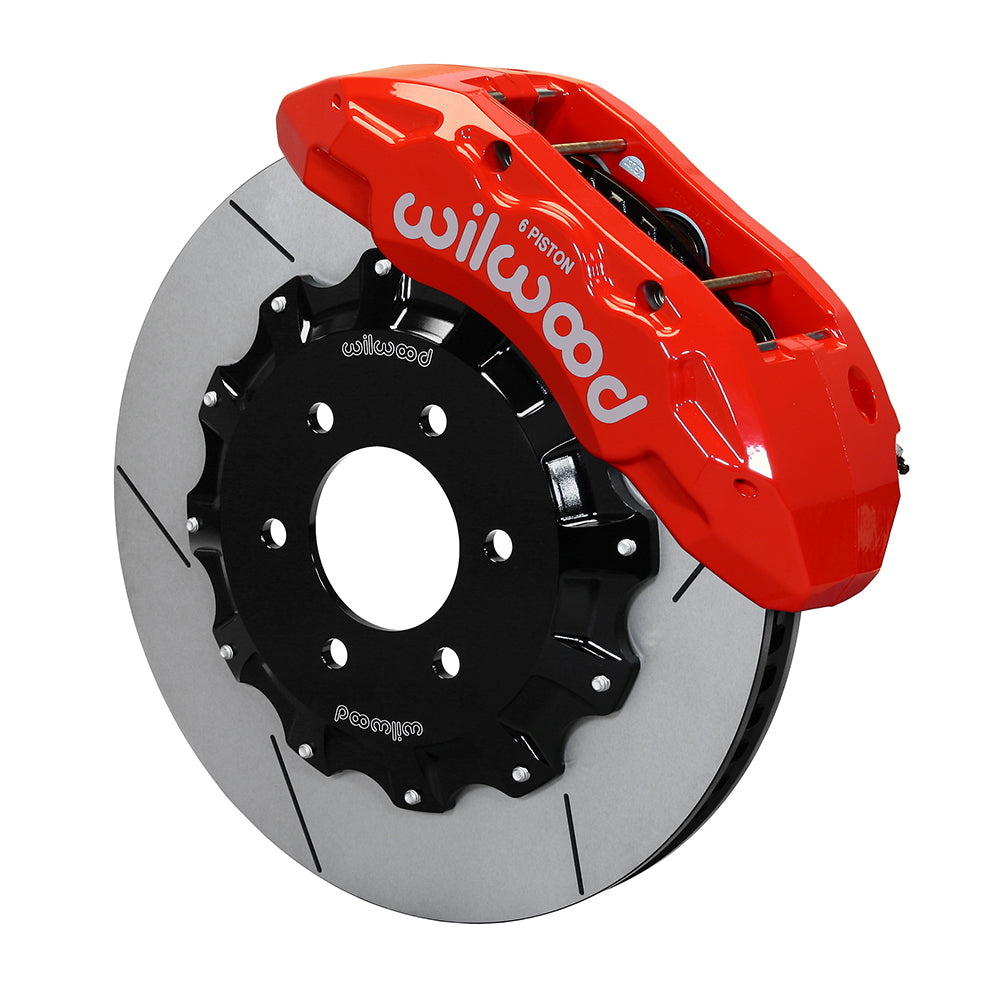

Red TX6R calipers operate large GT rotor rings mounted on aluminum hats in this six-lug F-150 front assembly. BP-22 pads and the included hose set are specified for the documented four-wheel-drive installation; no hub replacement is supplied. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

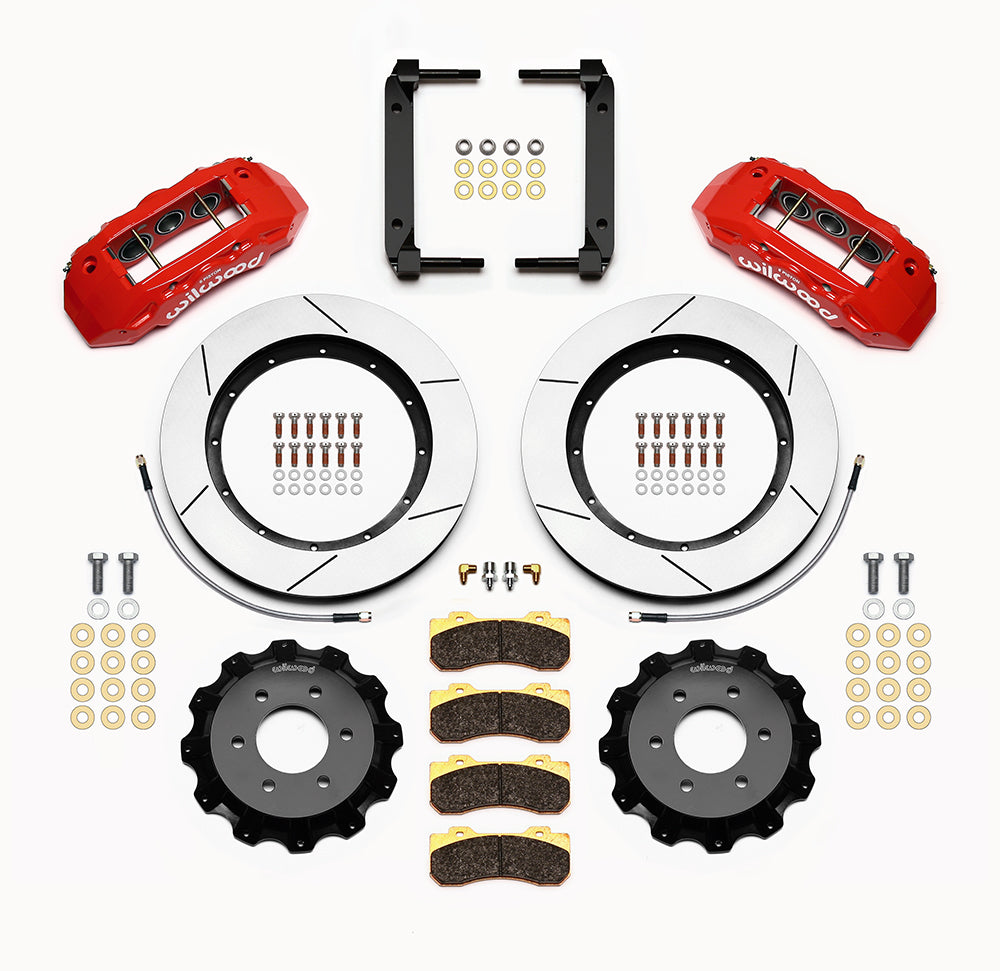

• Manufacturer part number: 140-15286-R.
• Hydraulic package contents: brake lines included: Yes; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 6 X 5.32 in; 6 X 135.13 mm.
• Nominal minimum wheel diameter: 20 in; 508 mm; verify full spoke and barrel clearance using the kit drawing.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): 220-9073 (16.00 in); Front line-kit reference: 220-9073.
• Rotor dimensions: outside diameter 15.50 in; 393.7 mm; thickness 1.38 in; 35.05 mm.
• Service caliper assembly: TX6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Supplied pad compound: BP-22.
• Hat wheel-stud clearance diameter: 0.590 in; 14.99 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 0.700 in.

Fitment & Compatibility

Match the actual 2004–2008 new-body six-lug 4WD truck against the applications below. Seven-lug versions and the 2004 Heritage do not fit. Follow DS1131 for hub and hydraulic installation, then verify the complete 20-inch wheel profile rather than relying on wheel diameter alone.

Check the application-specific restrictions for F-150. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance brings over 20 years of parts and fitment experience. Send the vehicle details and installed brake/suspension configuration if you need help checking this package.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
