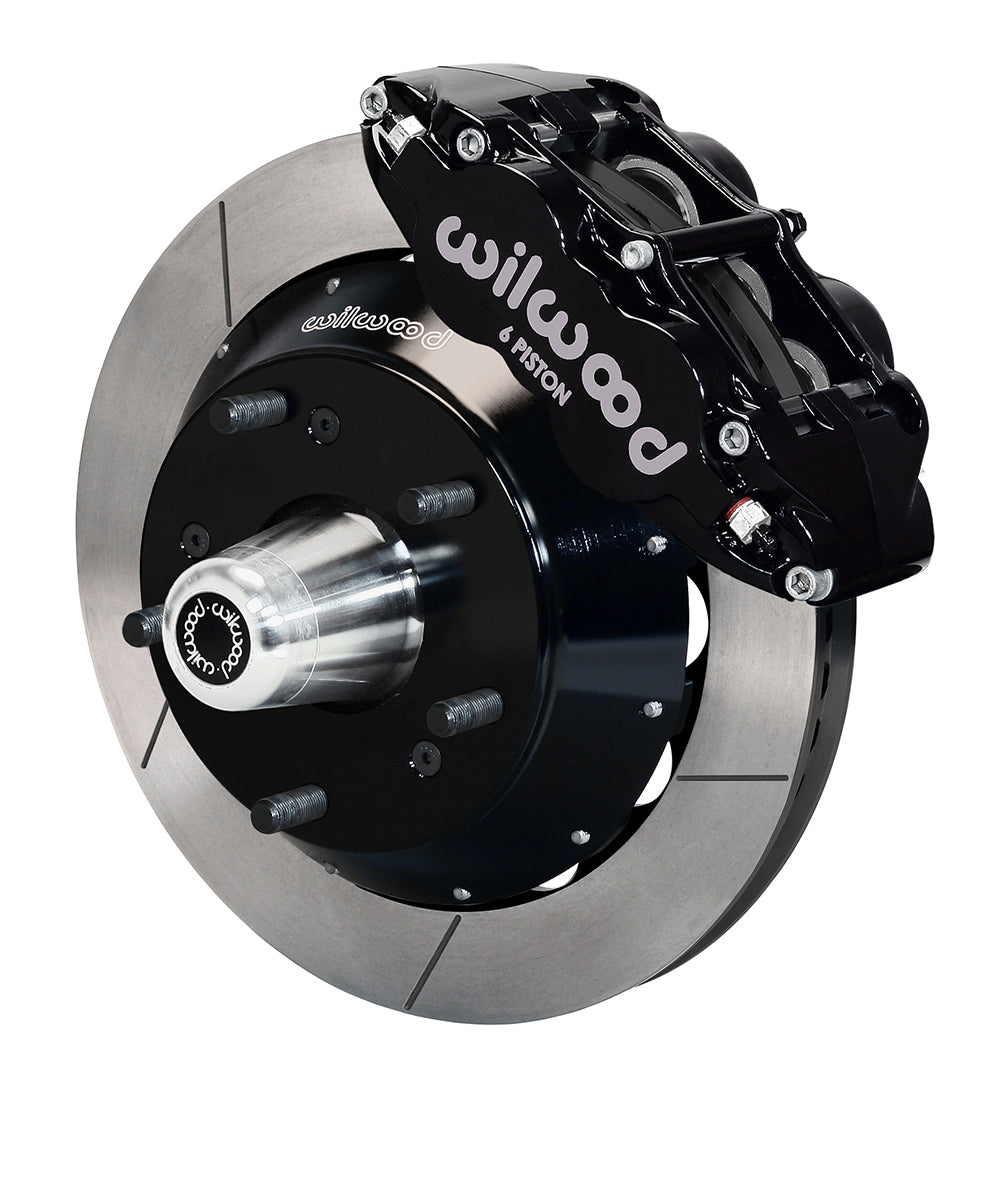

Wilwood 14-Inch GT Front Brake Conversion, Black Superlite Calipers with Hubs and Lines for Chevrolet Camaro / Pontiac Firebird 1982–1992

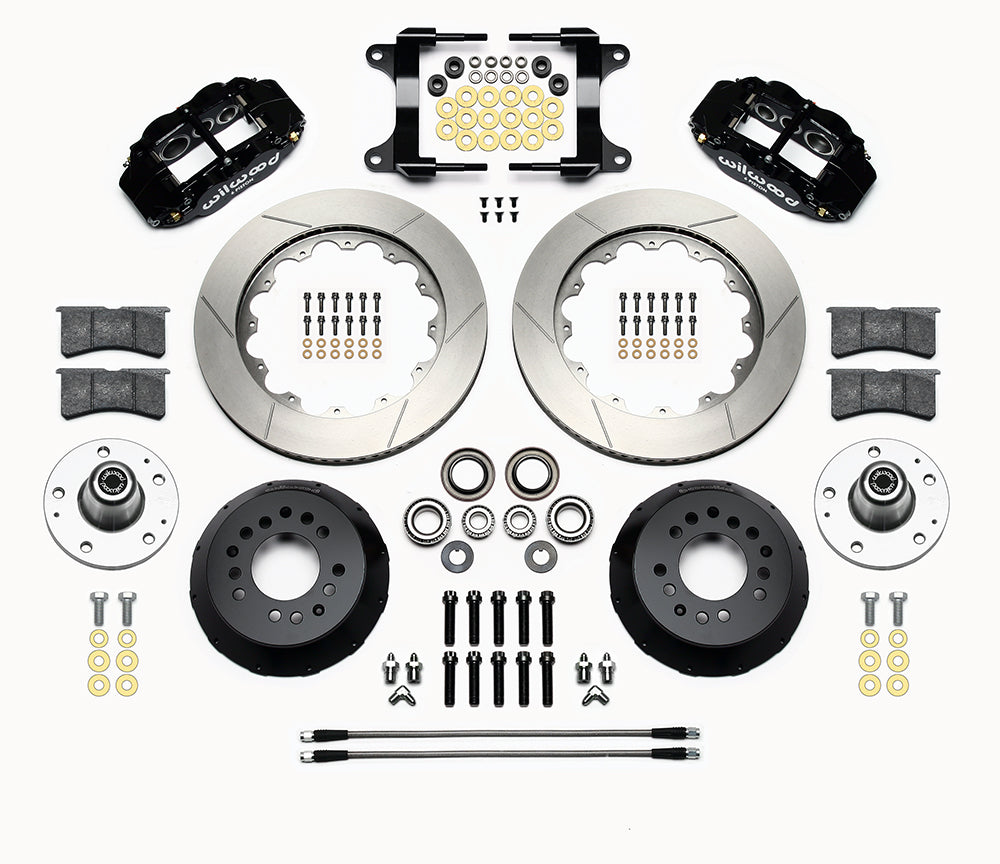

A 14-inch GT rotor diameter gives this black F-body kit its specific brake envelope. Six-piston Superlite calipers, aluminum hats/hubs and BP-10 pads are included together with 18-inch front hoses for the documented spindle installation. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number — 140-15279.
• Wheel-stud thread — 1/2-20.
• Wheel bolt circle — 5 x 4.75 in; 5 x 120.65 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): 220-6856 (18.00 in); Front line-kit reference: 220-6856.
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Stated OE wheel-hub offset — +.25 in; verify the documented spindle and reference geometry.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.750 in.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.

Fitment & Compatibility

Use the exact 1982–1992 Camaro/Firebird front-spindle application. DS1142 requires drilling/tapping and removal of interfering ears on standard spindles, with no such modification to the 1LE performance spindle. Verify +0.25-inch hub offset, 5 x 4.75 wheels and nominal 18-inch clearance.

The application list names Camaro, Firebird. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
