Wilwood AERO6R/ST Front Road-Race Brake Kit for Selected Chevrolet Camaro 2010–2015, Thermlock Pistons and GT 14-Inch Rotors

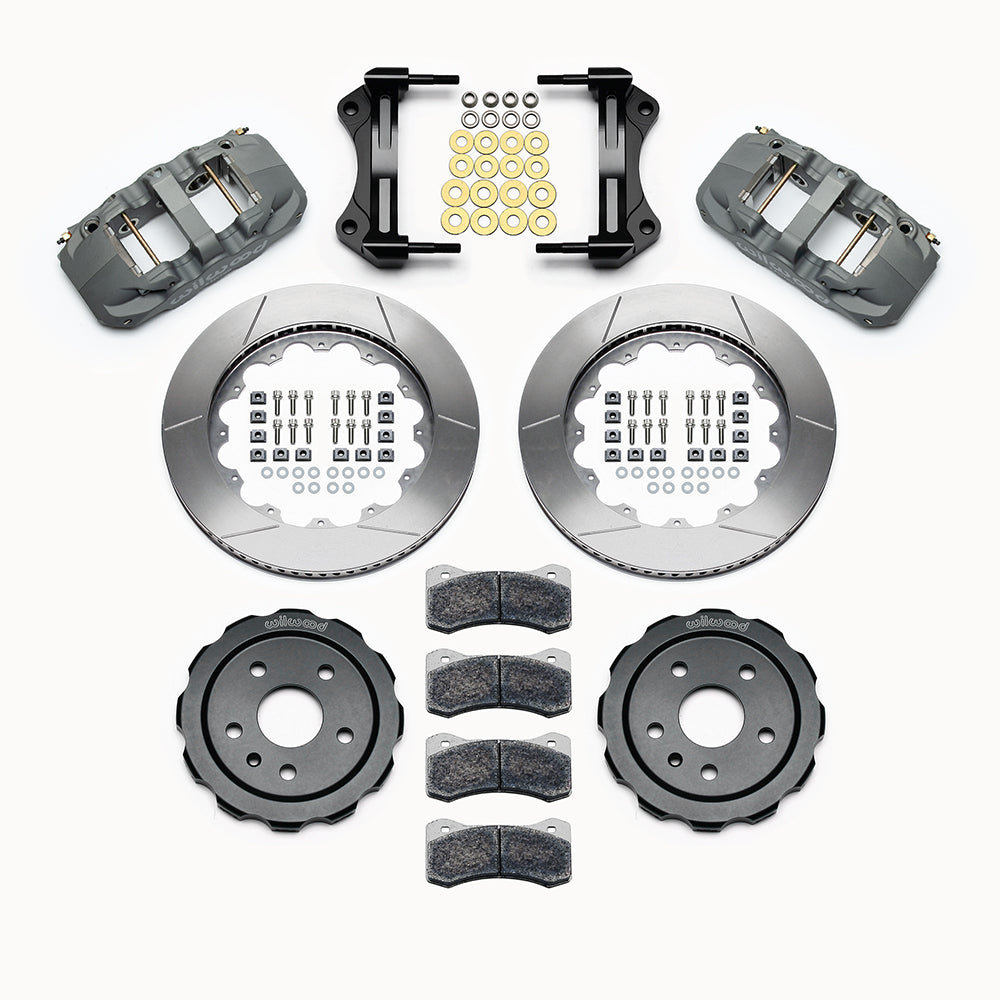

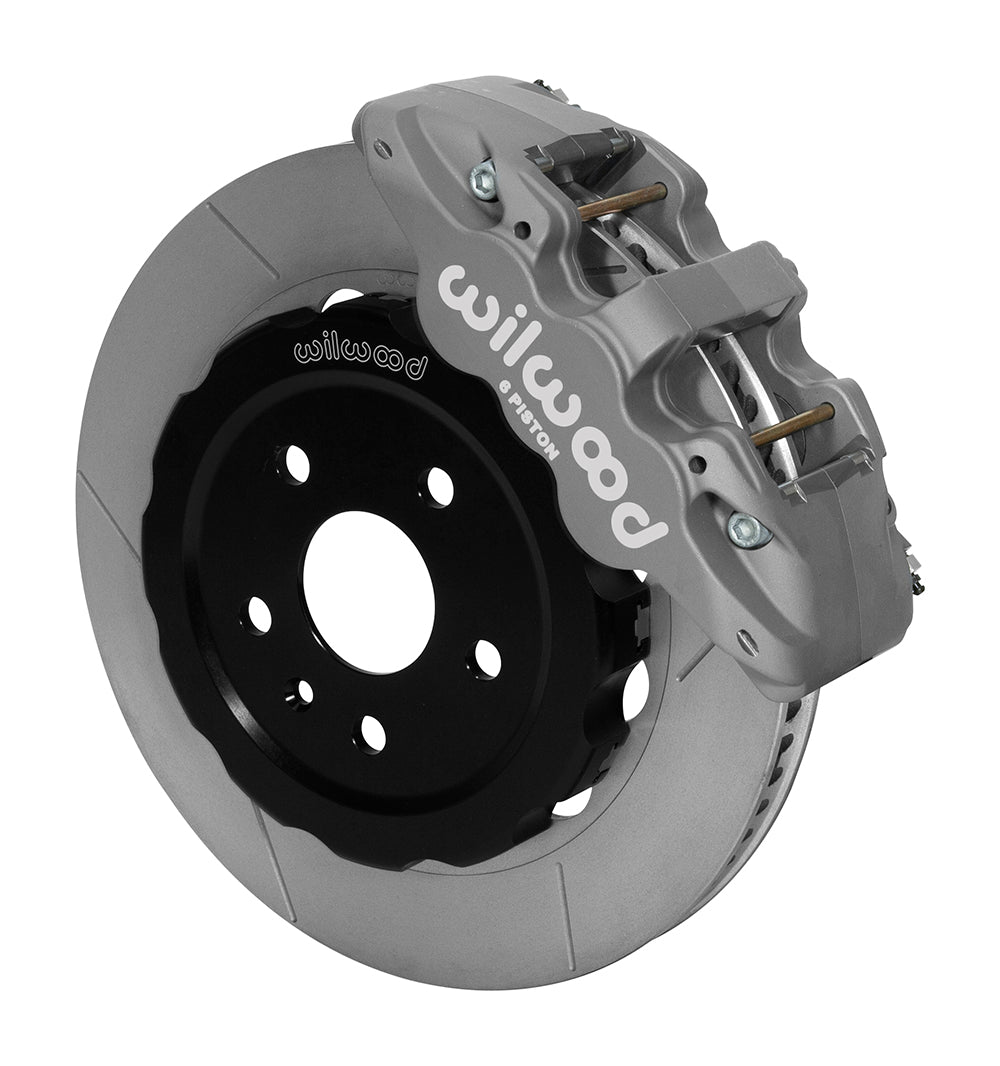

Designed around the listed Camaro front hubs, this road-race assembly combines AERO6R/ST calipers, Thermlock pistons and 14-inch dynamic-mount GT rotors. BP-35 pads are supplied for high-temperature race operation, rather than ordinary low-temperature street use. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number — 140-15231.
• Wheel bolt circle — 5 x 4.72 in; 5 x 119.89 mm.
• Supplied pad compound — BP-35.
• Caliper color, finish and hydraulic inlet — Anodize; Type III Anodize; inlet 1/8-27 NPT.
• Service caliper assembly — AERO6; 6 pistons in each caliper; Thermlock pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Plain.
• Rotor dimensions — outside diameter 14.00 in; 355.6 mm; thickness 1.25 in; 31.75 mm.
• Brake function and supply — Front road-race brake kit; Disc braking; front axle; Sold as a kit.
• Race pad operating range — BP-35 pads are intended for high-temperature racing; extended low-temperature operation causes premature pad and rotor wear.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-11382.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Rotor mounting hat — aluminum; Type III Anodize; hat offset 0.790 in.
• Nominal minimum wheel diameter — 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.640 in; 16.26 mm.

Fitment & Compatibility

Confirm the exact 2010–2015 Camaro trim/brake configuration below. DS1126 requires the hose bracket opening to be rounded for the specified bulkhead fitting; flexlines are purchased separately. Check 18-inch wheel clearance, original hub interface and complete front/rear brake balance. Extended cold use of BP-35 pads accelerates pad and rotor wear.

The application list names Camaro. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
