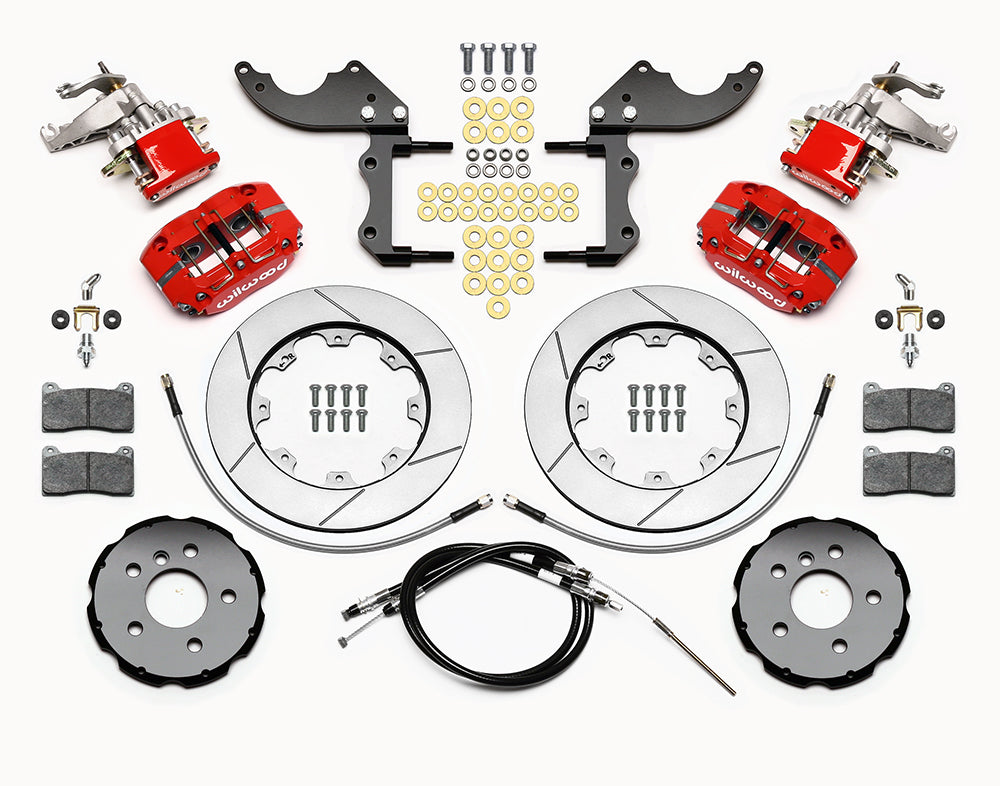

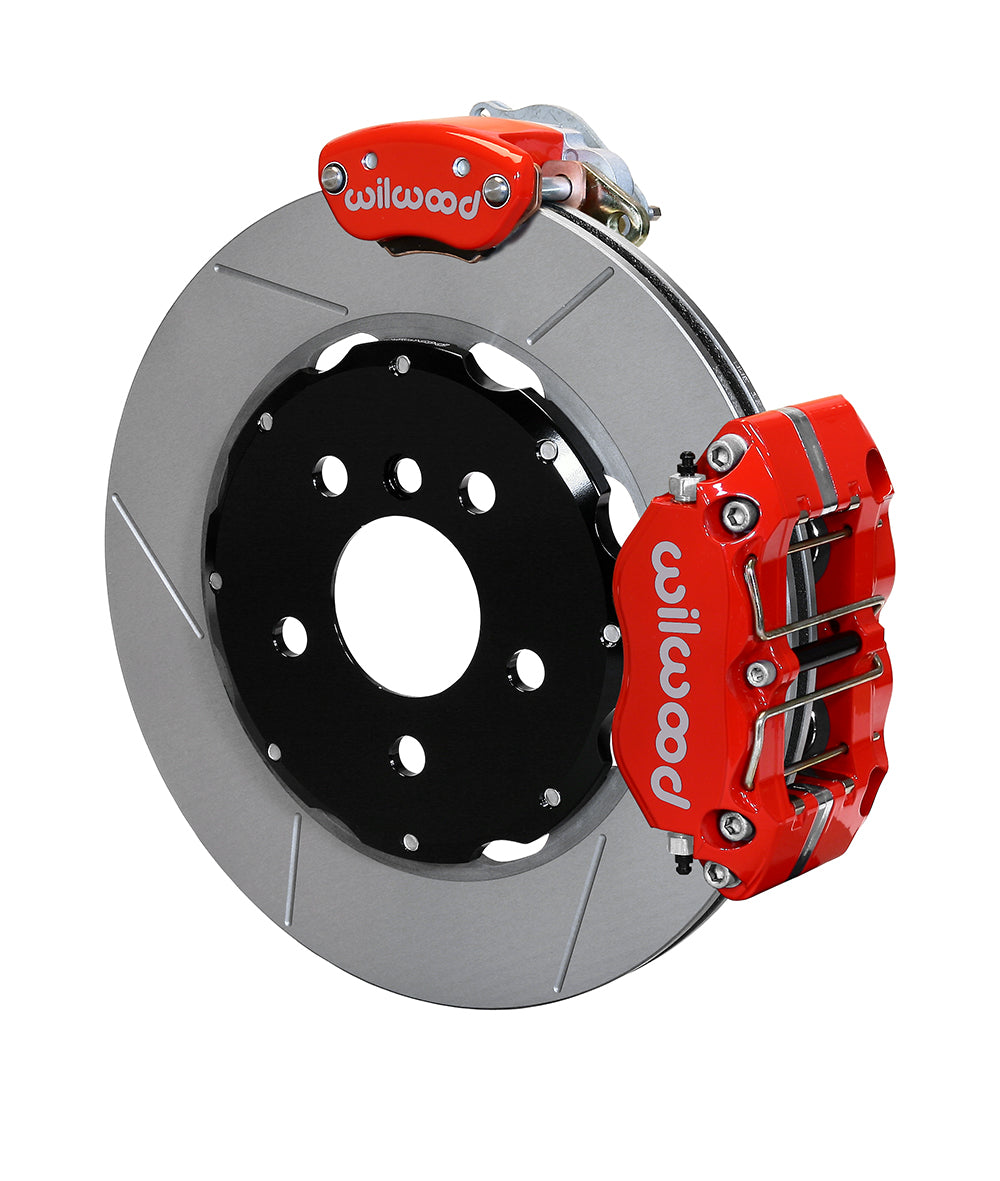

Wilwood GT Rear Disc Assembly with Red Dynapro and MC4 Calipers, Lines and Cables for Selected 2014–2017 Five-Lug Mini Coopers

The red GT variant combines Spec-37 12.19-inch rotor rings, aluminum hats and billet four-piston service calipers. Additional red MC4 parking calipers, rear hoses and the replacement cable kit provide the documented mechanical and hydraulic connections. Wilwood Engineering is based in Camarillo, California; Bill Wood founded the company in 1977. Disc brake system design and manufacturing includes calipers, rotors, master cylinders, pressure valves, fittings and brake lines for motorsport, street-performance and specialized applications. Component selection must account for how the complete brake system mounts, operates and balances.

Technical Details

• Manufacturer part number: 140-15219-R.
• Mechanical parking system: separate MC4 parking calipers; included cable kit 330-15222.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly: Narrow Dynapro Radial; 4 pistons in each caliper; Stainless pistons; Billet Aluminium body; Radial mounting.
• Supplied pad compound: BP-10.
• Hat wheel-stud clearance diameter: 0.590 in; 14.99 mm.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 0.280 in.
• Mechanical package contents: no separate hubs included; mounting hardware included: Yes; spindles included: No.
• Flexline specification: Line kit included (manufacturer): 220-15221 (20 in); Rear line-kit reference: 220-15221.
• Brake function and supply: Rear Brake Kits - Street Performance; Disc; Parking braking; rear axle; Sold as a kit.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.41 in; 5 x 112.01 mm.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Rear flange interface: OEM; axle/flange offset 0.00 in; 0 mm (distinct from rotor-hat offset).
• Hydraulic package contents: brake lines included: Yes; master cylinder included: No; booster included: No.

Fitment & Compatibility

Confirm the exact five-lug Mini configuration in the applications below. Follow DS1129 for replacing the original cables, which do not directly connect to the new calipers. Check the hub register, selected wheel clearance and unobstructed hose/cable routing before adjustment.

Check the application-specific restrictions for Cooper. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
