Wilwood Red Superlite Front Brakes with Drilled 12.88 x 1.10-Inch Rotors and Braided Lines, Specified Mini Cooper Five-Lug Models

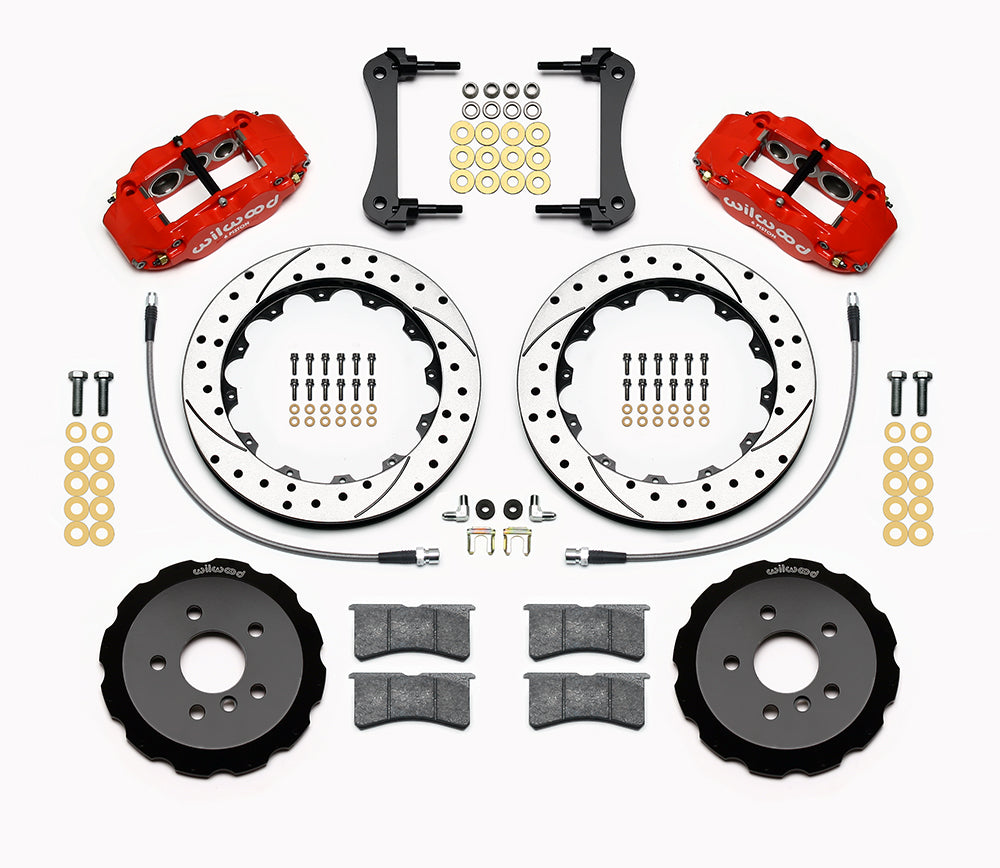

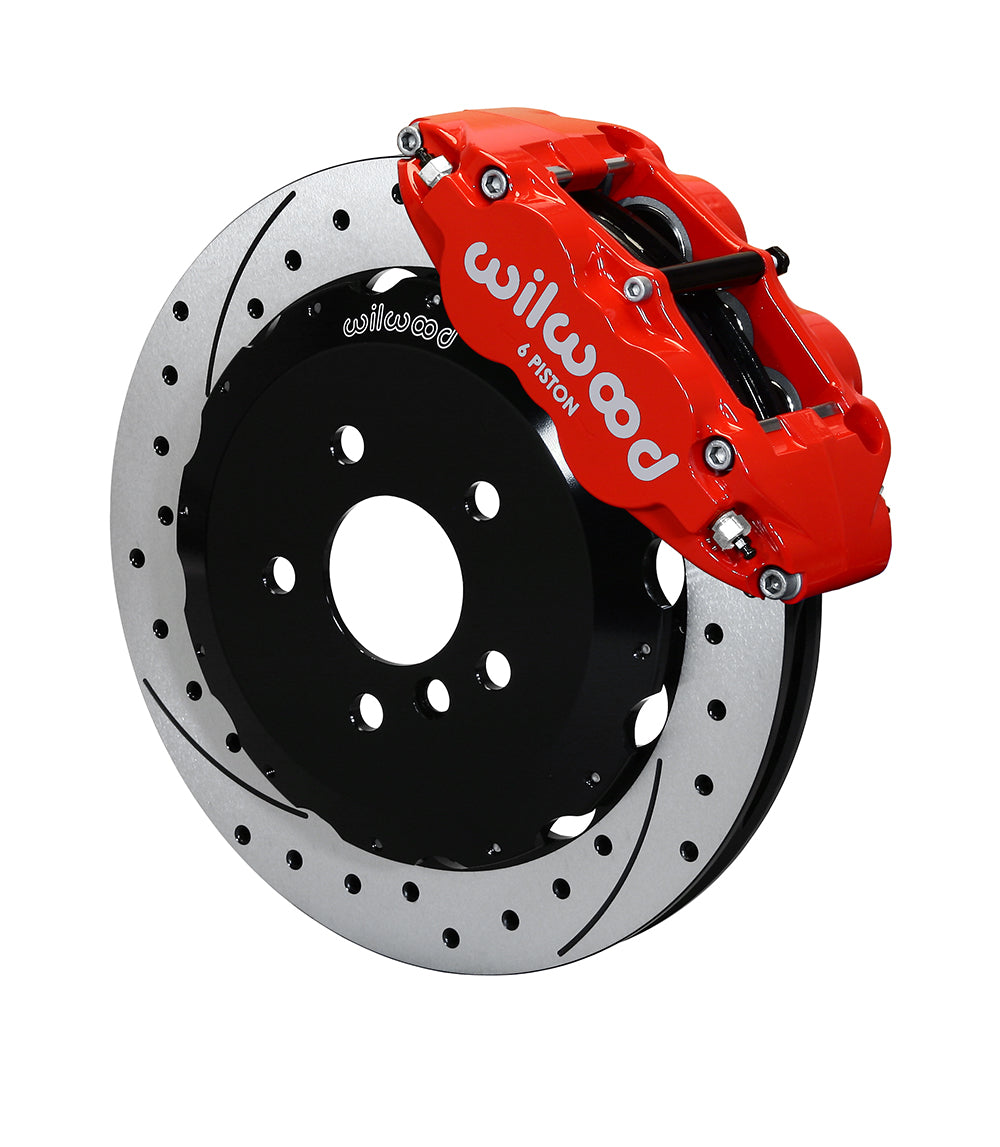

The red SRP package supplies six-piston service calipers and 12.88-inch drilled-and-slotted rings for the specified five-lug Mini. Aluminum hats, BP-10 pads, brackets and the front hose set are included; replacement hubs are not. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number — 140-15214-DR.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 0.600 in.
• Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Hat wheel-stud clearance diameter — 0.590 in; 14.99 mm.
• Wheel bolt circle — 5 x 4.41 in; 5 x 112.01 mm.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Red; Red Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 12.88 in; 327.15 mm; thickness 1.10 in; 27.94 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): 220-8491 (20.00 in); Front line-kit reference: 220-8491.
• Hydraulic package contents — brake lines included: Yes; master cylinder included: No; booster included: No.
• Mechanical package contents — no separate hubs included; mounting hardware included: Yes; spindles included: No.

Fitment & Compatibility

Verify year, trim and body style against the individual Mini entries, which extend through selected 2017 models. Match the 5 x 112 mm hub interface and follow DS1128 for installation. Compare the 17-inch clearance profile and ensure the included hoses move freely through steering and suspension travel.

The application list names Cooper. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
