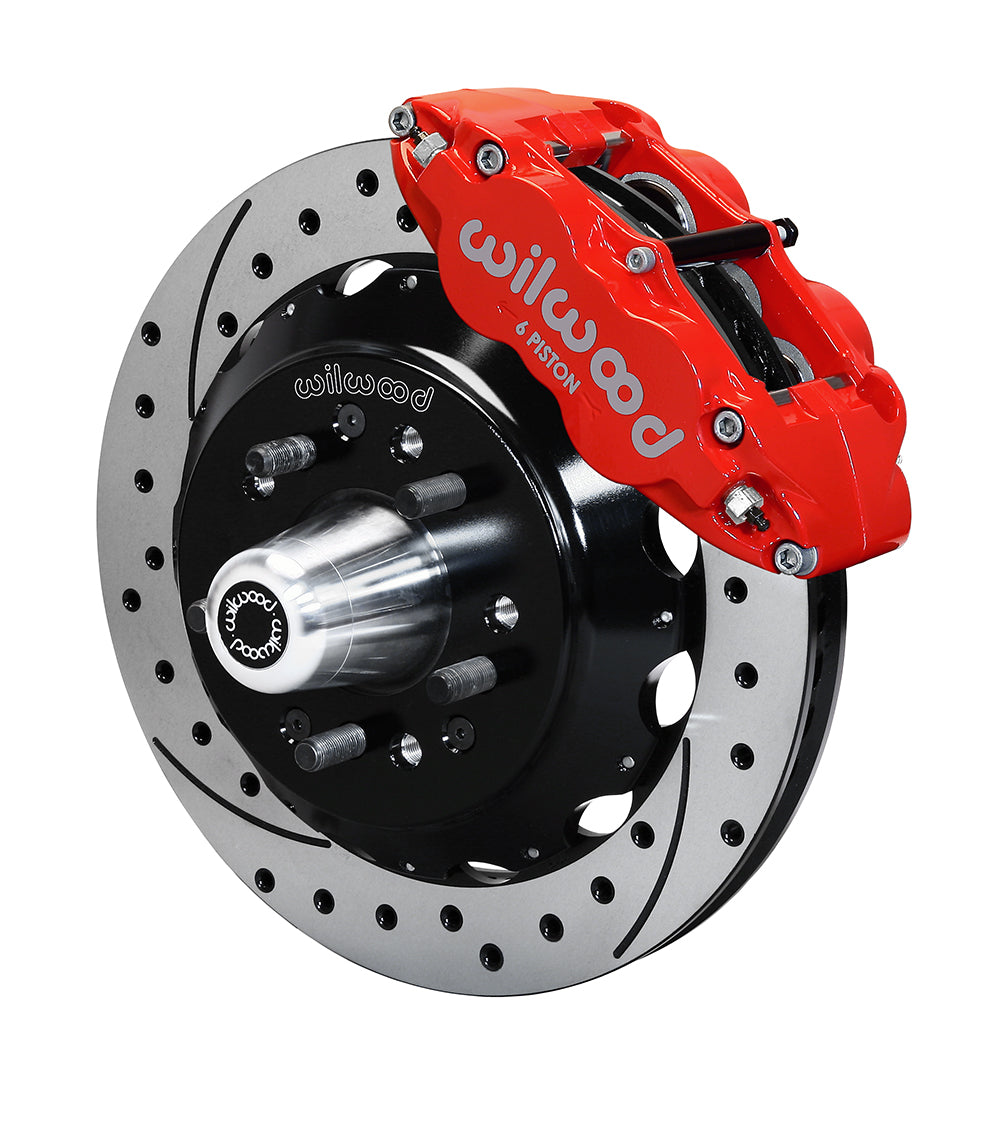

Wilwood Red Superlite Front Assembly with Drilled 14 x 1.10-Inch Rotors, Hats and Hubs for Selected 1965–1972 C-Body Drum Spindles

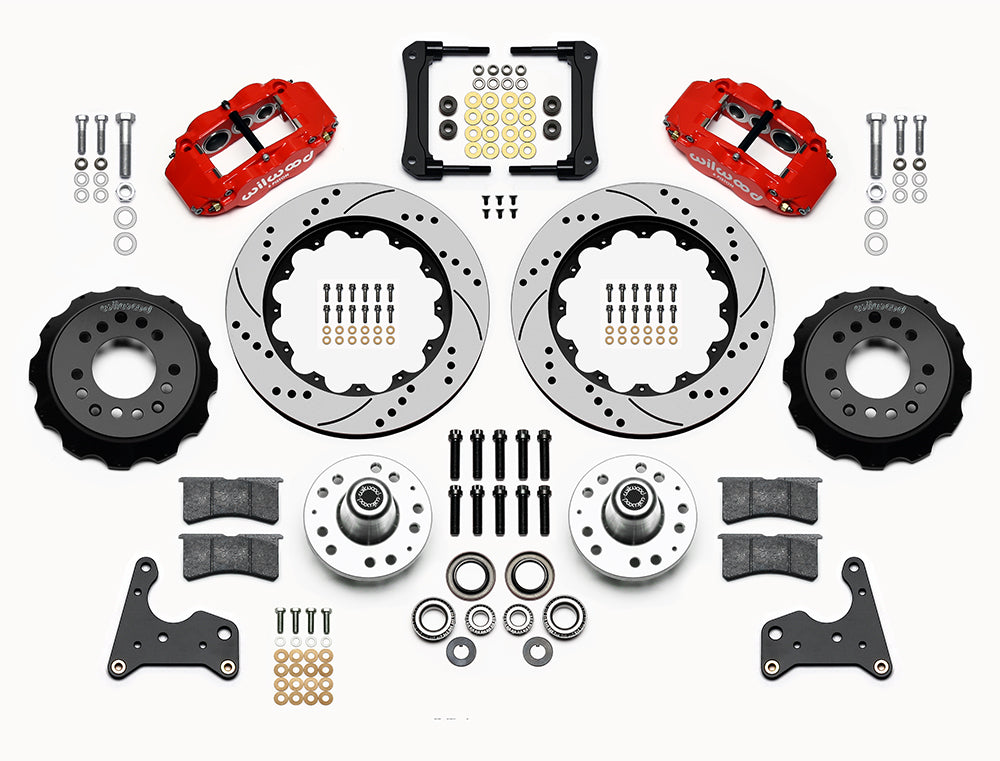

Red Superlite 6R calipers supply the service braking in this 14-inch C-body configuration. SRP rings, aluminum hats, separate hubs, bearing parts and BP-10 pads are provided as a matched front package for the stated spindle geometry. Wilwood Engineering was founded by Bill Wood in 1977 and is based in Camarillo, California. The company designs and manufactures disc brake systems and components for motorsport, street-performance and specialized applications. Its range includes calipers, brake rotors, master cylinders, valves, fittings and brake lines, with each part selected to match the complete brake system.

Technical Details

• Manufacturer part number: 140-15200-DR.
• Stated OE wheel-hub offset: -.12 in; verify the documented spindle and reference geometry.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 14.00 in; 355.6 mm; thickness 1.10 in; 27.94 mm.
• Rotor construction and friction surface: Spec-37 Iron; Vented; SRP Drilled & Slotted; surface finish: Black Electro Coat.
• Service caliper assembly: Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.
• Nominal minimum wheel diameter: 18 in; 457.2 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.380 in.

Fitment & Compatibility

Use the individual vehicle application and DS1136 to establish suitability. Account for the -0.12-inch inward wheel-hub shift, chosen bolt circle and complete 18-inch wheel clearance. The original drum spindle is required, and front hydraulic hoses are purchased separately.

Models represented in the detailed applications: 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
