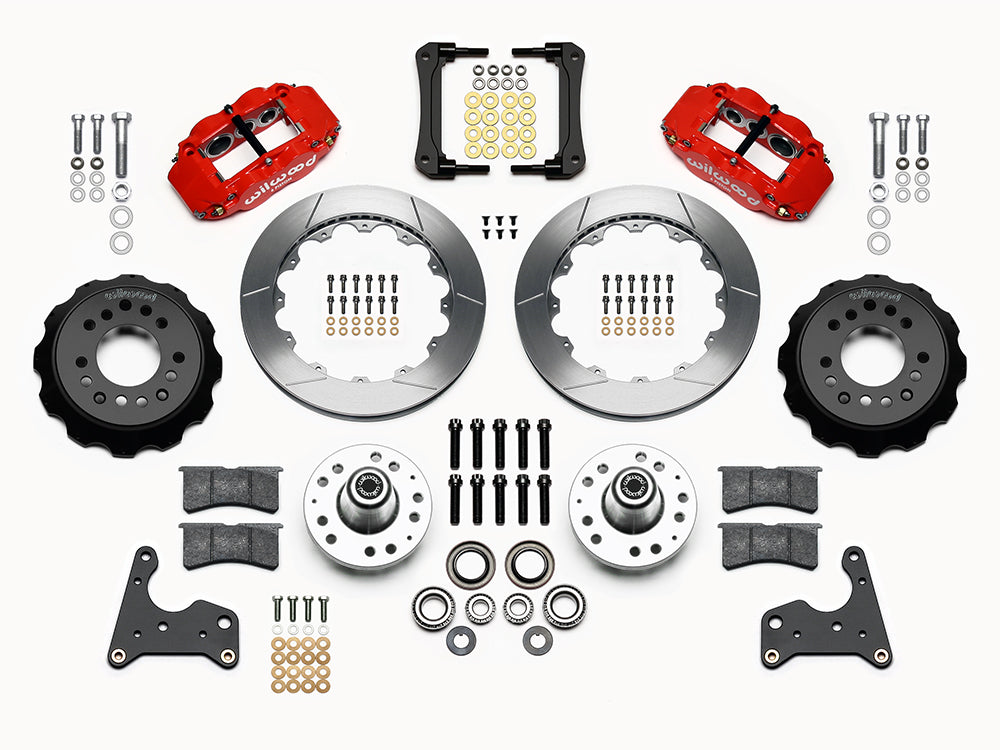

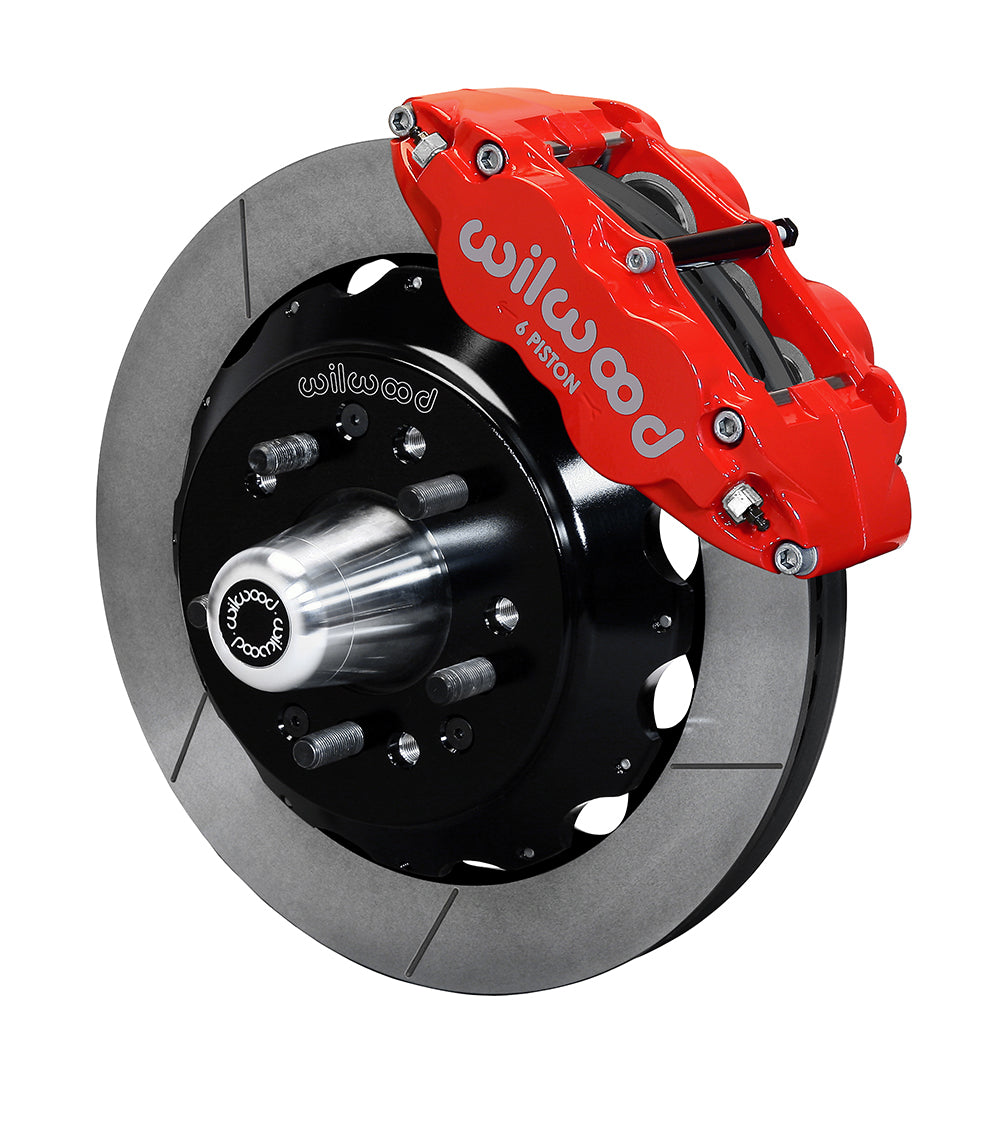

Wilwood GT Front Rotor and Hub Kit with Red Six-Piston Superlite Calipers, Specified 1965–1972 Mopar C-Body Drum Spindles

The red GT option pairs slotted 12.88-inch Spec-37 rings with BP-10-equipped Superlite calipers. Aluminum hats and separate hubs carry the rotor and wheel interfaces for the documented C-body front suspension. Founded by Bill Wood in 1977, Camarillo, California-based Wilwood Engineering designs and manufactures disc brake systems plus their individual components. Its work serves specialized applications, motorsport and street-performance vehicles, with a range of calipers, brake rotors, master cylinders, valves, fittings and brake lines. A compatible complete system governs the selection of each part.

Technical Details

• Manufacturer part number: 140-15199-R.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor dimensions: outside diameter 12.88 in; 327.15 mm; thickness 1.10 in; 27.94 mm.
• Rotor construction and friction surface: Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Service caliper assembly: Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Supplied pad compound: BP-10.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Wheel-stud thread: 1/2-20.
• Nominal minimum wheel diameter: 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Rotor mounting hat: aluminum; Black E-Coat; hat offset 1.380 in.
• Stated OE wheel-hub offset: -.12 in; verify the documented spindle and reference geometry.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.

Fitment & Compatibility

Confirm the original drum-spindle requirement and exact vehicle listing below. DS1135 is the assembly guide; verify the specified inward hub offset for this configuration. Check the 17-inch wheel profile and provide suitable hydraulic lines separately.

Models represented in the detailed applications: 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Each is subject to its individual year, trim and brake/suspension condition. Use the fitment table below to confirm year, model, trim and brake or suspension options.

PMB Performance has over 20 years of experience with parts and fitment details. Contact us with the original vehicle specification and any changes to its braking or suspension system.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
