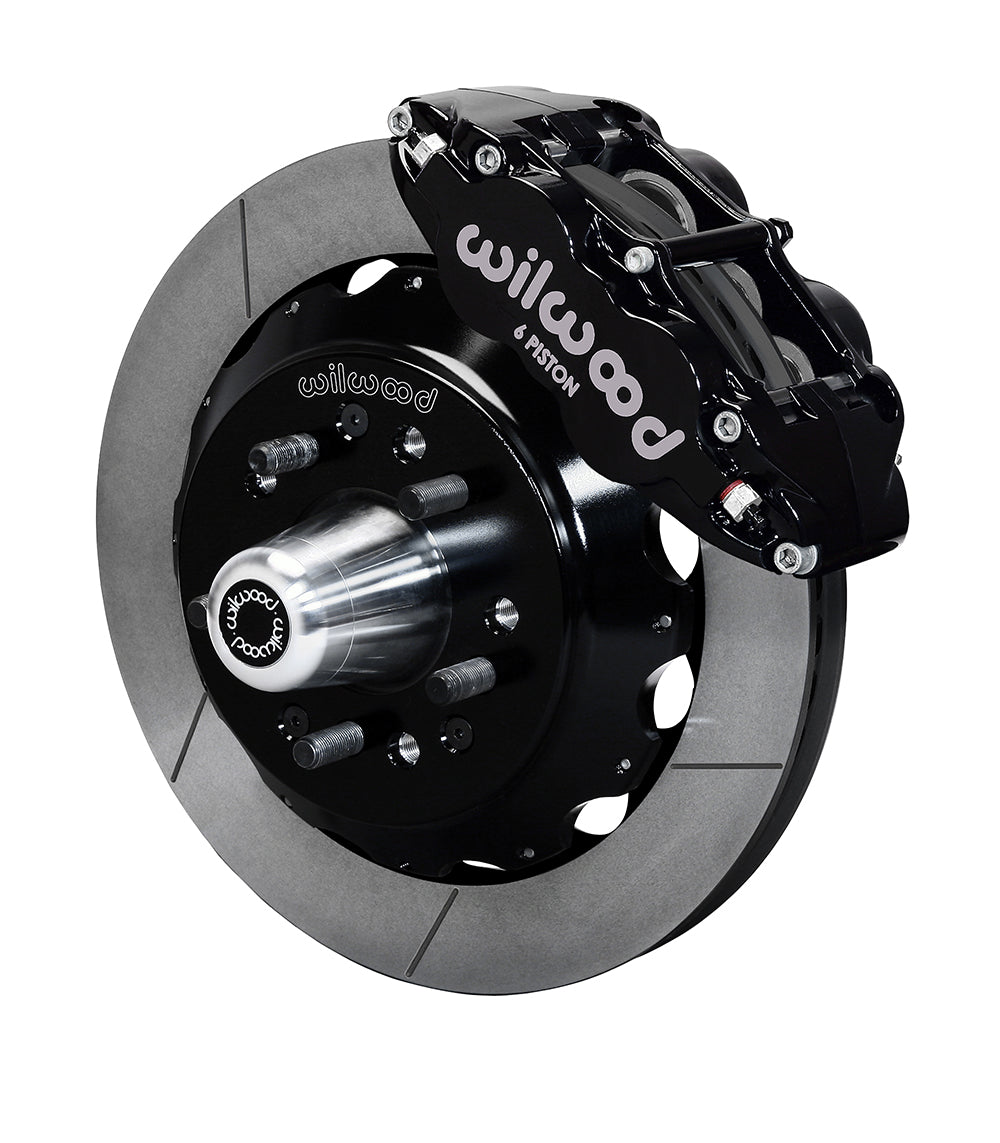

Wilwood Superlite 6R Front Brake Kit for Specified 1965–1972 C-Body Drum Spindles, Black Calipers, 12.88-Inch GT Rotors, Hats and Hubs

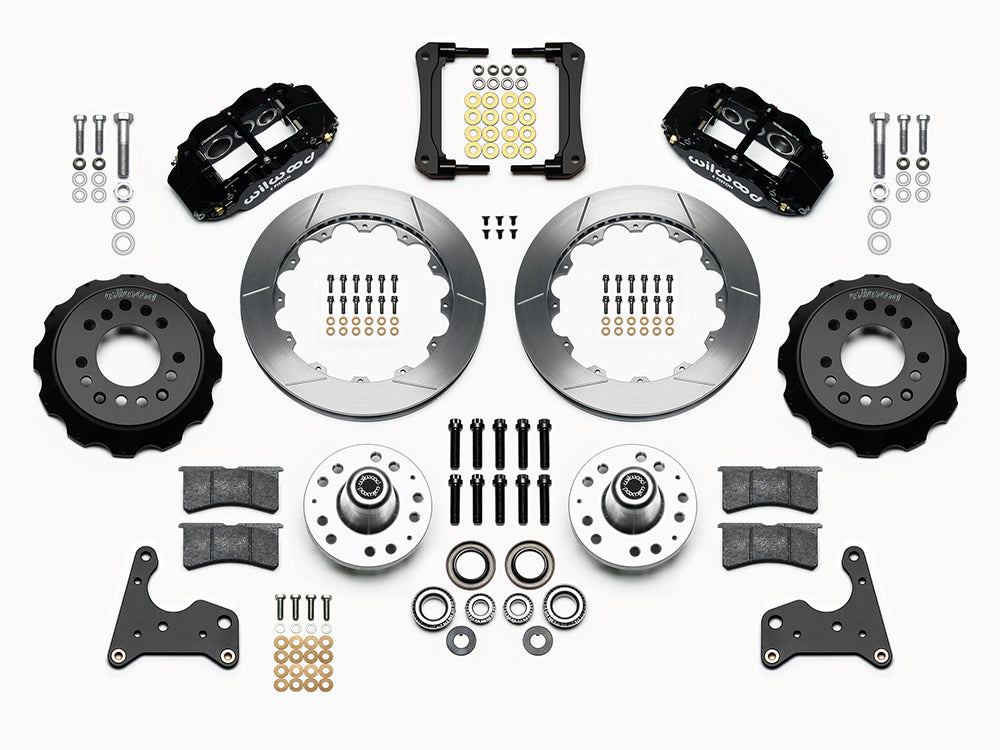

This C-body front kit uses black Superlite 6R calipers with 12.88-inch Spec-37 rotor rings and aluminum hats. Separate aluminum hubs, BP-10 pads and mounting parts are included for the specified factory drum-spindle configuration. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number — 140-15199.
• Supplied pad compound — BP-10.
• Caliper color, finish and hydraulic inlet — Black; Black Powder Coat; inlet 1/8-27 NPT.
• Service caliper assembly — Superlite 6R; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Radial mounting.
• Rotor construction and friction surface — Spec-37 Iron; Vented; GT Slotted; surface finish: Black Electro Coat.
• Rotor dimensions — outside diameter 12.88 in; 327.15 mm; thickness 1.10 in; 27.94 mm.
• Brake function and supply — Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Flexline specification — Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Hydraulic package contents — brake lines included: No; master cylinder included: No; booster included: No.
• Mechanical package contents — separate hubs included; mounting hardware included: Yes; spindles included: No.
• Stated OE wheel-hub offset — -.12 in; verify the documented spindle and reference geometry.
• Rotor mounting hat — aluminum; Black E-Coat; hat offset 1.380 in.
• Nominal minimum wheel diameter — 17 in; 431.8 mm; verify full spoke and barrel clearance using the kit drawing.
• Wheel-stud thread — 1/2-20.
• Wheel bolt circle — 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.

Fitment & Compatibility

Match the exact C-body model and original front drum spindle below. DS1135 gives the correct assembly. Unlike the smaller adapter-plate packages, this layout has a stated -0.12-inch inward hub shift. Verify wheel pattern, full 17-inch clearance and separately selected flexlines.

The application list names 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. Verify the particular year and suspension/brake option for each model. Use the fitment table below to confirm year, model, trim and brake or suspension options.

With more than 20 years of parts experience, PMB Performance can help review the specified brake arrangement. Include the vehicle year and details of any hub, spindle or suspension changes.

Check the Installation instructions for the full assembly and wheel-clearance requirements.
