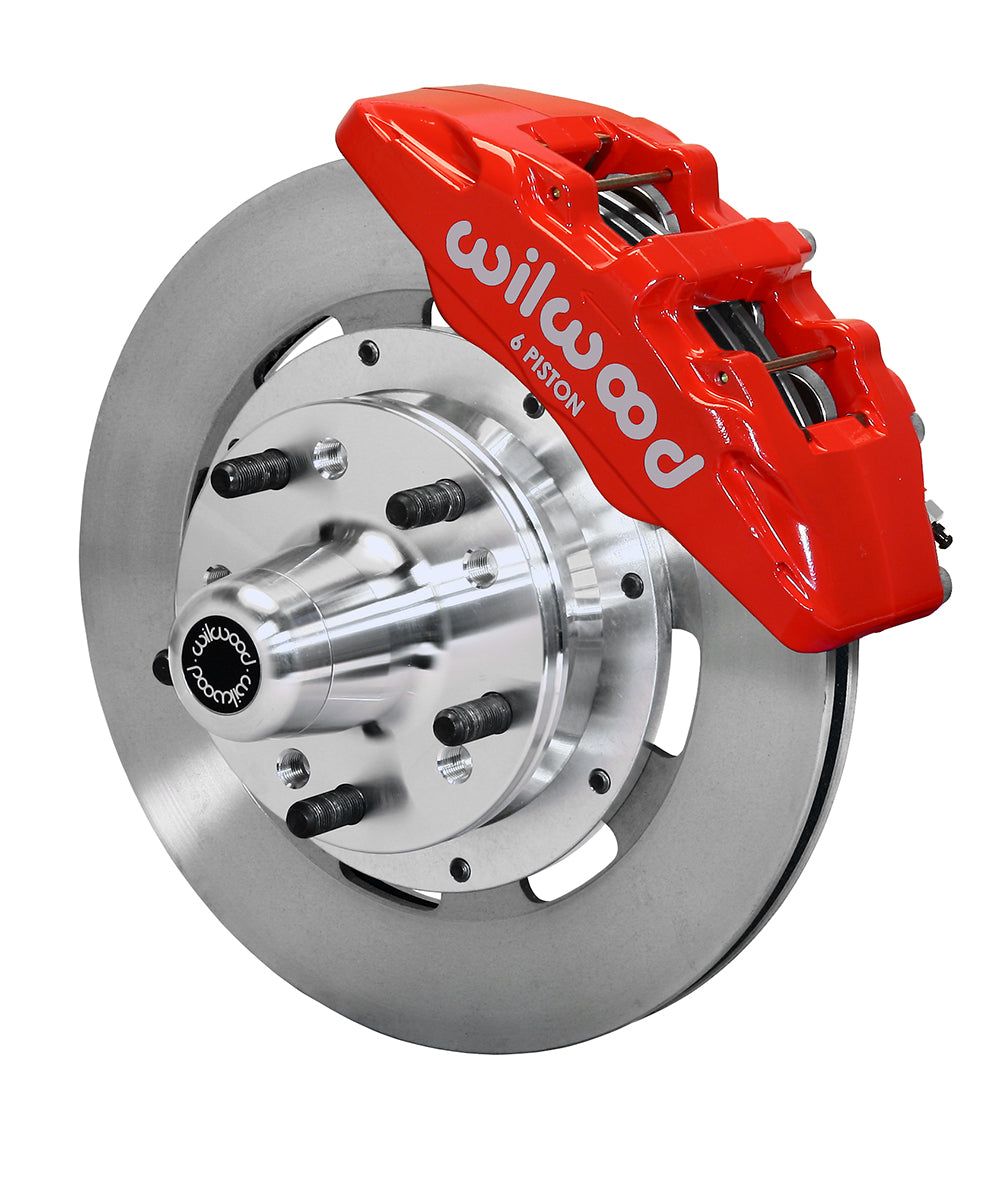

Wilwood C-Body Front Conversion with Red Dynapro Calipers, Plain 12.19 x 0.81-Inch Rotors, Aluminum Hubs and Adapter Plates

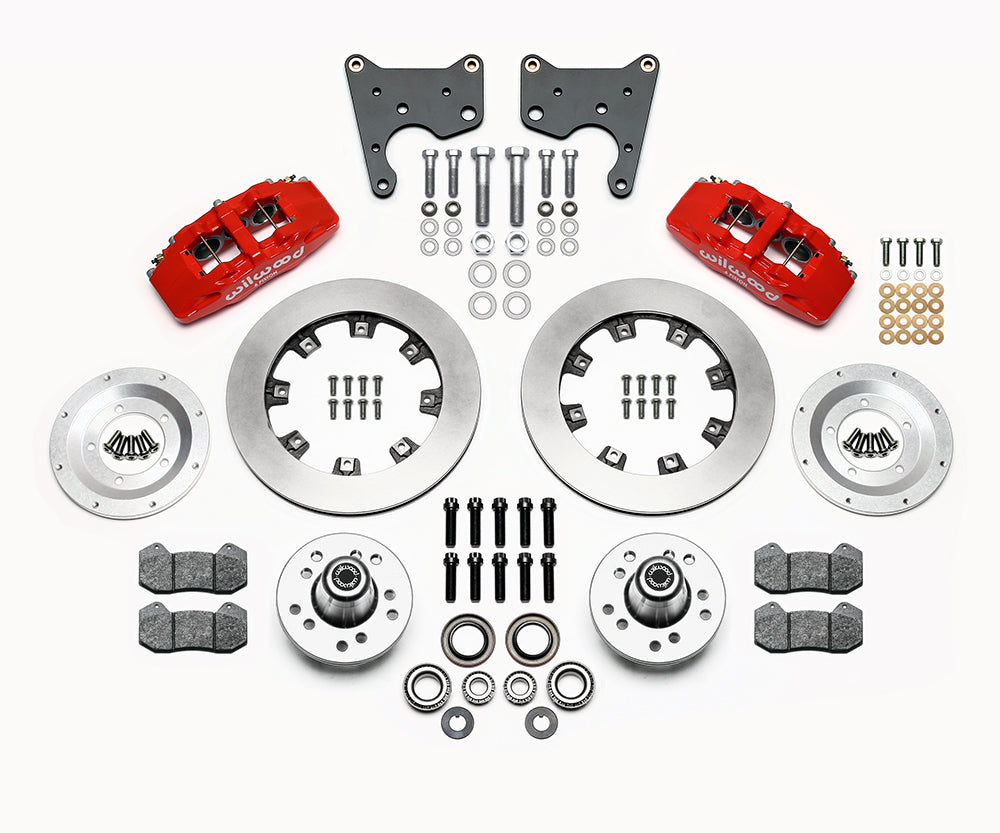

Red Dynapro 6 service calipers and plain iron discs equip this drum-spindle conversion. It supplies front hubs, bearing parts and rotor adapter plates together with BP-10 pads, keeping the hub assembly separate from the replaceable rotor ring. Wilwood Engineering, established by Bill Wood in 1977 and based today in Camarillo, California, manufactures and designs disc brake systems and their components. The product range covers brake rotors, calipers, valves, master cylinders, brake lines and fittings for motorsport, specialized and street-performance applications. Suitability depends on matching each component to the entire brake system.

Technical Details

• Manufacturer part number: 140-15198-R.
• Flexline specification: Line kit included (manufacturer): None; Front line-kit reference: 220-8307.
• Rotor dimensions: outside diameter 12.19 in; 309.63 mm; thickness 0.81 in; 20.57 mm.
• Service caliper assembly: Dynapro 6; 6 pistons in each caliper; Stainless pistons; Forged Aluminium body; Lug mounting.
• Supplied pad compound: BP-10.
• Wheel-stud thread: 1/2-20.
• Rotor attachment: separate rotor adapter plates and aluminum wheel hubs; no separate rotor hats.
• Mechanical package contents: separate hubs included; mounting hardware included: Yes; spindles included: No.
• Hydraulic package contents: brake lines included: No; master cylinder included: No; booster included: No.
• Brake function and supply: Front Brake Kits - Street Performance; Disc braking; front axle; Sold as a kit.
• Rotor construction and friction surface: Iron; Vented; Plain Face; surface finish: Plain.
• Caliper color, finish and hydraulic inlet: Red; Red Powder Coat; inlet 1/8-27 NPT.
• Wheel bolt circle: 5 x 4.5 in; 5 x 114.3 mm; 5 x 4.75 in; 5 x 120.65 mm.
• Nominal minimum wheel diameter: 15 in; 381 mm; verify full spoke and barrel clearance using the kit drawing.
• Stated OE wheel-hub offset: +.04 in; verify the documented spindle and reference geometry.

Fitment & Compatibility

Fitment remains conditional on the exact Chrysler, Dodge or Plymouth application and its factory drum spindle. Consult DS1134, check the +0.04-inch hub shift and verify the complete 15-inch wheel drawing. Choose compatible front flexlines for the installed chassis.

Check the application-specific restrictions for 300, New Yorker, Newport, Town & Country, Monaco, Polara, Fury, Fury II, Fury III, VIP, Fury I, Gran Fury. A shared model name does not replace the exact year and brake/suspension configuration. Use the fitment table below to confirm year, model, trim and brake or suspension options.

For a fitment check, give PMB Performance the vehicle details and the actual brake and suspension hardware. Our team has over 20 years of experience working through parts compatibility.

Check the Installation instructions for the full assembly and wheel-clearance requirements.

Manufacturer Warning

Applicable to brake pads only. WARNING: This product can expose you to chemicals including Arsenic, Cadmium, Chromium (Hexavalent compounds), Lead, Nickel, Cobalt and Antimony Trioxide which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.p65warnings.ca.gov.
